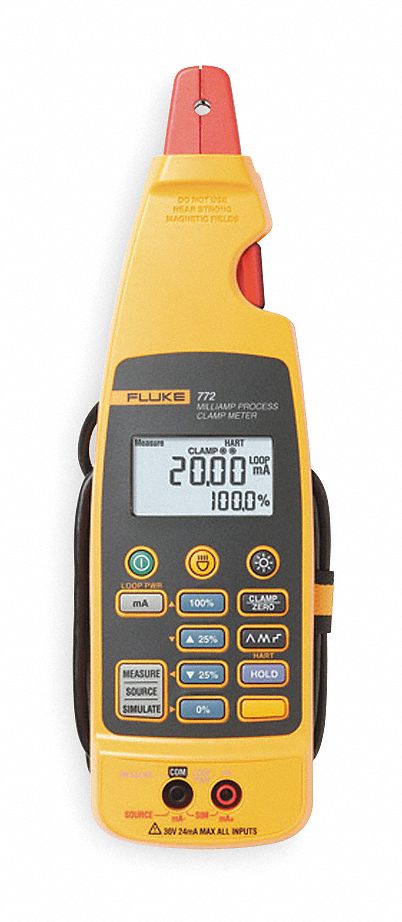

FLUKE Digital Clamp On Ammeter, Dual Backlit

Digital Clamp On Ammeter, AC Response Average, 99.9mA Max. AC Amps, 99.9mA Max. DC Amps, 30 Max. AC Volts, 30 Max. DC VoltsJaw Capacity 11/64 In., Battery Type AADisplay Dual Backlit, Temp. Range -10 Degrees to 50 Degrees C, Counts 2400 or 99.9Auto Ranging Yes, Data Hold YesStandards EN61326-1, Includes Test Leads, Detachable Clip, Mini Hook Test Leads, Instruction Sheet, Hanging Tool with Hook, Loop Strap, Manufacturers Warranty Length 3 Years for Electronics, 1 Year for Clamp and Cable
  • Grainger Item #4FFG4
    Price (ea.)$913.00
    BrandFLUKE
    Mfr. Model #FLUKE-772
    UNSPSC #41113601
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)2.45
    Availability Typically in Stock
    Catalog Page No.825
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDigital Clamp On Ammeter
AC ResponseAverage
Max. AC Amps99.9mA
Max. DC Amps99.9mA
Max. AC Volts30
Max. DC Volts30
Jaw Capacity11/64"
Battery TypeAA
DisplayDual Backlit
Temp. Range-10 Degrees to 50 Degrees C
Counts2400 or 99.9
Auto RangingYes
Data HoldYes
AC Current Accuracy+/-2% + 5 Digits
Operating Temp.14 to 122 Degrees F
StandardsEN61326-1
Special FeaturesSource and Simulate 0 to 24 mA DC, Non Contact DC mA
IncludesTest Leads, Detachable Clip, Mini Hook Test Leads, Instruction Sheet, Hanging Tool with Hook, Loop Strap
Manufacturers Warranty Length3 Years for Electronics, 1 Year for Clamp and Cable
