FLOWLINE Vibration Level Switch, Universal, Ryton

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vibration Level Switch, Point Level Sensor, Universal Orientation, Accuracy +/- 1mm in Water, Repeatability +/- 0.5mm in Water, Ryton, Input Voltage 12-36 VDC, Contact Type SPST Relay, Contact Rating 60VA, 1A max., Output 4 or 20 mA or relay, Temp. Range F: -40 Degrees to 176 Degrees C: -40 Degrees to 80 Degrees , Max. Pressure 150 psi @ 25 Degrees C, 3/4 In. NPT Mounting, Sensor Rating General Purpose, Cable Type 4-conductor, PP, Cable Length 10', Standards CE, Length 4.7, Width 1.05

Grainger Item #	12U435
Price (ea.)	$341.75
Brand	FLOWLINE
Mfr. Model #	LZ12-1405
UNSPSC #	41111938
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.65
Availability	Typically in Stock
Catalog Page No.	4113
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

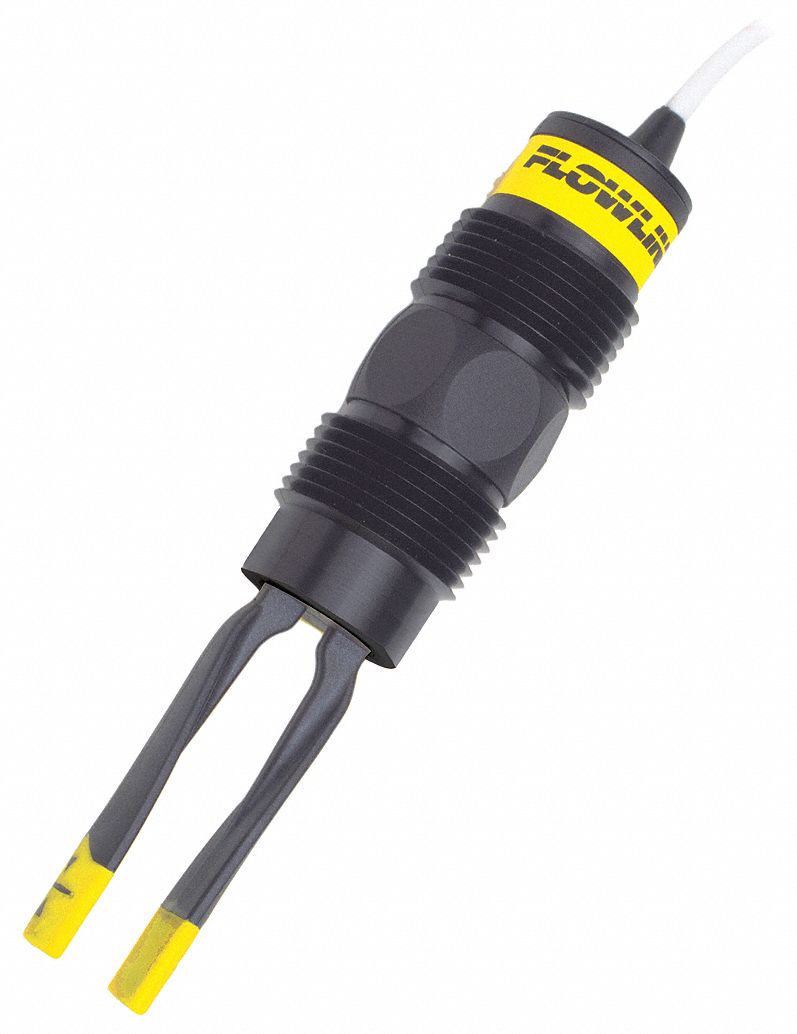

Vibration Level Switch, Universal, Ryton

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vibration Level Switch
Type		Point Level Sensor
Orientation		Universal
Accuracy		+/- 1mm in Water
Repeatability		+/- 0.5mm in Water
Material		Ryton
Input Voltage		12-36 VDC
Contact Type		SPST Relay
Contact Rating		60VA, 1A max.
Output		4 or 20 mA or relay
Temp. Range		F: -40 Degrees to 176 Degrees C: -40 Degrees to 80 Degrees
Max. Pressure		150 psi @ 25 Degrees C
Mounting		3/4" NPT
Sensor Rating		General Purpose
Cable Type		4-conductor, PP
Cable Length		10'
Standards		CE
Length		4.7
Width		1.05
Height		1.05
