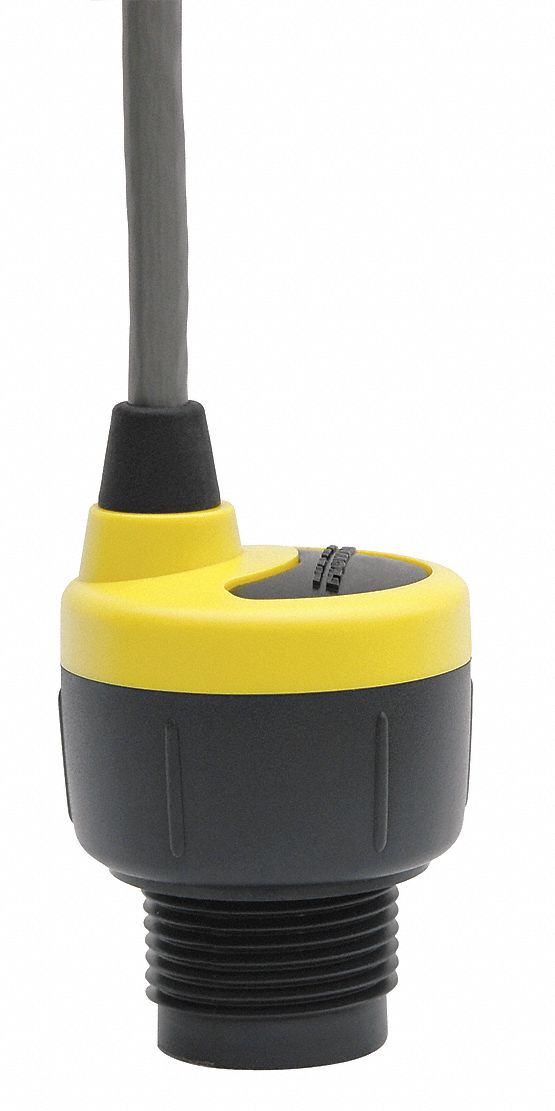

FLOWLINE Ultrasonic Level Sensor, 49.2 In

Ultrasonic Level Sensor, Level Measurement, Switch & Controller, Classification General Purpose, Range 49.2 In., Accuracy 0.125 In., Resolution 0.019 In., Dead Band 2 In., Beam Width 2 In., Configuration WebCal, Input Voltage 24 VDC (loop), Output 4-20 mA & 4 SPST Relays, Temp. Range 20 to 140 Degrees F, Max. Pressure 30 psi, Enclosure Rating Type 6P, Enclosure Material Polycarbonate, PVDF, Gasket Material Viton, Mounting 1 In. NPT, Display None, Standards cFMus, CE, RoHS, Length 2 In.
  • Grainger Item #12U415
    Price (ea.)$435.25
    BrandFLOWLINE
    Mfr. Model #DL14-01
    UNSPSC #41111938
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)0.5
    Availability Typically in Stock
    Catalog Page No.4113
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemNoncontact Ultrasonic Level Sensor
ClassificationGeneral Purpose
Range49.2"
Accuracy0.125"
Resolution0.019"
Dead Band2"
Beam Width2"
ConfigurationWebCal
Input Voltage24 VDC (loop)
Output4 to 20mA and (4) SPST Relays
Temp. Range20 to 140 Degrees F
Max. Pressure30 psi
Enclosure RatingType 6P
Enclosure MaterialPolycarbonate
MaterialPVDF
Gasket MaterialViton
Mounting1" NPT
DisplayNone
StandardscFMus, CE, RoHS
Overall Length2"
Width2"
Height3.2"

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Ultrasonic Level Sensor, 49.2 In" /> <div id="BVRRContentValidationID_12U415"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-24" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Ultrasonic Level Sensor, 49.2 In" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_12U415"><div id='13513478' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Ultrasonic Level Sensor, 49.2 In" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">sparktrician</span><span itemprop="description"> Easy to program with free WebCal software - very versatile wiring - works extremely well</span> December 19, 2012<meta itemprop="datePublished" content="2012-12-19" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_12U415').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

Optional Accessories

More Accessories

Brand:

FLOWLINE

Grainger Item #:

12U420

Price (ea.):

$59.85
