Pumps
>
Pump Controls
>
Optical Liquid Sensors

FLOWLINE Leak Detection Switch, Interstitial, Horiz

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Leak Detection Switch, Interstitial, Horizontal Orientation, Contact Type 30 Watts, 240 VAC (0.14A resistive), 120 VAC (0.28A resistive), 120 VDC (0.07A resistive), 24 VDC (0.28A resistive), , Input Voltage 240 VAC/120 VDC max., Output SPST Reed, Temp. Range -40 to 221 Degrees F, Max. Pressure 50 psi, Foamed Polypropylene, Valox 420, Stainless Steel, Wire Type 2 conductor, #22 AWG, Jacket Material Halar Jacket, Standards CE, UL, Length 3.00 In., Width 1.50 In., Height 0.75 In.

Grainger Item #	12U461
Price (ea.)	$226.25
Brand	FLOWLINE
Mfr. Model #	LH29-1001
UNSPSC #	41111938
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.2
Availability	Typically in Stock
Catalog Page No.	4114
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

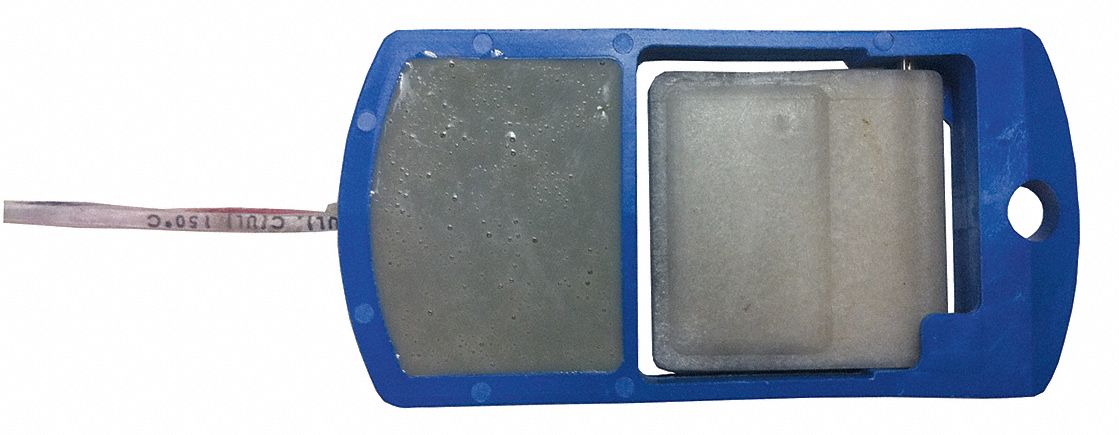

Leak Detection Switch, Interstitial, Horiz

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Leak Detection Switch
Type		Interstitial
Orientation		Horizontal
Contact Type		30 Watts, 240 VAC (0.14A resistive), 120 VAC (0.28A resistive), 120 VDC (0.07A resistive), 24 VDC (0.28A resistive),
Input Voltage		240 VAC/120 VDC max.
Output		SPST Reed
Temp. Range		-40 to 221 Degrees F
Max. Pressure		50 psi
Material		Foamed Polypropylene, Valox 420, Stainless Steel
Wire Type		2 conductor, #22 AWG
Jacket Material		Halar Jacket
Standards		CE, UL
Length		3.00"
Width		1.50"
Height		0.75"
