FLINT & WALLING Pump, 3 HP, 3 Phase, 208-230/460V, 14 Stage

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Multi Stage Booster Pump, ODP, 3 HP, 3 Phase, Voltage 208-230/460, Amps 9.8/4.9, 60 Hz, Stages 14, Inlet/Outlet 1 In FNPT, Max. Pressure 190 PSI, Suction Lift 0 Ft., Max. Liquid Temp. 140 Degrees F, Noryl Impeller, Mechanical Type 21 Seal, Length 30-5/8 In., Width 6-1/2 In., Height 9 In.

Grainger Item #	22W737
Price (ea.)	$1,057.00
Brand	FLINT & WALLING
Mfr. Model #	PB2714S303
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	49.8
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

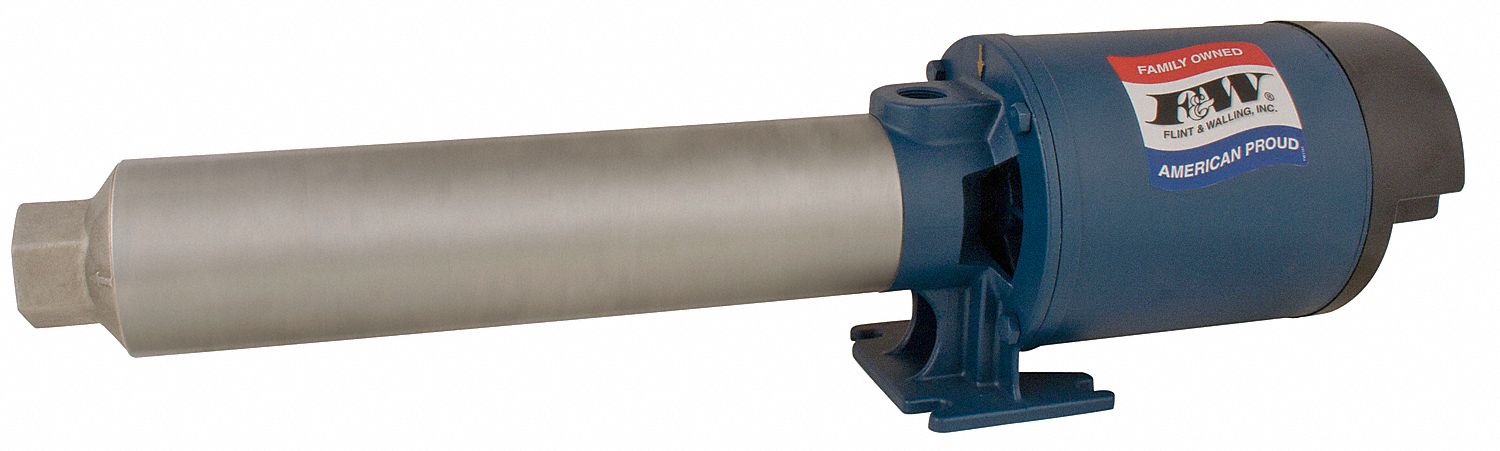

Pump, 3 HP, 3 Phase, 208-230/460V, 14 Stage

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Multi Stage Booster Pump
Type		Standard
HP		3
Phase		3
Voltage		208-230/460
Amps		9.8/4.9
Inlet/Outlet NPTF (In.)		1" FNPT
Inlet/Outlet		1" FNPT
Stages		14
Max. Pressure (PSI)		190
Housing Material		304 SS Shell, 304 SS Suction And Discharge
Impeller Material		Noryl
Impeller Type		Closed
Max. Case Pressure (PSI)		300
Max. Dia. Solids (In.)		Clear Water
Max. Fluid Viscosity		Clear Water
Max. Liquid Temp. (F)		140 Degrees
Motor Enclosure		ODP
Seal Type		Mechanical Type 21
Seal Material		Stainless Steel, Viton and Carbon/Ceramic
Wetted Materials		Noryl,304 SS,316 SS,Carbon,Ceramic,Viton,BZ
Motor RPM		3450
Motor Type		3-Phase
NEMA/IEC Frame		NEMA 56J
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Pressure Boosting, Pressure Cleaning, Spray or Mist Systems, Reverse Osmosis, Water Circulation
Agency Compliance		CSA, CUS, UL Listed
Manufacturers Warranty Length		1 Year
Compliance		Certified For Use in Potable Water Applications in CA and VT
Includes		Kit/Motor Cover Vertical
Length (In.)		30-5/8
Width (In.)		6-1/2
Height (In.)		9
Bearing Type		Ball
Best Efficiency GPM @ Head (Ft.)		19 @ 358
Best Efficiency Range GPM @ Head (Ft.)		25-13 GPM @ 254-415 Ft
Diffuser Material		Noryl
Duty		Continuous
GPM @ 40 PSI		32.2
GPM @ 60 PSI		30.6
GPM @ 80 PSI		28.9
GPM @ 100 PSI		27
GPM @ 120 PSI		24.8
GPM @ 140 PSI		22.2
GPM @ 160 PSI		18.4
GPM @ 180 PSI		12.2
Hz		60
Motor Ambient Temp. Rating		65 Degrees C
Plug or Connector Type		Direct Wire
Seal Application		Clear Water
Service Factor		1
Shaft Material		303 SS Shaft, 316 SS Coupling
Suction Lift (Ft.)		0
