Booster Pump, ODP, 1-1/2 HP, 1 Phase, Voltage 115/230, Amps 21/10.5, 60 Hz, Stages 2, Inlet (In.) 1-1/2 FNPT, Outlet (In.) 1-1/4 FNPT, Max. Pressure 69 PSI, Suction Lift 25 Ft., Max. Liquid Temp. 200 Degrees F, Closed Impeller, Mechanical Seal, Length 19 In., Width 7 In., Height 8-15/16 In.

Grainger Item #	22W753
Price (ea.)	$984.00
Brand	FLINT & WALLING
Mfr. Model #	CJ101B151AB
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	70.13
Availability	Item ships within 7 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

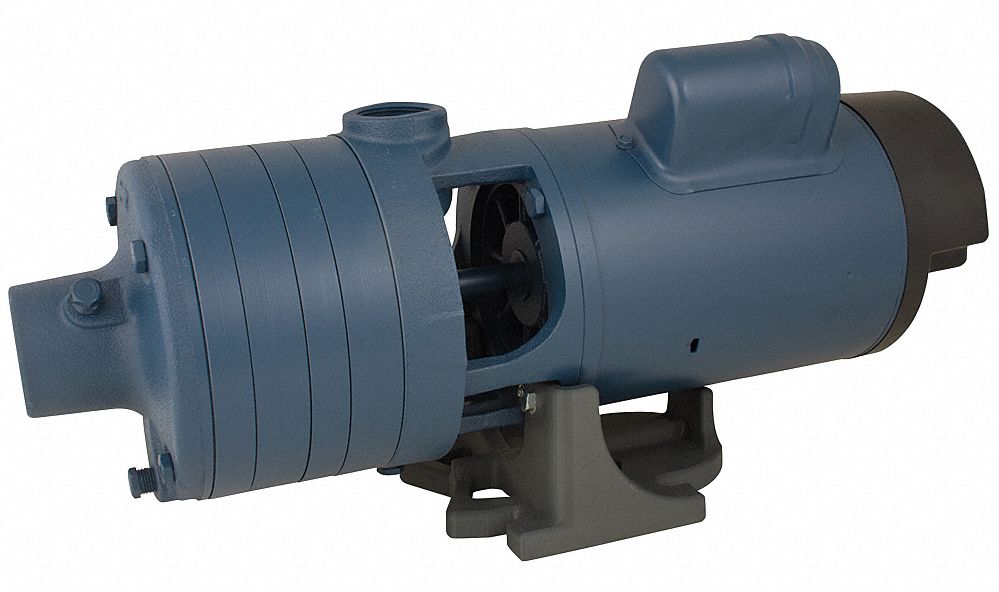

Booster Pump, 1-1/2 HP, 1-Phase, 115/230V

Enlarge Image

Item		Booster Pump
Motor Enclosure		ODP
Housing Material		Cast Iron
HP		1-1/2
Phase		1
Voltage		115/230
Amps		21/10.5
Hz		60
Inlet (In.)		1-1/2 FNPT
Outlet (In.)		1-1/4 FNPT
GPM @ 25 PSI		44
GPM @ 30 PSI		40
GPM @ 35 PSI		37
GPM @ 40 PSI		35
GPM @ 50 PSI		28
GPM @ 60 PSI		19
Max. Pressure (PSI)		69
Suction Lift (Ft.)		25
Max. Case Pressure (PSI)		160
Best Efficiency GPM @ Head (Ft.)		25 @ 130
Best Efficiency Range GPM @ Head (Ft.)		35-15 GPM @ 96-146 Ft
Motor RPM		3450
Motor Type		ODP
Duty		Continuous
Wetted Materials		Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
Impeller Material		Low Lead Brass
Impeller Type		Closed
Diffuser Material		Cast Iron
Seal Material		Stainless Steel, Buna N and Carbon/Silicon Carbide
Seal Type		Mechanical
Shaft Material		Stainless Steel
Seal Application		Water
Bearing Type		Ball
Max. Liquid Temp. (F)		200 Degrees
Min. Inlet Flow Required		2 GPM
Max. Inlet Pressure (PSI)		31
Stages		2
Max. Fluid Viscosity		Clear Water
Plug or Connector Type		Direct Wire
Length (In.)		19
Width (In.)		7
Height (In.)		8-15/16
Motor Ambient Temp. Rating		65 Degrees C/149 Degrees F
Service Factor		1.3
Max. Working Pressure (PSI)		69
NEMA/IEC Frame		NEMA 56J
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Water Circulation Booster Service Water Transfer
Agency Compliance		CSA, CUS, UL Listed
Manufacturers Warranty Length		1 Year
Includes		1/4" Tap and Plug for Pressure Switch Application, 1/4" Vacuum Tapping, 1/4" Drain Plug
