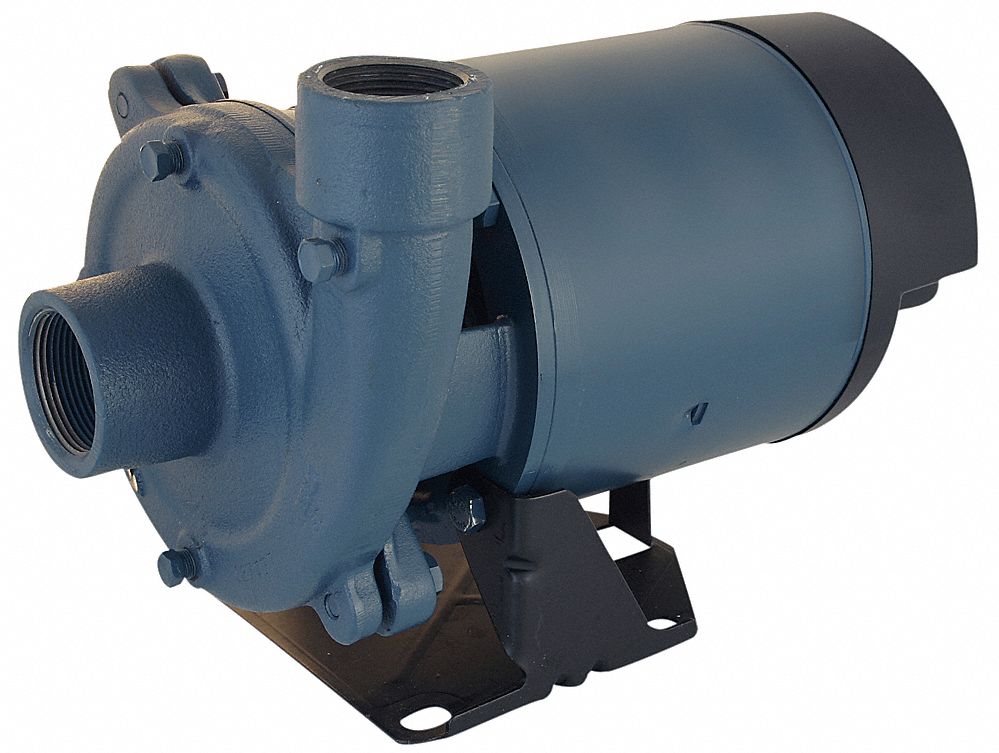

FLINT & WALLING Booster Pump, 1 HP, 1-Phase, 115/230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Booster Pump, ODP, 1 HP, 1 Phase, Voltage 115/230, Amps 18/9, 60 Hz, Stages 1, Inlet (In.) 1-1/2 FNPT, Outlet (In.) 1-1/4 FNPT, Max. Pressure 39 PSI, Suction Lift 25 Ft., Max. Liquid Temp. 200 Degrees F, Closed Impeller, Mechanical Seal, Length 14-1/2 In., Width 8-1/4 In., Height 3-5/16 In.

Grainger Item #	22W742
Price (ea.)	$637.00
Brand	FLINT & WALLING
Mfr. Model #	CJ103101
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	48.05
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Booster Pump
Motor Enclosure		ODP
Housing Material		Cast Iron
HP		1
Phase		1
Voltage		115/230
Amps		18/9
Hz		60
Inlet (In.)		1-1/2 FNPT
Outlet (In.)		1-1/4 FNPT
GPM @ 15 PSI		70
GPM @ 20 PSI		62
GPM @ 25 PSI		52
GPM @ 30 PSI		41
GPM @ 35 PSI		23
Max. Pressure (PSI)		39
Suction Lift (Ft.)		25
Max. Case Pressure (PSI)		100
Best Efficiency GPM @ Head (Ft.)		50 @ 68
Best Efficiency Range GPM @ Head (Ft.)		63-35 GPM @ 51-81 Ft
Motor RPM		3450
Motor Type		ODP
Duty		Continuous
Wetted Materials		Brass,CI,416 SS,Buna N,Carbon,Silicon Carbide,BR
Impeller Material		Brass
Impeller Type		Closed
Diffuser Material		Cast Iron
Seal Material		Stainless Steel, Buna N and Carbon/Silicon Carbide
Seal Type		Mechanical
Shaft Material		Stainless Steel
Seal Application		Water
Bearing Type		Ball
Max. Liquid Temp. (F)		200 Degrees
Min. Inlet Flow Required		2 GPM
Max. Inlet Pressure (PSI)		61
Stages		1
Max. Dia. Solids (In.)		Clear Water
Max. Fluid Viscosity		Clear Water
Plug or Connector Type		Direct Wire
Length (In.)		14-1/2
Width (In.)		8-1/4
Height (In.)		3-5/16
Motor Ambient Temp. Rating		65 Degrees C/149 Degrees F
Service Factor		1.4
Max. Working Pressure (PSI)		39
NEMA/IEC Frame		NEMA 56J
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Water Circulation Booster Service Water Transfer
Agency Compliance		CSA, CUS, UL Listed
Manufacturers Warranty Length		1 Year
Includes		1/4" Drain Plug, Discharge Rotates In 90 Degree Increments
