Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

FINISH THOMPSON Pump, Mag-Drive, 1/4 HP, 2.4 Amp, 35 Max Ft

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Horizantal Mag-Drive Centrifugal, 1/4 HP, Voltage 115, Full Load Amps 2.4, Housing PVDF, Impeller PVDF w/ TFE, Motor Type PSC, Motor Enclosure TEFC, 19.5 GPM @ 1 Ft. of Head, Max. Head 35 Ft., Length 12 7/8 In., Width 6 3/16 In., Height 6 3/8 In., Inlet 1 FNPT In., Outlet 1/2 MNPT In., Temp (F) @ 0 PSIG 220, Operating Pressure 14.2 PSI, Application Sodium Hypochlorite, Acids, Plating Solutions, DI-Water

Grainger Item #	5FZW4
Price (ea.)	$693.00
Brand	FINISH THOMPSON
Mfr. Model #	DB5V-T-M613
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.33
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

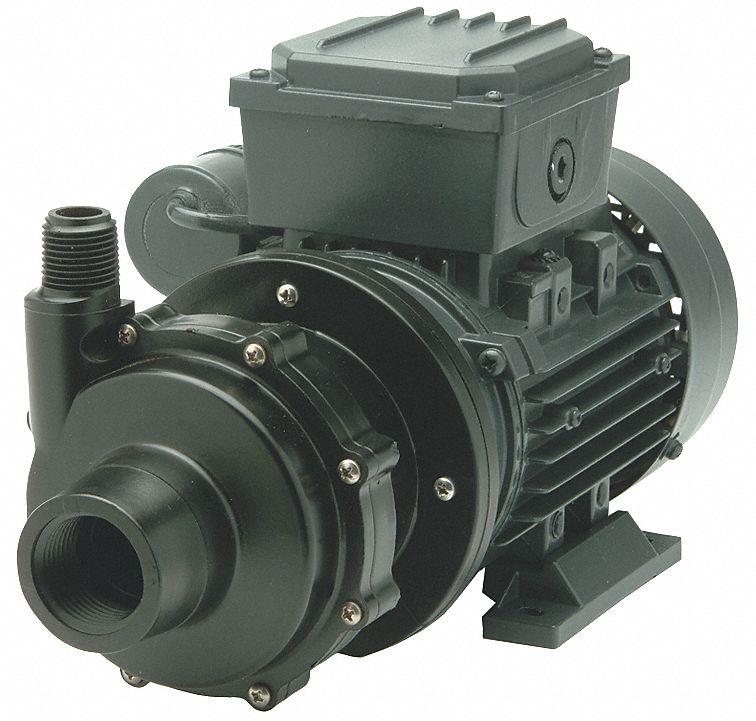

Pump, Mag-Drive, 1/4 HP, 2.4 Amp, 35 Max Ft

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Flooded Suction
HP		1/4
Voltage		115
Full Load Amps		2.4
Motor Type		PSC
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		19.5
GPM of Water @ 3 Ft. of Head		19.5
GPM of Water @ 6 Ft. of Head		19.5
GPM of Water @ 9 Ft. of Head		18.5
GPM of Water @ 15 Ft. of Head		16
GPM of Water @ 18 Ft. of Head		14.5
GPM of Water @ 24 Ft. of Head		12.5
Max. Head (Ft.)		35
Length (In.)		12-7/8
Width (In.)		6-3/16
Height (In.)		6-3/8
Temp (F) @ 0 PSIG		220
Temp (F) @ 10 PSIG		220
Temp (F) @ 20 PSIG		220
Temp (F) @ 30 PSIG		220
Operating Pressure (PSI)		14.2
Housing		PVDF
Impeller		PVDF w/ TFE
Max. Specific Gravity		1.2
Max. Viscosity		50 CPS
Mounting		Close Coupled
Bearings		Thrust & Radial
Design		Mag-Drive
Gasket		Fluoroelastomer
Series		DB5
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Sodium Hypochlorite, Acids, Plating Solutions, DI-Water
