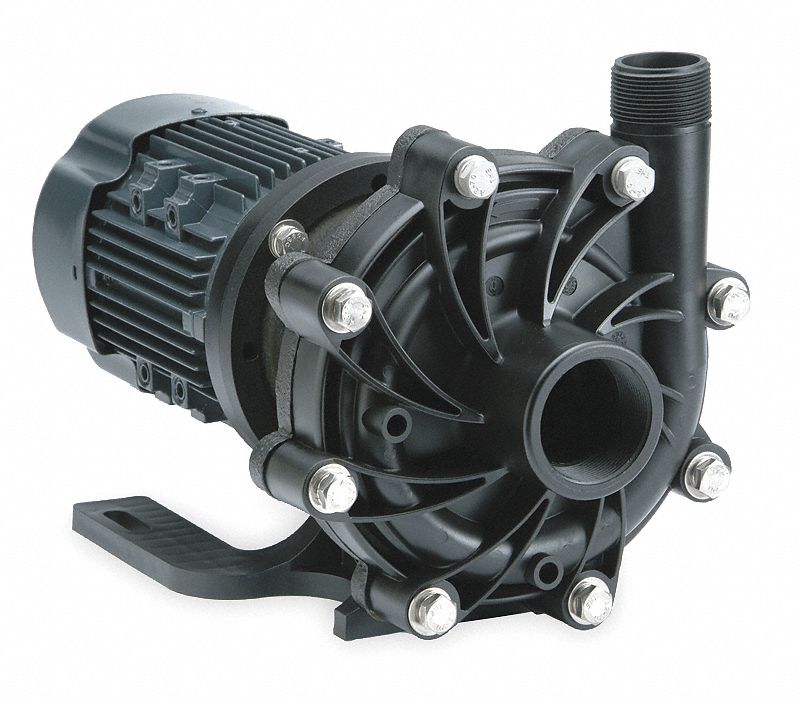

FINISH THOMPSON Pump, Mag Drive, 2 HP, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Magnetic Drive, 2 HP, Voltage 208-230/460, Full Load Amps 5.75-5.40/2.70, Motor Type Induction, Motor Enclosure TEFC, 115 GPM @ 1 Ft. of Head, 93 GPM of Water @ 50 Ft. of Head, Length 20 1/2 In., Width 9 45/64 In., Height 10 51/64 In., Inlet 2 FNPT In., Outlet 1 1/2 MNPT In., Temp (F) @ 0 PSIG 220, Temp (F) @ 10 PSIG 220, Temp (F) @ 20 PSIG 220, Temp (F) @ 30 PSIG 220, Operating Pressure 32 PSI

Grainger Item #	3AZR8
Price (ea.)	$3,456.00
Brand	FINISH THOMPSON
Mfr. Model #	DB11V-T-M215
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	67.1
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Straight
HP		2
Voltage		208-230/460
Full Load Amps		5.75-5.40/2.70
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		115
GPM of Water @ 3 Ft. of Head		115
GPM of Water @ 6 Ft. of Head		115
GPM of Water @ 9 Ft. of Head		115
GPM of Water @ 15 Ft. of Head		115
GPM of Water @ 18 Ft. of Head		115
GPM of Water @ 24 Ft. of Head		115
GPM of Water @ 40 Ft. of Head		104
GPM of Water @ 50 Ft. of Head		93
Max. Head (Ft.)		73
Length (In.)		20-1/2
Width (In.)		9-45/64
Height (In.)		10-51/64
Temp (F) @ 0 PSIG		220
Temp (F) @ 10 PSIG		220
Temp (F) @ 20 PSIG		220
Temp (F) @ 30 PSIG		220
Operating Pressure (PSI)		32
Housing		PVDF
Impeller		PVDF w/PTFE Bushing
Max. Specific Gravity		1.2
Max. Viscosity		100 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Centrifugal
Gasket		Viton
Series		DB11
For Use With		Chemicals and Water
Application		Sodium Hypochlorite, Acids, Plating Solutions, DI Water
