Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

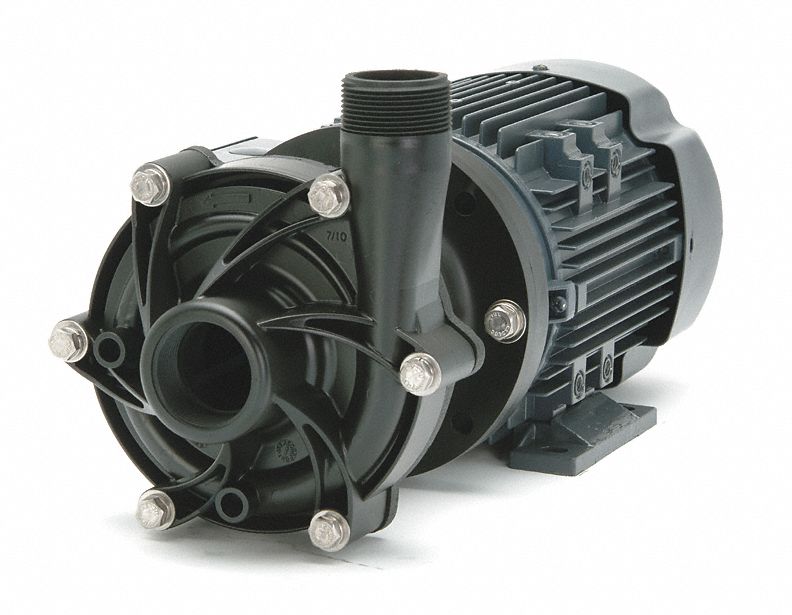

Pump, Magnetic Drive, 3/4 HP, Voltage 208-230/460, Full Load Amps 2.4-2.3/1.15, Motor Type Induction, Motor Enclosure TEFC, 69 GPM @ 1 Ft. of Head, Length 17 19/64 In., Width 7 1/2 In., Height 8 19/64 In., Inlet 1 1/2 FNPT In., Outlet 1 1/2 MNPT In., Temp (F) @ 0 PSIG 220, Temp (F) @ 10 PSIG 220, Temp (F) @ 20 PSIG 220, Temp (F) @ 30 PSIG 220, Operating Pressure 14.2 PSI

Grainger Item #	3AZR4
Price (ea.)	$1,620.00
Brand	FINISH THOMPSON
Mfr. Model #	DB7V-T-M205
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.48
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Straight
HP		3/4
Voltage		208-230/460
Full Load Amps		2.4-2.3/1.15
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		69
GPM of Water @ 3 Ft. of Head		69
GPM of Water @ 6 Ft. of Head		69
GPM of Water @ 9 Ft. of Head		69
GPM of Water @ 15 Ft. of Head		64
GPM of Water @ 18 Ft. of Head		58
GPM of Water @ 24 Ft. of Head		50
Max. Head (Ft.)		33
Length (In.)		17-19/64
Width (In.)		7-1/2
Height (In.)		8-19/64
Temp (F) @ 0 PSIG		220
Temp (F) @ 10 PSIG		220
Temp (F) @ 20 PSIG		220
Temp (F) @ 30 PSIG		220
Operating Pressure (PSI)		14.2
Housing		PVDF
Impeller		PVDF w/PTFE Bushing
Max. Specific Gravity		1.6
Max. Viscosity		100 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Centrifugal
Gasket		Viton
Series		DB7
For Use With		Chemicals and Water
Application		Sodium Hypochlorite, Acids, Plating Solutions, DI Water
