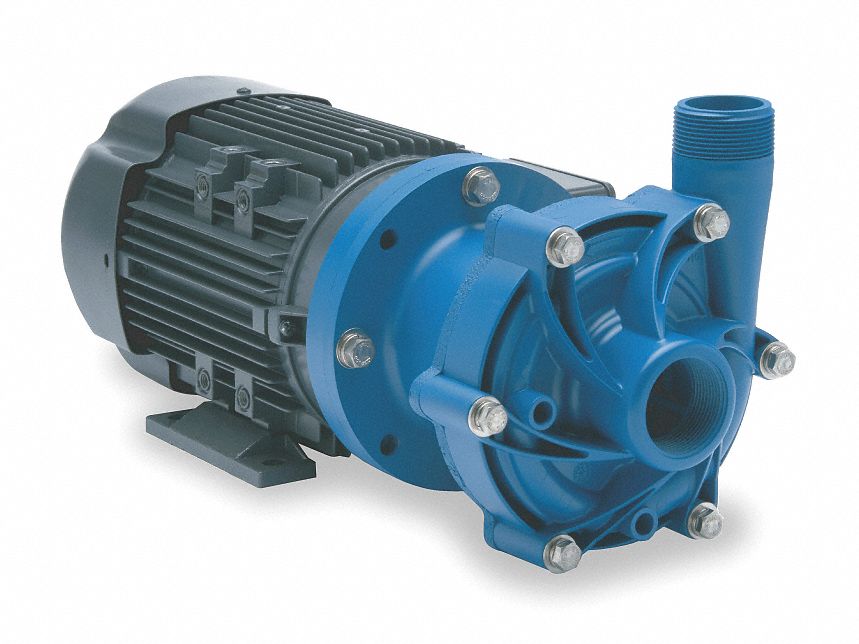

FINISH THOMPSON Pump, Mag Drive, 1 HP, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Magnetic Drive, 1 HP, Voltage 208-230/460, Full Load Amps 3.00-2.90/1.45, Motor Type Induction, Motor Enclosure TEFC, 95 GPM @ 1 Ft. of Head, 38 GPM of Water @ 50 Ft. of Head, Length 17 19/64 In., Width 7 1/2 In., Height 8 19/64 In., Inlet 1 1/2 FNPT In., Outlet 1 1/2 MNPT In., Temp (F) @ 0 PSIG 180, Temp (F) @ 10 PSIG 180, Temp (F) @ 20 PSIG 180, Temp (F) @ 30 PSIG 180, Operating Pressure 23 PSI

Grainger Item #	3AZP6
Price (ea.)	$1,537.00
Brand	FINISH THOMPSON
Mfr. Model #	DB10P-M219
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	43.33
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Straight
HP		1
Voltage		208-230/460
Full Load Amps		3.00-2.90/1.45
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		95
GPM of Water @ 3 Ft. of Head		95
GPM of Water @ 6 Ft. of Head		95
GPM of Water @ 9 Ft. of Head		95
GPM of Water @ 15 Ft. of Head		95
GPM of Water @ 18 Ft. of Head		94
GPM of Water @ 24 Ft. of Head		85
GPM of Water @ 40 Ft. of Head		66
GPM of Water @ 50 Ft. of Head		38
Max. Head (Ft.)		52
Length (In.)		17-19/64
Width (In.)		7-1/2
Height (In.)		8-19/64
Temp (F) @ 0 PSIG		180
Temp (F) @ 10 PSIG		180
Temp (F) @ 20 PSIG		180
Temp (F) @ 30 PSIG		180
Operating Pressure (PSI)		23
Housing		Polypropylene
Impeller		Polypropylene w/Carbon Bushing
Max. Specific Gravity		1.1
Max. Viscosity		100 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Centrifugal
Gasket		Viton
Series		DB10
For Use With		Chemicals and Water
Application		Acids, Caustics, Plating Solutions, DI-Water
