Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

208-230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

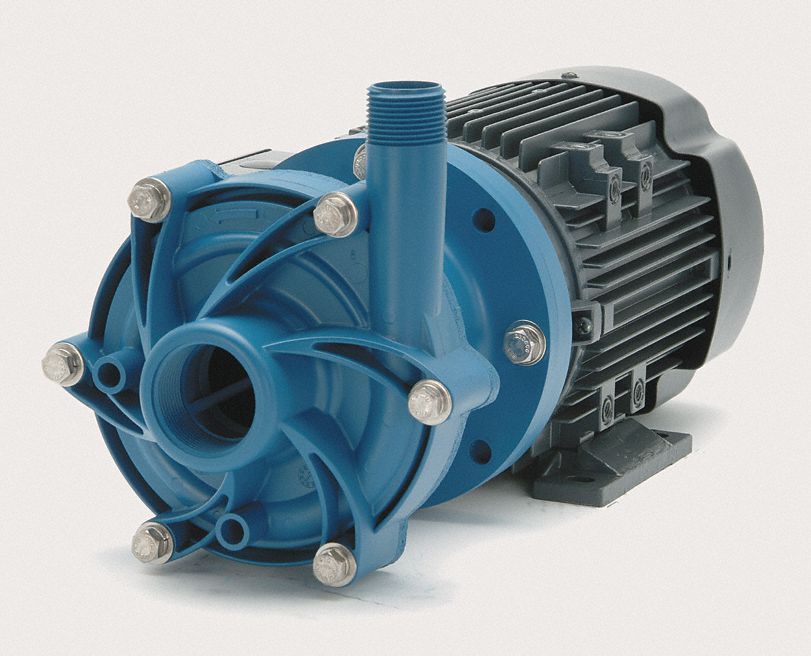

Pump, Magnetic Drive, 3/4 HP, Voltage 115/208-230, Full Load Amps 10.4/5.00-5.20, Motor Type Induction, Motor Enclosure TEFC, 61 GPM @ 1 Ft. of Head, Length 17 19/64 In., Width 7 1/2 In., Height 8 19/64 In., Inlet 1 1/2 FNPT In., Outlet 1 MNPT In., Temp (F) @ 0 PSIG 180, Temp (F) @ 10 PSIG 180, Temp (F) @ 20 PSIG 180, Temp (F) @ 30 PSIG 180, Operating Pressure 19.5 PSI

Grainger Item #	3AZP1
Price (ea.)	$1,401.00
Brand	FINISH THOMPSON
Mfr. Model #	DB8P-M204
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	44.11
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Straight
HP		3/4
Voltage		115/208-230
Full Load Amps		10.4/5.00-5.20
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		61
GPM of Water @ 3 Ft. of Head		61
GPM of Water @ 6 Ft. of Head		61
GPM of Water @ 9 Ft. of Head		61
GPM of Water @ 15 Ft. of Head		58
GPM of Water @ 18 Ft. of Head		55
GPM of Water @ 24 Ft. of Head		50
GPM of Water @ 40 Ft. of Head		30
Max. Head (Ft.)		45
Length (In.)		17-19/64
Width (In.)		7-1/2
Height (In.)		8-19/64
Temp (F) @ 0 PSIG		180
Temp (F) @ 10 PSIG		180
Temp (F) @ 20 PSIG		180
Temp (F) @ 30 PSIG		180
Operating Pressure (PSI)		19.5
Housing		Polypropylene
Impeller		Polypropylene w/Carbon Bushing
Max. Specific Gravity		1.5
Max. Viscosity		100 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Centrifugal
Gasket		Viton
Series		DB8
For Use With		Chemicals and Water
Application		Acids, Caustics, Plating Solutions, DI-Water
