Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

208-230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

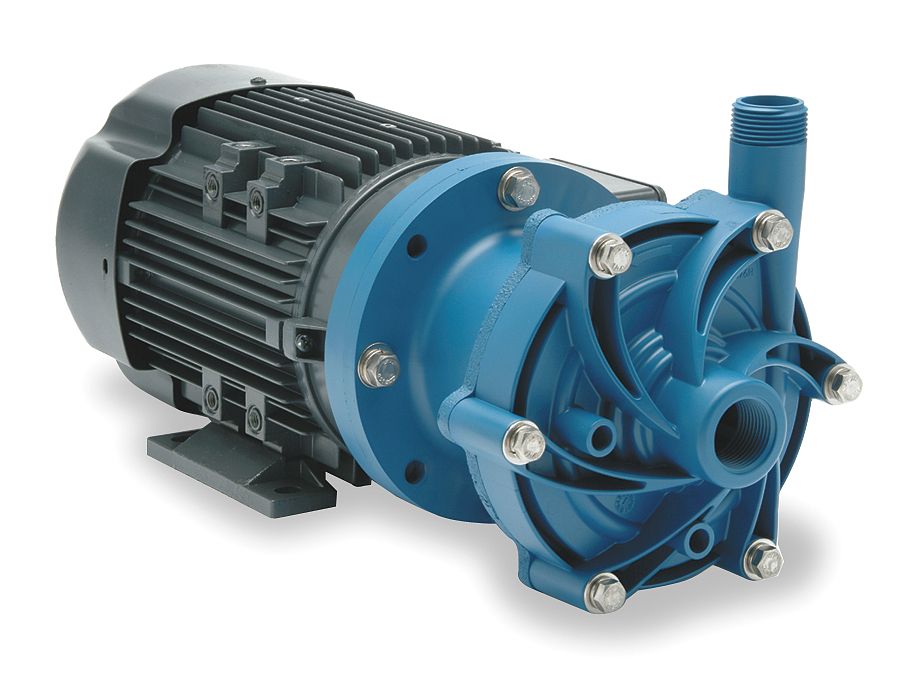

Pump, Magnetic Drive, 1/2 HP, Voltage 115/208-230, Full Load Amps 7.6/3.80-3.80, Motor Type Induction, Motor Enclosure TEFC, 42 GPM @ 1 Ft. of Head, 13 GPM of Water @ 50 Ft. of Head, Length 17 13/32 In., Width 7 1/2 In., Height 8 19/64 In., Inlet 1 FNPT In., Outlet 1 MNPT In., Temp (F) @ 0 PSIG 180, Temp (F) @ 10 PSIG 180, Temp (F) @ 20 PSIG 180, Temp (F) @ 30 PSIG 180, Operating Pressure 23 PSI

Grainger Item #	3AZN6
Price (ea.)	$1,165.00
Brand	FINISH THOMPSON
Mfr. Model #	DB6HP-M226
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	42.0
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Flooded Suction
HP		1/2
Voltage		115/208-230
Full Load Amps		7.6/3.80-3.80
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		42
GPM of Water @ 3 Ft. of Head		42
GPM of Water @ 6 Ft. of Head		42
GPM of Water @ 9 Ft. of Head		41
GPM of Water @ 15 Ft. of Head		38
GPM of Water @ 18 Ft. of Head		36
GPM of Water @ 24 Ft. of Head		33
GPM of Water @ 40 Ft. of Head		24
GPM of Water @ 50 Ft. of Head		13
Max. Head (Ft.)		53
Length (In.)		17-13/32
Width (In.)		7-1/2
Height (In.)		8-19/64
Temp (F) @ 0 PSIG		180
Temp (F) @ 10 PSIG		180
Temp (F) @ 20 PSIG		180
Temp (F) @ 30 PSIG		180
Operating Pressure (PSI)		23
Housing		Polypropylene
Impeller		Polypropylene w/Carbon Bushing
Max. Specific Gravity		1.2
Max. Viscosity		100 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Centrifugal
Gasket		Viton
Series		DB6H
For Use With		Chemicals and Water
Application		Acids, Caustics, Plating Solutions, DI-Water
