Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

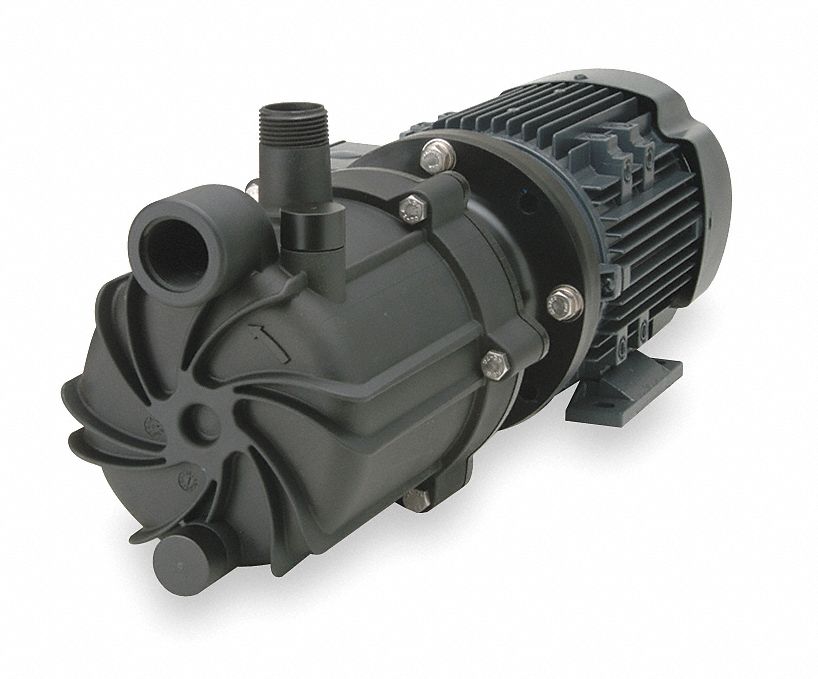

FINISH THOMPSON Pump, Mag Drive, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Magnetic Drive, 1 HP, Voltage 208-230/460, Full Load Amps 3.00-2.90/1.45, Motor Type Induction, Motor Enclosure TEFC, 55 GPM @ 1 Ft. of Head, 52 GPM of Water @ 18 Ft. of Head, Max. Head 50 Ft., Length 22 3/32 In., Width 7 1/2 In., Height 8 1/2 In., Inlet 1 In., Outlet 1 In., Temp (F) @ 0 PSIG 220, Temp (F) @ 10 PSIG 220, Temp (F) @ 20 PSIG 220, Temp (F) @ 30 PSIG 220, Operating Pressure 21.6 PSI, Self-Priming

Grainger Item #	3AZN1
Price (ea.)	$3,091.00
Brand	FINISH THOMPSON
Mfr. Model #	SP10V-3-M219
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	49.2
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Centrifugal Magnetic Drive Pumps
Type		Self-Priming
HP		1
Voltage		208-230/460
Full Load Amps		3.00-2.90/1.45
Motor Type		Induction
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		55
GPM of Water @ 3 Ft. of Head		55
GPM of Water @ 6 Ft. of Head		55
GPM of Water @ 9 Ft. of Head		55
GPM of Water @ 15 Ft. of Head		55
GPM of Water @ 18 Ft. of Head		52
GPM of Water @ 24 Ft. of Head		46
GPM of Water @ 40 Ft. of Head		32
GPM of Water @ 50 Ft. of Head		4
Max. Head (Ft.)		50
Length (In.)		22-3/32
Width (In.)		7-1/2
Height (In.)		8-1/2
Temp (F) @ 0 PSIG		220
Temp (F) @ 10 PSIG		220
Temp (F) @ 20 PSIG		220
Temp (F) @ 30 PSIG		220
Operating Pressure (PSI)		21.6
Housing		PVDF
Impeller		PVDF
Max. Specific Gravity		1.2
Max. Viscosity		50 CPS
Mounting		Horizontal
Bearings		Thrust & Radial
Design		Self Priming
Gasket		Viton
Series		SP10
For Use With		Chemicals
Application		Highly Corrosive Chemicals
