FINISH THOMPSON Drum Pump, 4/5 HP, 1 In Outlet, 60 In OAL

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Operated Drum Pump, Motor and Tube, 115 Voltage, 60 Hz, Phase 1, HP 4/5, Pump Body Material Polypropylene, Wetted Materials PP, PTFE, PVDF, FKM, 316SS & PVC, Max. Head 10 to 80 ft., Max. Pressure 35 psi, Max. Temp. 160 Degrees F, Max. Viscosity 500 CPS, Inlet Size 2 In, Outlet Size 1 In Barb, For Use On 55 Gallon Drums, Totes, Agency Compliance CSA

Grainger Item #	5FZV2
Price (ea.)	$967.50
Brand	FINISH THOMPSON
Mfr. Model #	PFM-48 & M3V Kit
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.05
Availability	Typically in Stock
Catalog Page No.	4099
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

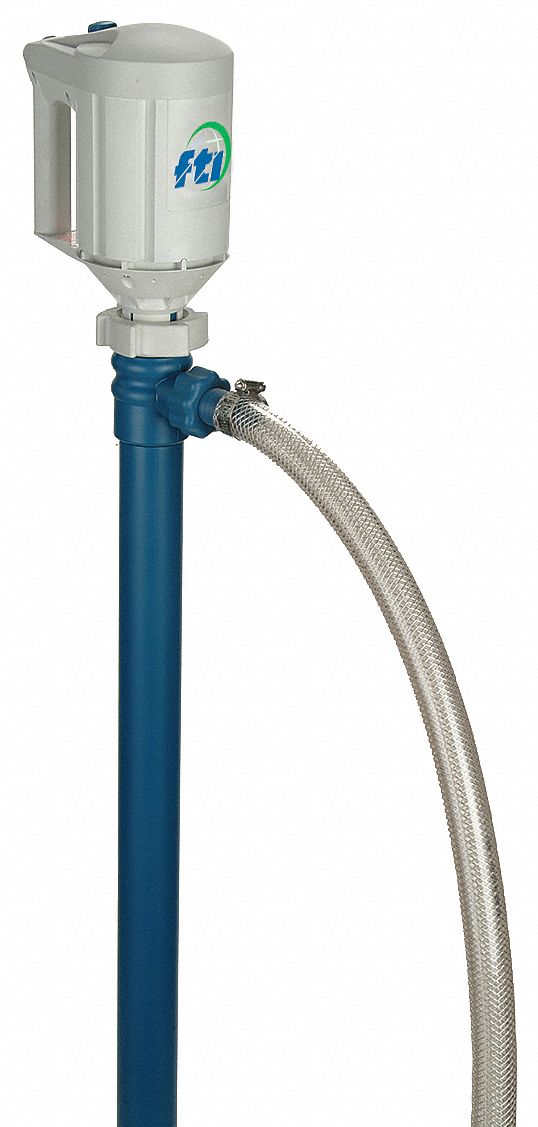

Drum Pump, 4/5 HP, 1 In Outlet, 60 In OAL

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Operated Drum Pump
Type		Motor and Tube
Voltage		115
Hz		60
Phase		1
HP		4/5
RPM		3,500-10,000
Motor Enclosure		ODP
Motor Type		Universal-Variable Speed
Pump Body Material		Polypropylene
Wetted Materials		PP, PTFE, PVDF, FKM, 316SS & PVC
pH Range		6-10
Seal Material		Fluoroelastomer
Discharge Tubing Material		PVC
For Use On		55 Gallon Drums, Totes
GPM		10-40
Maximum Head		10 to 80 ft.
Max. Pressure		35 psi
Max. Temp.		160 Degrees F
Max. Viscosity		500 CPS
Max. GPM for Oil		26
Max. GPM for Water		40
Inlet Size		2"
Outlet Size		1" Barb
Discharge Tube Outlet ID Size		1"
Discharge Tube Outlet OD Size		1-5/16"
Discharge Tube Length		60"
Suction Tube Length		48"
Suction Tube Outlet OD Size		2"
Suction Tube Type		Intake Tube
Overall Length		60"
Metered		No
Adapter Type		Optional 2" IPS Thread M100096
Adapter Material		PP
Application		Chemicals
Agency Compliance		CSA
Manufacturers Warranty Length		1 Year
Includes		Pump, Motor, Hose, Clamp
