Pumps
>
Drum and Barrel Pumps
>
Drum Pumps

4 In Outlet, 49 In OAL

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Operated Drum Pump, Motor and Tube, 115 Voltage, 60 Hz, Phase 1, HP 1/3, Pump Body Material Polypropylene / PVDF, Wetted Materials PP, PTFE, PVDF, FKM, 316SS & PVC, Max. Head 5 to 20 ft., Max. Pressure 8 psi, Max. Temp. 160 Degrees F, Max. Viscosity 300 CPS, Inlet Size 1-1/4 In, Outlet Size 3/4 In Barb, For Use On 55 Gallon Drums, Totes, Agency Compliance CSA

Grainger Item #	5FZU7
Price (ea.)	$552.50
Brand	FINISH THOMPSON
Mfr. Model #	EFV-40 & S1 Kit
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.75
Availability	Typically in Stock
Catalog Page No.	4099
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

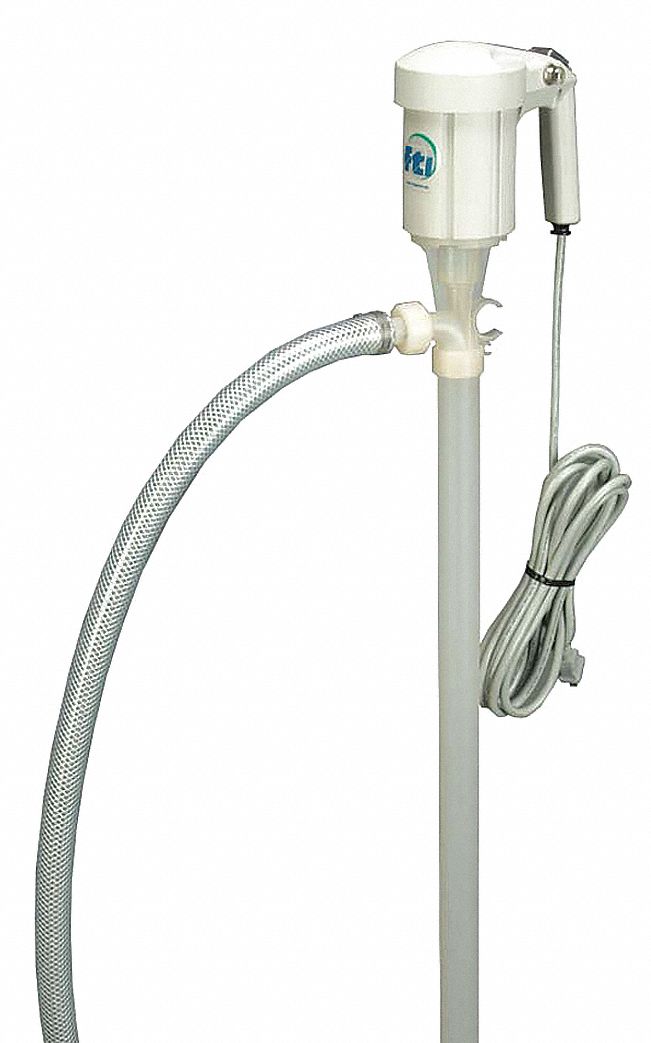

Drum Pump, 1/3 HP, 3/4 In Outlet, 49 In OAL

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Operated Drum Pump
Type		Motor and Tube
Voltage		115
Hz		60
Phase		1
HP		1/3
RPM		6,000/13,000
Motor Enclosure		ODP
Motor Type		Universal-2 Speed
Pump Body Material		Polypropylene / PVDF
Wetted Materials		PP, PTFE, PVDF, FKM, 316SS & PVC
pH Range		1-14
Seal Material		Fluoroelastomer
Discharge Tubing Material		PVC
For Use On		55 Gallon Drums, Totes
GPM		7/17
Maximum Head		5 to 20 ft.
Max. Pressure		8 psi
Max. Temp.		160 Degrees F
Max. Viscosity		300 CPS
Max. GPM for Oil		7
Max. GPM for Water		17
Inlet Size		1-1/4"
Outlet Size		3/4" Barb
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1"
Discharge Tube Length		60"
Suction Tube Length		40"
Suction Tube Outlet OD Size		1-1/4"
Suction Tube Type		Intake Tube
Overall Length		49"
Metered		No
Adapter Type		Optional 2" IPS Thread 107427
Adapter Material		PP
Application		Sodium Hypochlorite-Chlorine Bleach, Corrosive Chemicals
Agency Compliance		CSA
Manufacturers Warranty Length		1 Year
Includes		Pump, Motor, Hose, Clamp
