Pumps
>
Drum and Barrel Pumps
>
Drum Pumps

4 In Outlet, 49 In OAL

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Operated Drum Pump, Motor and Tube, 115 Voltage, 60 Hz, Phase 1, HP 1/3, Pump Body Material Polypropylene, Wetted Materials PP, PTFE, FKM, 316SS & EPDM, Max. Head 5 to 20 ft., Max. Pressure 8 psi, Max. Temp. 150 Degrees F, Max. Viscosity 300 CPS, Inlet Size 1-1/4 In, Outlet Size 3/4 In Barb, For Use On 55 Gallon Drums, Totes, Agency Compliance CSA, ISO 22241-3 (Purity Standard)

Grainger Item #	5FZU3
Price (ea.)	$1,039.00
Brand	FINISH THOMPSON
Mfr. Model #	EFP-40 & S1 DEF Kit
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	17.3
Availability	Typically in Stock
Catalog Page No.	4096
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

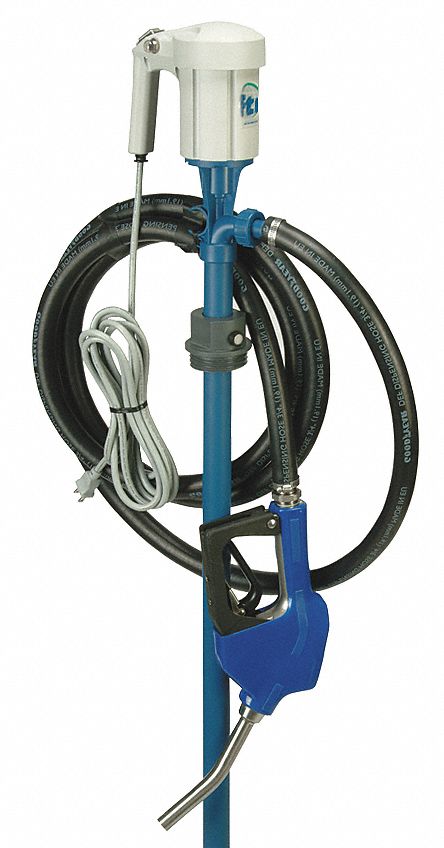

Drum Pump, 1/3 HP, 3/4 In Outlet, 49 In OAL

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Operated Drum Pump
Type		Motor and Tube
Voltage		115
Hz		60
Phase		1
HP		1/3
RPM		6,000/13,000
Motor Enclosure		ODP
Motor Type		Universal-2 Speed
Pump Body Material		Polypropylene
Wetted Materials		PP, PTFE, FKM, 316SS & EPDM
pH Range		6-10
Seal Material		Fluoroelastomer
Discharge Tubing Material		EPDM
For Use On		55 Gallon Drums, Totes
GPM		5
Maximum Head		5 to 20 ft.
Max. Pressure		8 psi
Max. Temp.		150 Degrees F
Max. Viscosity		300 CPS
Max. GPM for Oil		7
Max. GPM for Water		5
Inlet Size		1-1/4"
Outlet Size		3/4" Barb
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1-1/8"
Discharge Tube Length		96"
Suction Tube Length		40"
Suction Tube Outlet OD Size		1-1/4"
Suction Tube Type		Intake Tube
Overall Length		49"
Metered		No
Adapter Type		2" Buttress Thread
Adapter Material		PVC
Special Features		DEF Dispensing
Application		Diesel Exhaust Fluid and Other Compatible Chemicals
Agency Compliance		CSA, ISO 22241-3 (Purity Standard)
Manufacturers Warranty Length		1 Year
Includes		Pump, Motor, Hose, Clamp, S.S Automatic Nozzle, Sealed Adapter
