FINISH THOMPSON Mag Drive Pump, 1/2 HP, 115V, FKM Gasket

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Centrifugal Magnetic Drive Pump, Flooded Suction, 1/2 HP, Voltage 115, Full Load Amps 4.6, Inlet 1 In FNPT, Outlet 3/4 In MNPT, Motor Enclosure TEFC, Max. Head 29 Ft., Length 14-1/16 In., Width 7-5/8 In., Height 7-7/16 In., Operating Pressure 12.6 PSI, Polypropylene Housing

Grainger Item #	15R528
Price (ea.)	$602.50
Brand	FINISH THOMPSON
Mfr. Model #	DB5.5P-M622
UNSPSC #	40151564
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	21.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

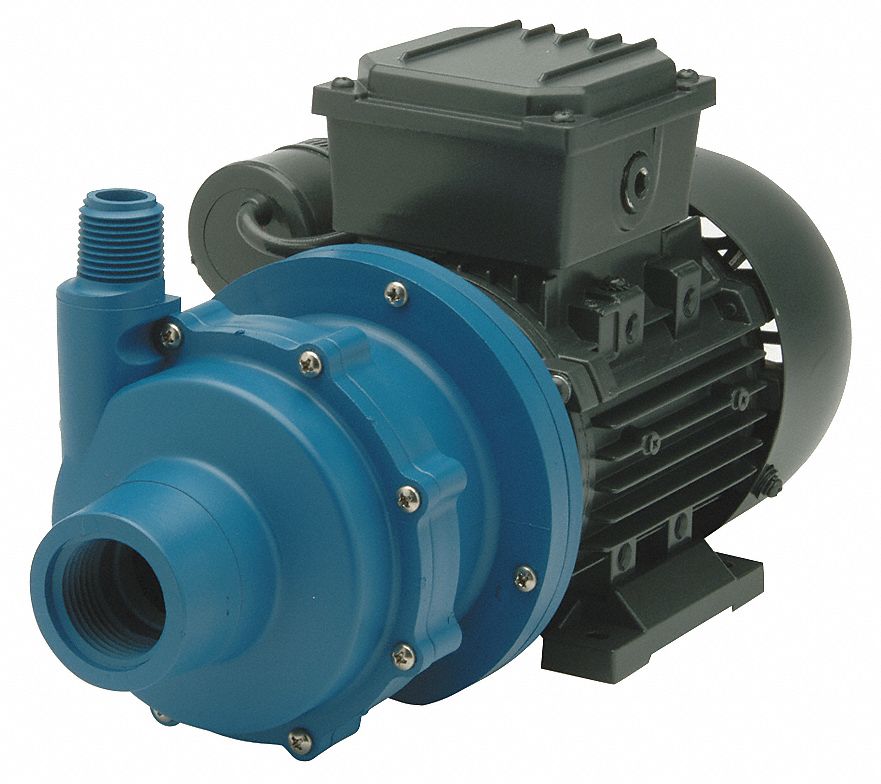

Mag Drive Pump, 1/2 HP, 115V, FKM Gasket

Enlarge Image

Item		Centrifugal Magnetic Drive Pump
Type		Flooded Suction
HP		1/2
Voltage		115
Full Load Amps		4.6
Inlet		1" FNPT
Outlet		3/4" MNPT
Motor Type		PSC
Motor Enclosure		TEFC
GPM @ 1 Ft. of Head		30
GPM of Water @ 3 Ft. of Head		30
GPM of Water @ 6 Ft. of Head		30
GPM of Water @ 9 Ft. of Head		28
GPM of Water @ 15 Ft. of Head		25
GPM of Water @ 18 Ft. of Head		22
GPM of Water @ 24 Ft. of Head		17
Max. Head (Ft.)		29
Length (In.)		14-1/16
Width (In.)		7-5/8
Height (In.)		7-7/16
Temp (F) @ 0 PSIG		180
Temp (F) @ 10 PSIG		180
Temp (F) @ 20 PSIG		180
Temp (F) @ 30 PSIG		180
Operating Pressure (PSI)		12.6
Housing		Polypropylene
Impeller		Polypropylene w/ Carbon Bushing
Max. Specific Gravity		1.8
Max. Viscosity		150 CPS
Mounting		Close Coupled
Bearings		Thrust & Radial
Cord Length		12 ft.
Cord Type		18-3 STW w/ NEMA 5-15P Plug
Design		Mag-Drive
Gasket		FKM
Series		DB5.5
For Use With		Nonflammable Liquids Compatible with Pump Component Materials
Application		Acids, Plating Solutions, DI-Water
