FINISH THOMPSON Air Operated Drum Pump, 1/2 HP, 212 Deg F

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Drum Pump, Motor and Tube, 1/2 HP, Pump Body Material 316 SS, Wetted Materials 316SS, FKM, PTFE & ETFE, pH Range 6-10, FKM Seal Material, Maximum Head 17 ft., Max. Pressure 7.4 psi, Max. Temp. 212 Degrees F, Max. Viscosity 300 CPS., Inlet Size 1-1/4 In, Outlet Size 3/4 In Barb, Overall Length 46-13/16 In

Grainger Item #	15R527
Price (ea.)	$1,039.00
Brand	FINISH THOMPSON
Mfr. Model #	EFS-40/S4
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	17.0
Availability	Typically in Stock
Catalog Page No.	4099
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

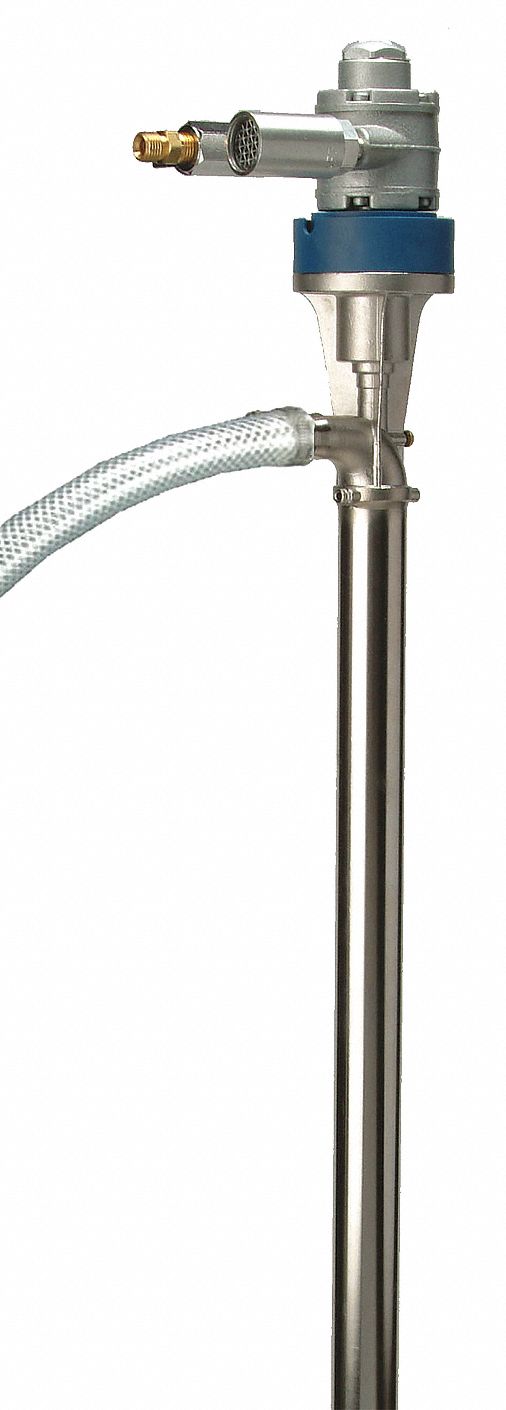

Air Operated Drum Pump, 1/2 HP, 212 Deg F

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Operated Drum Pump
Type		Motor and Tube
HP		1/2
Motor Enclosure		Air
Motor Type		Air
Pump Body Material		316 SS
Wetted Materials		316SS, FKM, PTFE & ETFE
pH Range		6-10
Seal Material		FKM
Discharge Tubing Material		PVC
Hose Material		PVC
For Use On		30,55 Gal. Drums
GPM		15
Maximum Head		17 ft.
Max. Pressure		7.4 psi
Max. Temp.		212 Degrees F
Max. Viscosity		300 CPS
Max. GPM for Oil		7 @ 100 cps
Max. GPM for Water		15
Inlet Size		1-1/4"
Outlet Size		3/4" Barb
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1"
Discharge Tube Length		5'
Hose Length		5'
Suction Tube Length		40"
Suction Tube Outlet OD Size		1-1/4"
Suction Tube Type		Constant
Overall Length		46-13/16"
Metered		No
Special Features		Sealless Design
Application		Mild Corrosive Chemicals
Manufacturers Warranty Length		1 Year
Includes		Pump, Motor, Hose & Clamp
