FILL-RITE Hand Pump, Lever Action, 3/4 In FNPT, PP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hand Pump, Lever Action, Pump Body Material Polypropylene, Viton Wetted Materials, Viton Seal Material, Polymer Discharge Tubing Material, Max Temp 120 Degrees F, 11 Ounces per Stroke, Max Viscosity 50 SSU, Inlet Size 3/4 In FNPT, Outlet Size 3/4 In FNPT, Telescopic Suction Tube, Overall Length 22 In, Includes 1 In Polymer Suction Tube

Grainger Item #	30J077
Price (ea.)	$94.70
Brand	FILL-RITE
Mfr. Model #	FR20V
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.05
Availability	Typically in Stock
Catalog Page No.	4094
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

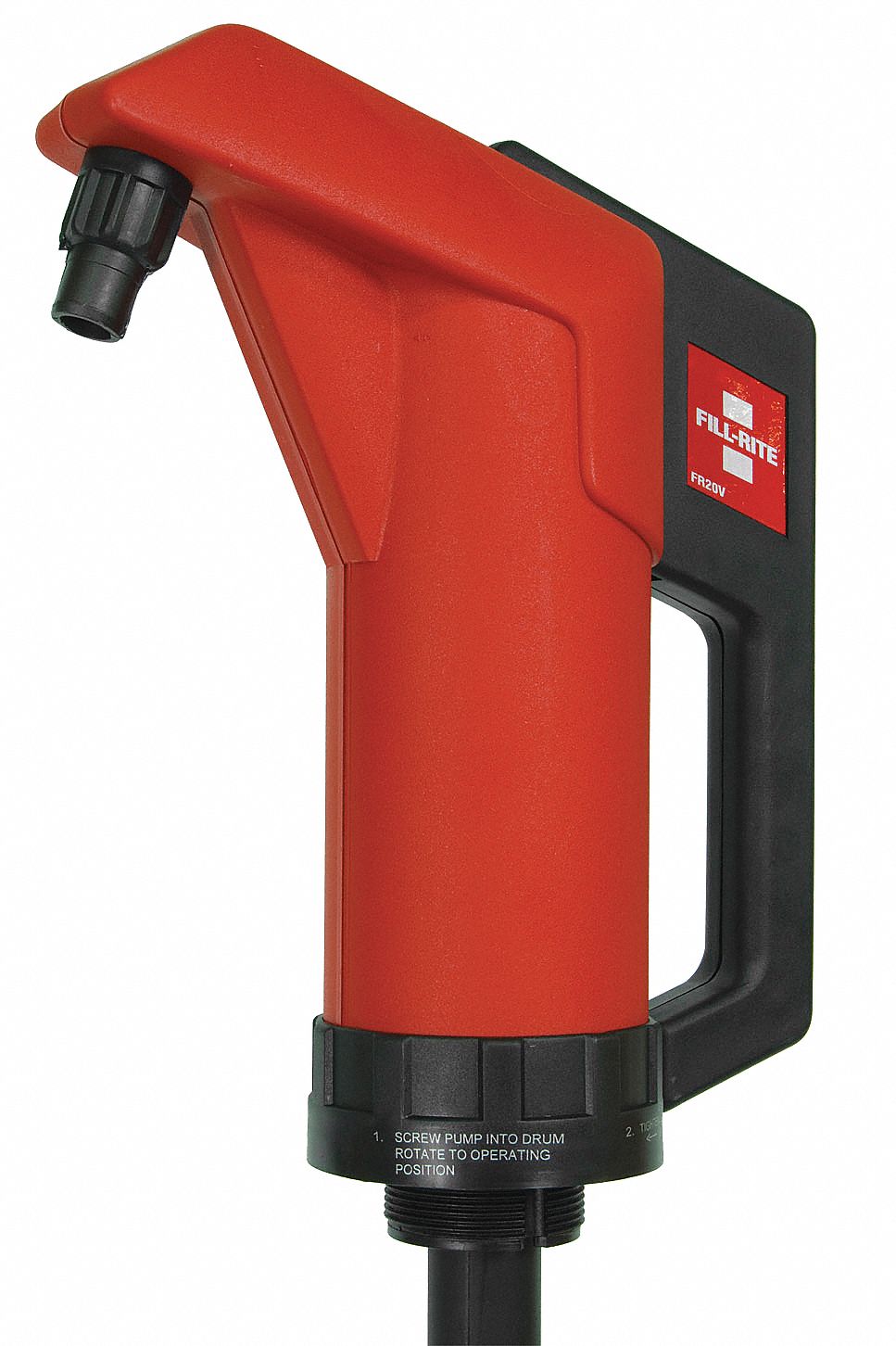

Hand Pump, Lever Action, 3/4 In FNPT, PP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hand Operated Drum Pump
Type		Lever Action
Pump Body Material		Polypropylene
Wetted Materials		Viton
Seal Material		Viton
Discharge Tubing Material		Polymer
For Use On		Drums, Totes and Barrels
Max. Temp.		120 Degrees F
Ounces per Stroke		11
Max. Viscosity		50 SSU
Inlet Size		3/4" FNPT
Outlet Size		3/4" FNPT
Discharge Tube Outlet ID Size		3/4"
Discharge Tube Outlet OD Size		1-1/8"
Discharge Tube Length		96"
Suction Tube Length		18-3/16" to 34-1/2"
Suction Tube Outlet OD Size		1"
Suction Tube Type		Telescopic
Overall Length		22"
Metered		No
Adapter Type		2" NPS
Adapter Material		Polypropylene
Special Features		The Economical Way to Transfer Tough Industrial Fluids Easily, Safely and Accurately Perfect for Barrels, Storage Tanks and Drums
Application		Engine Oils Diesel Antifreeze Paraffin Gear Oills, Hydraulic Oils, Mild Acids and Degreasers
Manufacturers Warranty Length		1 Year
Includes		1" Polymer Suction Tube
