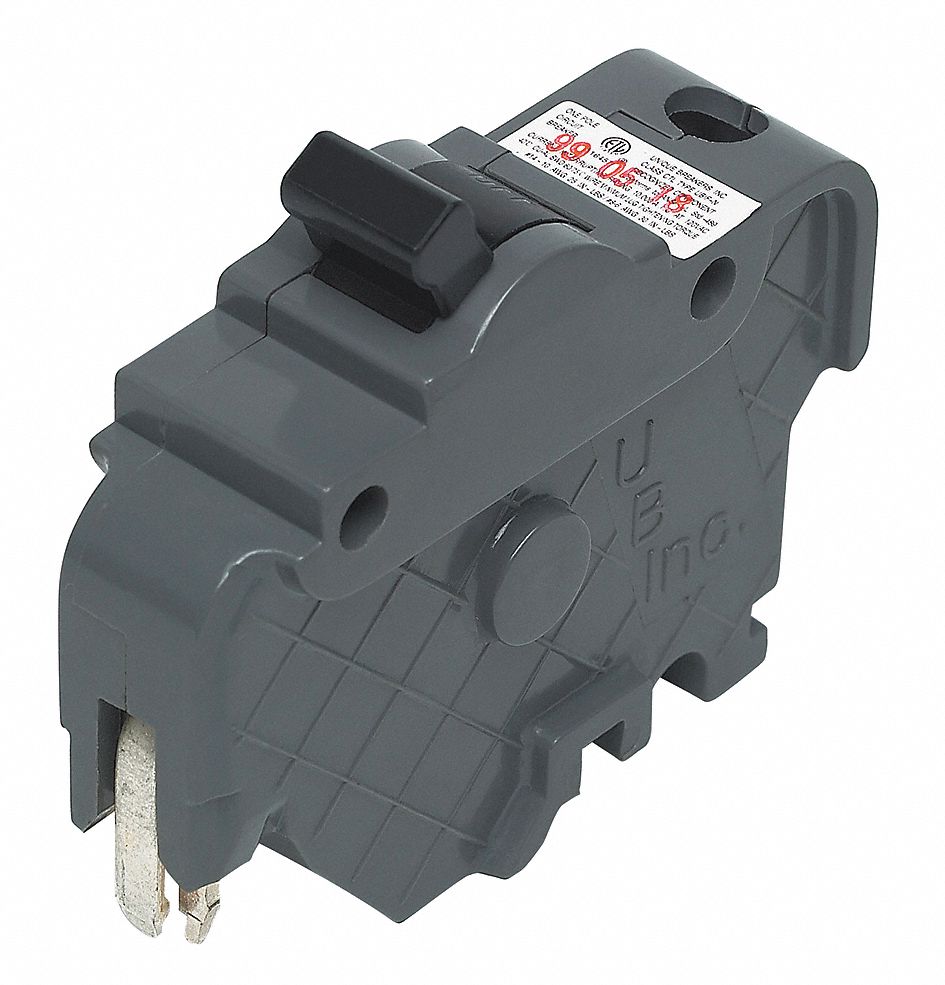

FEDERAL PACIFIC Circuit Breaker, Type UBIF, 1Pole, 20A

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Type UBIF, AIR Rating 10kA, Circuit Breaker Type Standard, Number of Poles 1, Voltage 120/240VAC, Amps 20, Phase One, Phase Connection A, Min. Wire Size 14 AWG, Max. Wire Size 6 AWG, Length 3.35 In., Width 1 In., Depth 2.65 In., Terminal Connection Box Lug, For Use With Federal Pacific Load Centers, Frame Size 125A, Standards ETL

Grainger Item #	3YMR1
Price (ea.)	$38.30
Brand	FEDERAL PACIFIC
Mfr. Model #	UBIF20N
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.3
Availability	Typically in Stock
Catalog Page No.	292
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Panelboard Mount
Circuit Breaker Type		Standard
Number of Poles		1
Amps		20
Voltage		120/240VAC
AIR Rating		10k
AIR @ 120VAC		10k
Phase		1
Phase Connection		A
Terminal Connection		Lug
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		6
Length (In.)		3.35
Width (In.)		1.00
Depth (In.)		2.65
Frame Size		125A
For Use With		Federal Pacific Load Centers
Standards		ETL
