HVAC and Refrigeration
>
Blowers
>
Direct Drive Double Inlet Fwd Curve Blowers w/Dr Pkg

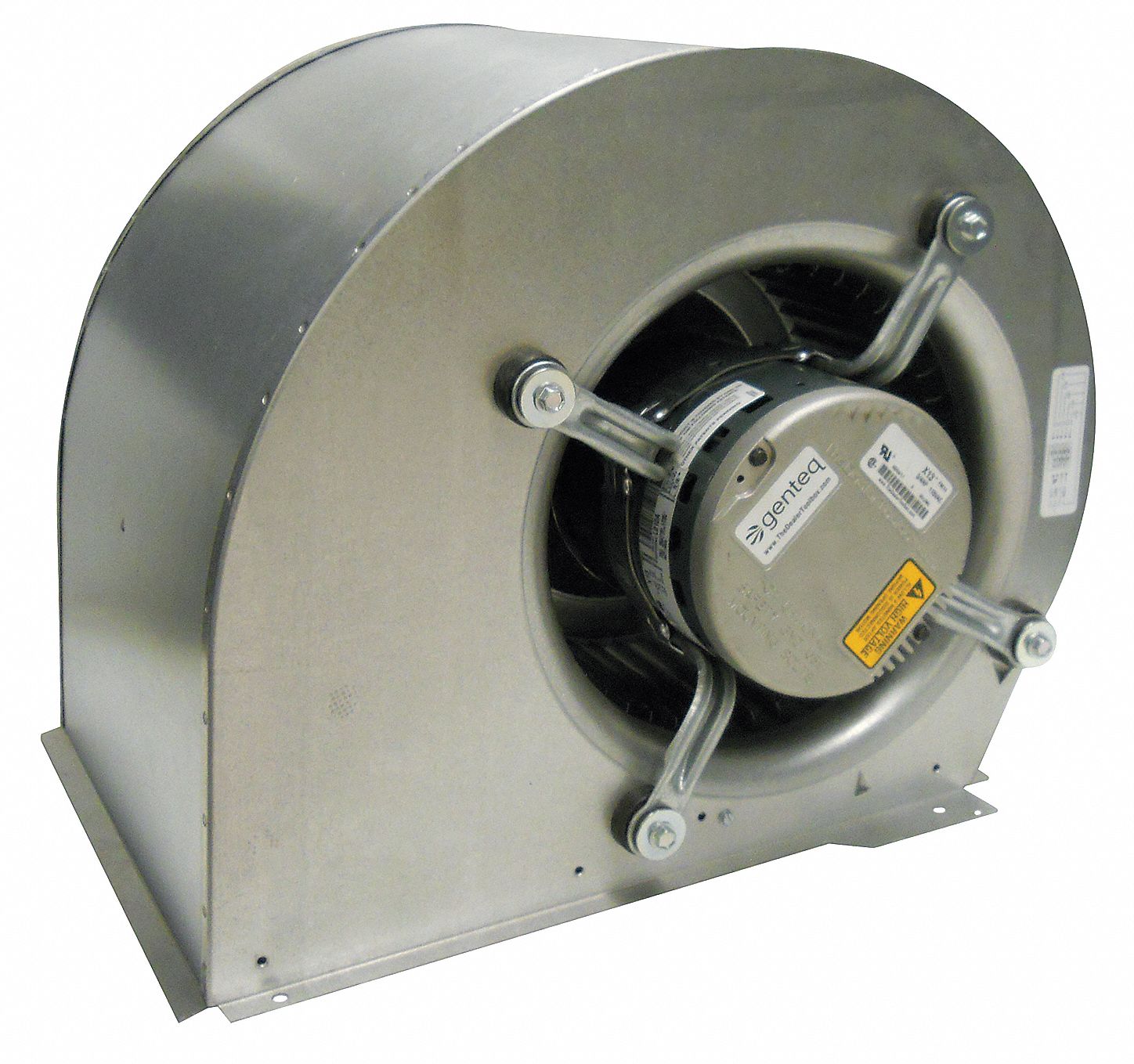

FASCO Blower, DD, 115V, 5 Speed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Blower, Double Inlet Forward Curve, Direct Drive, With Motor, 5 Speed, Wheel Dia. (In.) 10-5/8, Wheel Width (In.) 8, CFM Range 2395 to 320 @ 0.000-In SP to 1.700-In SP, Max. Inlet Temp. (Deg. F) 113, Max. Ambient Temp. (F) 113, Voltage 115, Hz 50/60, Phase Single, Full Load Amps 8.4, Motor HP 3/4, Motor RPM 1180, Motor Type ECM, Blower RPM 1180, Housing Height (In.) 15-1/16, Housing Width (In.) 10-9/16, Housing Depth (In.) 19-3/8, Discharge Height (In.) 9-1/8, Discharge Width (In.) 10-1/2

Grainger Item #	19F698
Price (ea.)	$895.50
Brand	FASCO
Mfr. Model #	70005952
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	41.5
Availability	Item ships within 9 business days from supplier
Catalog Page No.	4513
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Blower
Type		Double Inlet Forward Curve, Direct Drive, With Motor
Speed		5
Wheel Dia. (In.)		10-5/8
Wheel Width (In.)		8
CFM Range		2395 to 320 @ 0.000-In SP to 1.700-In SP
CFM @ 0.000-In. SP		2395, 2290, 2155, 2000, 1875
CFM @ 0.300-In. SP		2340, 2215, 2060, 1905, 1740
CFM @ 0.400-In. SP		2305, 2185, 2035, 1875, 1715
CFM @ 0.500-In. SP		2280, 2155, 2000, 1835, 1680
CFM @ 0.600-In. SP		2255, 2130, 1970, 1810, 1645
CFM @ 0.700-In. SP		2235, 2090, 1940, 1775, 1705
CFM @ 0.800-In. SP		2205, 2040, 1905, 1750, 1575
CFM @ 0.900-In. SP		2165, 2000, 1860, 1695, 1515
CFM @ 1.000-In. SP		2185, 2060, 1965, 1605, 1430
CFM @ 1.10-In. SP		2010, 1910, 1765, 1595, 1455
CFM @ 1.200-In. SP		1850, 1750, 1640, 1440, 1390
CFM @ 1.250-In. SP		1720, 1670, 1576, 1365, 1360
CFM @ 1.30-In. SP		1600, 1540, 1475, 1255, 1325
CFM @ 1.40-In. SP		1295, 1240, 1190, 1255, 950
CFM @ 1.500-In. SP		860, 820, 785, 690, 685
CFM @ 1.600-In. SP		440, 440, 420, 410, 400
CFM @ 1.70-In. SP		320, 310, 305, 295, 285
CFM @ 1.80-In. SP		200, 180, 165, 165, 160
Max. Inlet Temp. (Deg. F)		113
Max. Ambient Temp. (F)		113
Voltage		115
Hz		50/60
Phase		Single
Full Load Amps		8.4
Motor HP		3/4
Motor RPM		1180
Motor Type		ECM
Bearing Type		Permanently Lubricated Ball
Motor Enclosure		Vented
Blower RPM		1180
Housing Height (In.)		15-1/16
Housing Width (In.)		10-9/16
Housing Depth (In.)		19-3/8
Discharge Height (In.)		9-1/8
Discharge Width (In.)		10-1/2
Mounting		Multipostion
Housing Material		Aluminized Steel
Housing Finish		Aluminum
Wheel Material		Galvanized Steel
Includes		24V Transformer
Agency Compliance		UL/CSA Motor Recognized
