FANTECH Inline Fan, 8-1/4 In. H, Galvanized Steel

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Inline Fan, Housing Material Galvanized Steel, Fits Duct Dia. 8 In., Voltage 120, Max. Amps 1.14, Max. Wattage 119, Number of Speeds 1, Housing Dia. 13-3/8 In.CFM @ Duct 461, CFM @ 0.000-In. SP 461, CFM @ 0.100-In. SP 435CFM @ 0.200-In. SP 410Max. Inlet Temp. 140 Degrees F, Inlet and Outlet Dia. 8 In., 60 Hz, 1 PhaseMotor RPM 2550, Motor Enclosure External RotorHeight 8-1/4 In.Includes Mounting Bracket

Grainger Item #	15W692
Price (ea.)	$366.25
Brand	FANTECH
Mfr. Model #	FG 8
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.2
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Germany

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

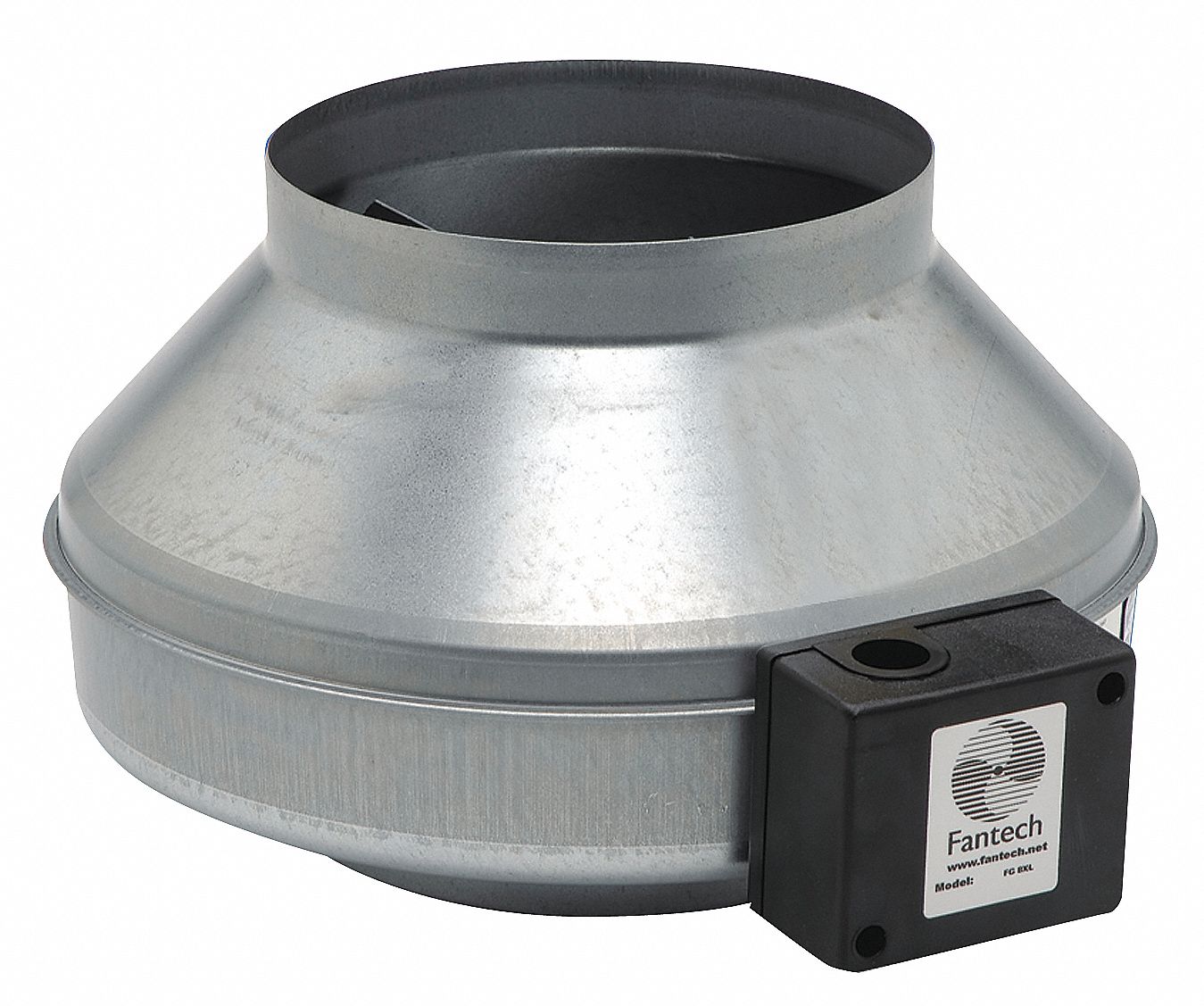

Inline Fan, 8-1/4 In. H, Galvanized Steel

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Inline Fan
Housing Material		Galvanized Steel
Fits Duct Dia.		8"
Voltage		120
Max. Amps		1.14
Max. Wattage		119
Number of Speeds		1
Housing Dia.		13-3/8"
CFM @ Duct		461
CFM @ 0.000-In. SP		461
CFM @ 0.100-In. SP		435
CFM @ 0.200-In. SP		410
CFM @ 0.400-In. SP		351
CFM @ 0.600-In. SP		295
CFM @ 0.800-In. SP		243
CFM @ 1.000-In. SP		191
CFM @ 1.200-In. SP		143
CFM @ 1.500-In. SP		97
Max. Inlet Temp.		140 Degrees F
Inlet and Outlet Dia.		8"
Hz		60
Phase		1
Motor RPM		2550
Motor Enclosure		External Rotor
Bearing Type		Ball
Height		8-1/4"
Standards		HVI, C-UL-US, cCSAus, AMCA, Energy Star
Includes		Mounting Bracket
Green Certification or Other Recognition		ENERGY STAR Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
