FANTECH Inline Fan, 8-1/2 In. H, Galvanized Steel

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Inline Fan, Housing Material Galvanized Steel, Fits Duct Dia. 4 In., Voltage 120, Max. Amps 0.66, Max. Wattage 71, Number of Speeds 1, Housing Dia. 8-3/4 In.CFM @ Duct 170, CFM @ 0.000-In. SP 170, CFM @ 0.100-In. SP 160CFM @ 0.200-In. SP 150Max. Inlet Temp. 140 Degrees F, Inlet and Outlet Dia. 4 In., 60 Hz, 1 PhaseMotor RPM 2750, Motor Enclosure External RotorHeight 8-1/2 In.Includes Mounting Bracket

Grainger Item #	15W687
Price (ea.)	$258.25
Brand	FANTECH
Mfr. Model #	FG 4XL
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.75
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Germany

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

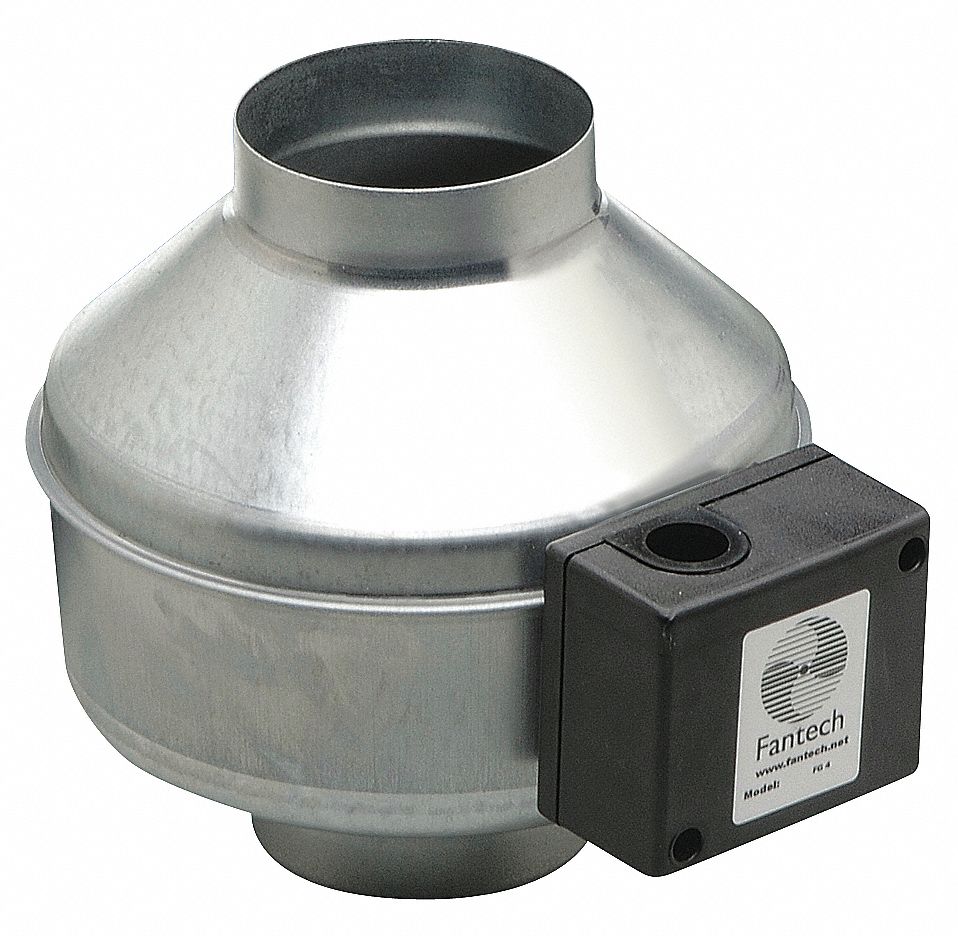

Inline Fan, 8-1/2 In. H, Galvanized Steel

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Inline Fan
Housing Material		Galvanized Steel
Fits Duct Dia.		4"
Voltage		120
Max. Amps		0.66
Max. Wattage		71
Number of Speeds		1
Housing Dia.		8-3/4"
CFM @ Duct		170
CFM @ 0.000-In. SP		170
CFM @ 0.100-In. SP		160
CFM @ 0.200-In. SP		150
CFM @ 0.400-In. SP		134
CFM @ 0.600-In. SP		119
CFM @ 0.800-In. SP		103
CFM @ 1.000-In. SP		86
CFM @ 1.500-In. SP		40
Max. Inlet Temp.		140 Degrees F
Inlet and Outlet Dia.		4"
Hz		60
Phase		1
Motor RPM		2750
Motor Enclosure		External Rotor
Bearing Type		Ball
Height		8-1/2"
Standards		HVI, C-UL-US, cCSAus, AMCA
Includes		Mounting Bracket
