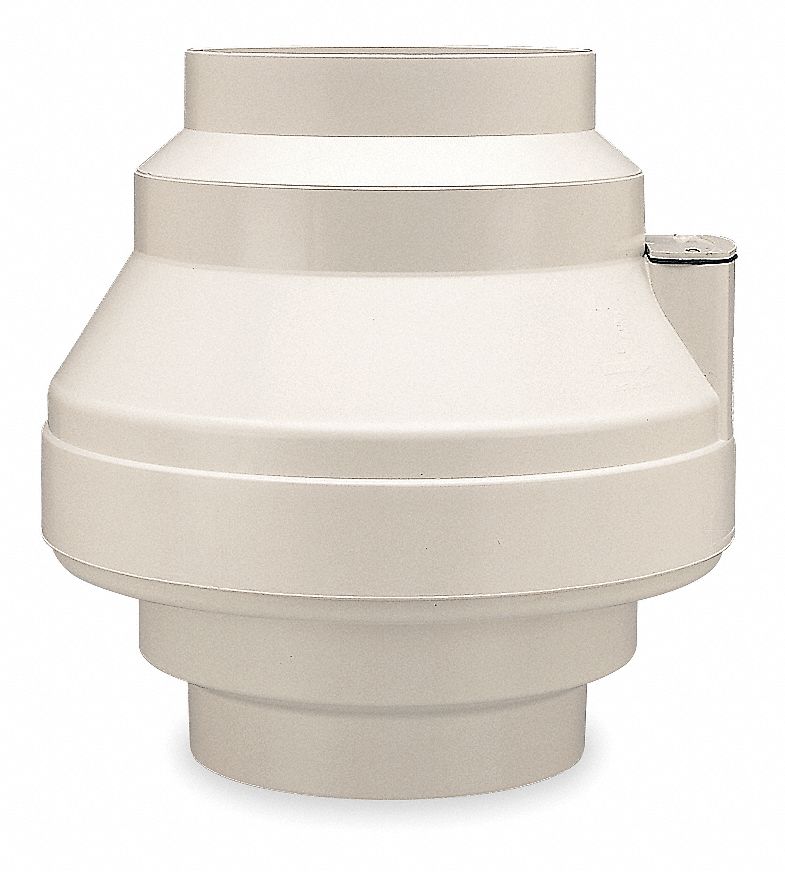

FANTECH Inline Centrifugal Duct Fan, 12-1/4 In. L

Inline Centrifugal Duct Fan, Housing Material Thermoplastic, Fits Duct Dia. 8 In., Voltage 115, Max. Amps 1.35, Max. Wattage 137, Number of Speeds 1, Housing Dia. 13-1/4 In., Length 12-1/4 In.CFM @ 0.000-In. SP 429CFM @ 0.200-In. SP 400Max. Inlet Temp. 140 Degrees F, Inlet and Outlet Dia. 7-7/8 In., 60 Hz, 1 Phase, Motor HP 1/8, Motor RPM 3100, Motor Enclosure Totally EnclosedFlange Width 1-1/2 In., Speed Control Mfr. No. 1DGV1Mounting Position Horizontal or VerticalIncludes Mounting Bracket
  • Grainger Item #5C518
    Price (ea.)$362.00
    BrandFANTECH
    Mfr. Model #FR225
    UNSPSC #40101604
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)10.45
    Availability Typically in Stock
    Catalog Page No.4478
    Country of Origin
    (Country of Origin is subject to change.)
    Germany
  • This item has been designated by the manufacturer as an environmentally preferable product (EPP) because this item is ENERGY STAR Rated.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemInline Centrifugal Duct Fan
Housing MaterialThermoplastic
Fits Duct Dia.8"
Voltage115
Max. Amps1.35
Max. Wattage137
Number of Speeds1
Housing Dia.13-1/4"
Length12-1/4"
CFM @ 0.000-In. SP429
CFM @ 0.200-In. SP400
CFM @ 0.400-In. SP366
CFM @ 0.600-In. SP332
CFM @ 0.800-In. SP297
CFM @ 1.000-In. SP260
CFM @ 1.500-In. SP168
Max. Inlet Temp.140 Degrees F
Inlet and Outlet Dia.7-7/8"
Hz60
Phase1
Motor HP1/8
Motor RPM3100
Motor EnclosureTotally Enclosed
Bearing TypeBall
Flange Width1-1/2"
Speed ControlMfr. No. 1DGV1
Mounting PositionHorizontal or Vertical
StandardsC-UL-US
IncludesMounting Bracket
Green Certification or Other RecognitionENERGY STAR Rated
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
