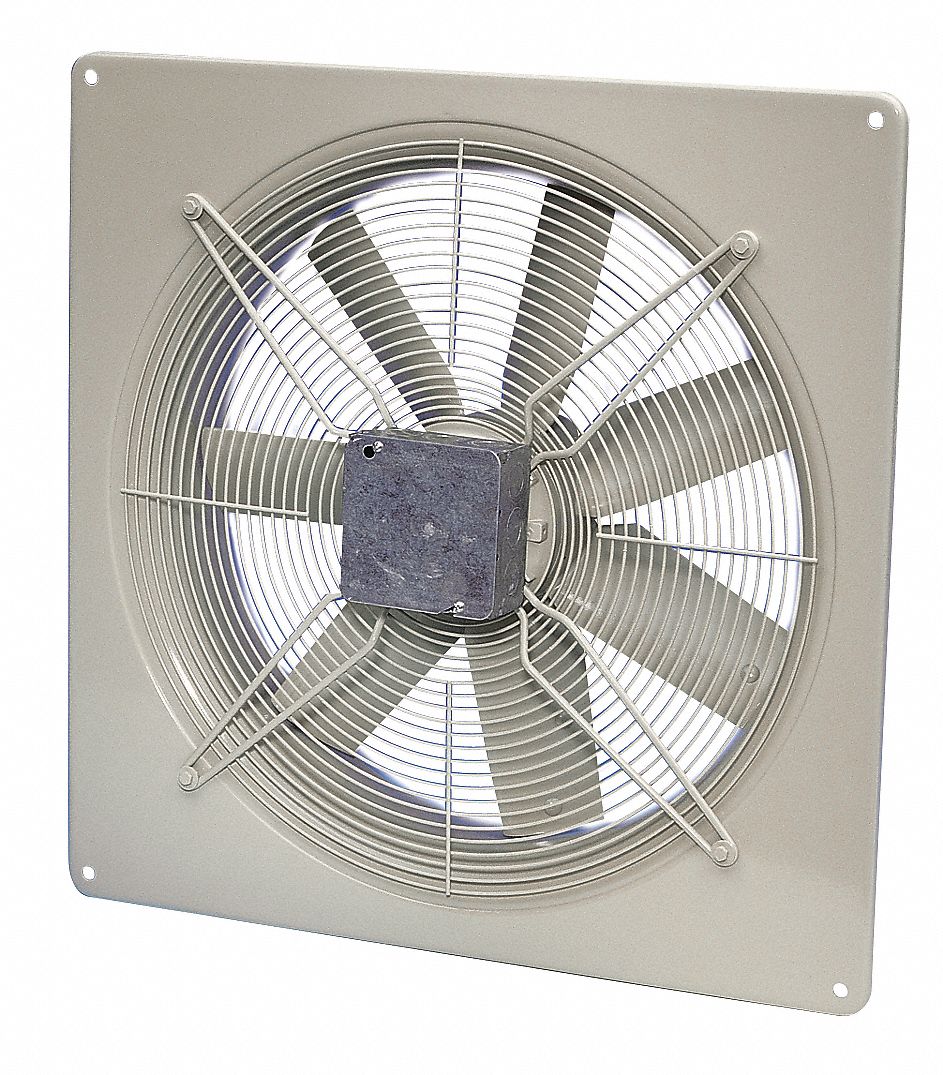

FANTECH Exhaust Fan, 115V, 22 In, 5629 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Exhaust Fan, Standard Duty, Propeller Dia. (In.) 22, CFM @ 0.000-In. SP 5629, CFM @ 0.125-In. SP 5153, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 6.92, Motor HP 1.01, Motor Type External Rotor, Totally Enclosed, Bearing Type Ball, Motor RPM 1000, Max. Ambient Temp. (F) 100, Height (In.) 28-5/8, Width (In.) 28-5/8, Mounting Position Any, Frame Material Steel, Steel, Propeller Material Steel, Number of Blades 7

Grainger Item #	15W709
Price (ea.)	$1,563.00
Brand	FANTECH
Mfr. Model #	FADE 22-6
UNSPSC #	40101502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	55.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Germany

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Exhaust Fan
Type		Standard Duty
Propeller Dia. (In.)		22
CFM @ 0.000-In. SP		5629
CFM @ 0.125-In. SP		5153
CFM @ 0.250-In. SP		4432
Voltage		115
Hz		60
Phase		1
Full Load Amps		6.92
Motor HP		1.01
Motor Type		External Rotor
Motor Enclosure		Totally Enclosed
Motor Insulation		Class B
Bearing Type		Ball
Motor RPM		1000
Watts		756
Max. Ambient Temp. (F)		100
Height (In.)		28-5/8
Width (In.)		28-5/8
Max. Depth (In.)		5-1/4
Outside Dia. (In.)		28-5/8
Inside Dia. (In.)		22
Flange Width (In.)		6-1/8
Venturi Depth (In.)		5-1/4
Venturi Clearance Dia. (In.)		1/2
Mounting Position		Any
Frame Material		Steel
Frame Finish		Powder Coat
Guard Material		Steel
Wire Guard Finish		Powder Coat
Propeller Material		Steel
Number of Blades		7
Agency Compliance		cCSAus, AMCA
Dimension A (In.)		28-5/8
Dimension B (In.)		5-1/4
Dimension C (In.)		26-9/16
Dimension D (In.)		22-1/2
Dimension E (In.)		3/8
Dimension F (In.)		32
