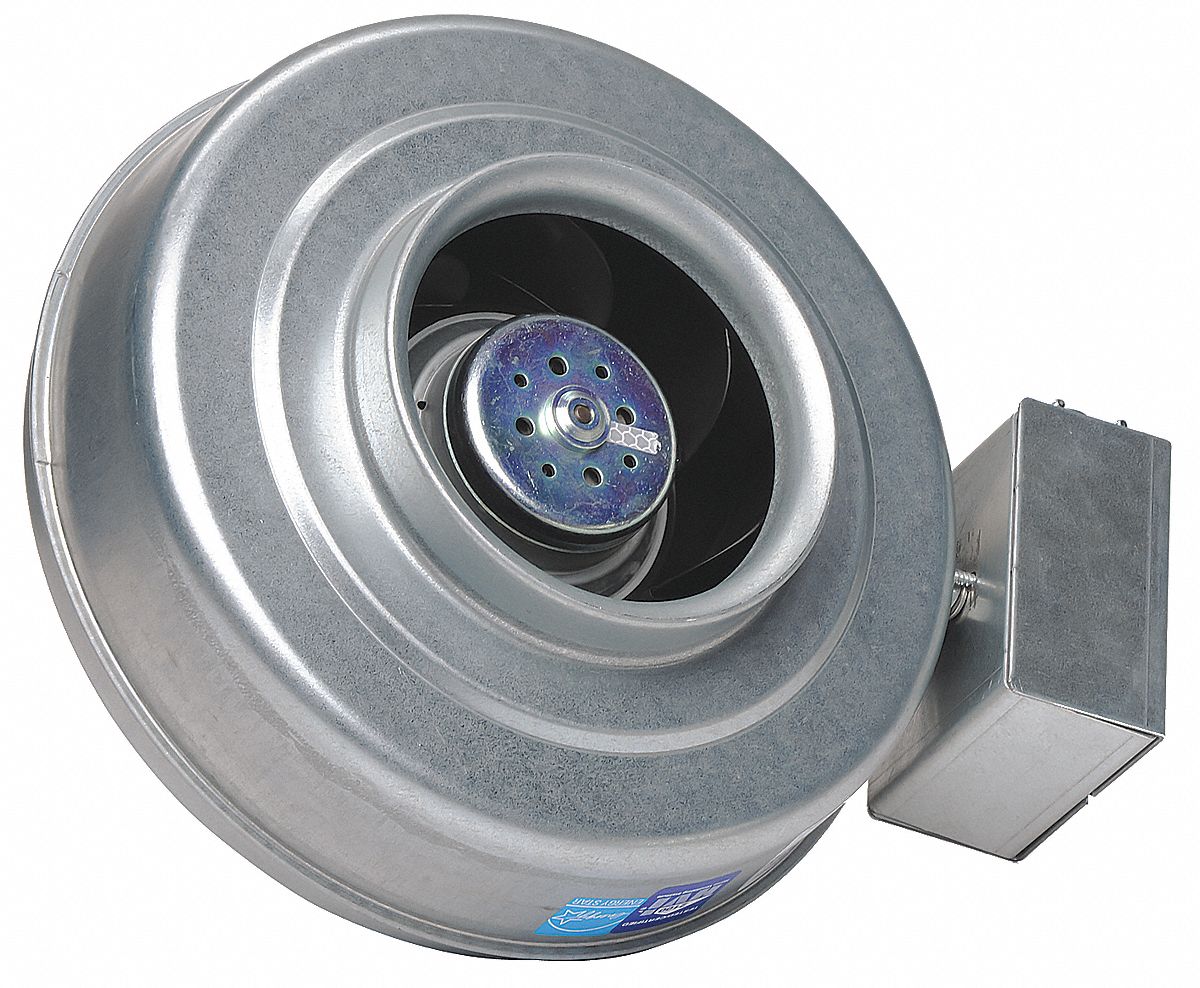

FANTECH Centrifugal Inline Duct Fan, 6 In

Centrifugal Inline Duct Fan, Housing Material Galvanized Steel, Fits Duct Dia. 6 In., Voltage 120, Max. Amps 1.32, Max. Wattage 77.6, Number of Speeds 1, Housing Dia. 13-1/8 In., Length 6-5/8 In., CFM @ Duct 330, CFM @ 0.000-In. SP 363CFM @ 0.200-In. SP 349Max. Inlet Temp. 140 Degrees F, Inlet and Outlet Dia. 6 In., 60 Hz, 1 PhaseMotor RPM 2480, Motor Enclosure 44 IPFlange Width 1 In., Speed Control Yes, Housing Finish G90, Mounting Position Horizontal or Vertical
  • Grainger Item #22N753
    Price (ea.)$442.00
    BrandFANTECH
    Mfr. Model #FG 6M EC
    UNSPSC #40101604
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)11.0
    Availability Item ships within 6 business days from supplier
    Catalog Page No.4478
    Country of Origin
    (Country of Origin is subject to change.)
    Germany
  • This item has been designated by the manufacturer as an environmentally preferable product (EPP) because this item is ENERGY STAR Rated.
  • Price shown may not reflect your price. Sign in or register.
ItemCentrifugal Inline Duct Fan
Housing MaterialGalvanized Steel
Fits Duct Dia.6"
Voltage120
Max. Amps1.32
Max. Wattage77.6
Number of Speeds1
Housing Dia.13-1/8"
Length6-5/8"
CFM @ Duct330
CFM @ 0.000-In. SP363
CFM @ 0.200-In. SP349
CFM @ 0.400-In. SP330
CFM @ 0.450-In. SP295
CFM @ 0.500-In. SP287
CFM @ 0.600-In. SP302
CFM @ 0.800-In. SP271
CFM @ 1.000-In. SP239
CFM @ 1.500-In. SP161
Max. Inlet Temp.140 Degrees F
Inlet and Outlet Dia.6"
Hz60
Phase1
Motor RPM2480
Motor Enclosure44 IP
Bearing TypeBall
Flange Width1"
Speed ControlYes
Housing FinishG90
Mounting PositionHorizontal or Vertical
Green Certification or Other RecognitionENERGY STAR Rated
