Power Transmission
>
Bearings
>
Angular Contact Bearings

FAG BEARINGS Angular Contact Ball Bearing, Bore 70 mm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Angular Contact Ball Bearing, Contact Angle 40 Degrees, Bore Dia. 70 mm, Outside Dia. 150 mm, Width 35 mm, Max RPM 5600, Dynamic Load Capacity 114, 000 N, Static Load Capacity 86, 500 N, Temp Range -22 to 302 F, Cage Material Solid Brass, Oil Lubrication

Grainger Item #	4YWH5
Price (ea.)	$464.00
Brand	FAG BEARINGS
Mfr. Model #	7314-B-MP-UA
UNSPSC #	31171504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.47
Availability	Typically in Stock
Catalog Page No.	206
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

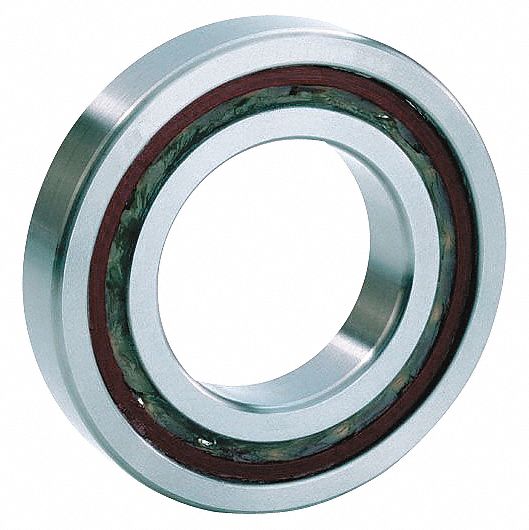

Angular Contact Ball Bearing, Bore 70 mm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Angular Contact Ball Bearing
Contact Angle (Degree)		40
Bore Dia.		70mm
Outside Dia.		150mm
Width		35mm
Max. RPM		5600
Dynamic Load Capacity (N)		114,000
Static Load Capacity (N)		86,500
ABEC Tolerance		5
Temp. Range (F)		-22 to 302
Cage Material		Solid Brass
Lubrication		Oil

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Item #	Description	Brand Mfr. Model #	Availability	Price
4ZYH1	Angular Bearing, 40 Deg, 70mm Bore, 150 OD >More Details... Country of Origin: Japan	NTN 7314BG	Item ships within 9 business days from supplier	$281.00
Be the First to Write a Review



4ZYH2	Angular Bearing, 40 Deg, 70mm Bore, 150 OD >More Details... Country of Origin: Japan	NTN 7314BL1G	Typically in Stock	$284.75
Be the First to Write a Review
