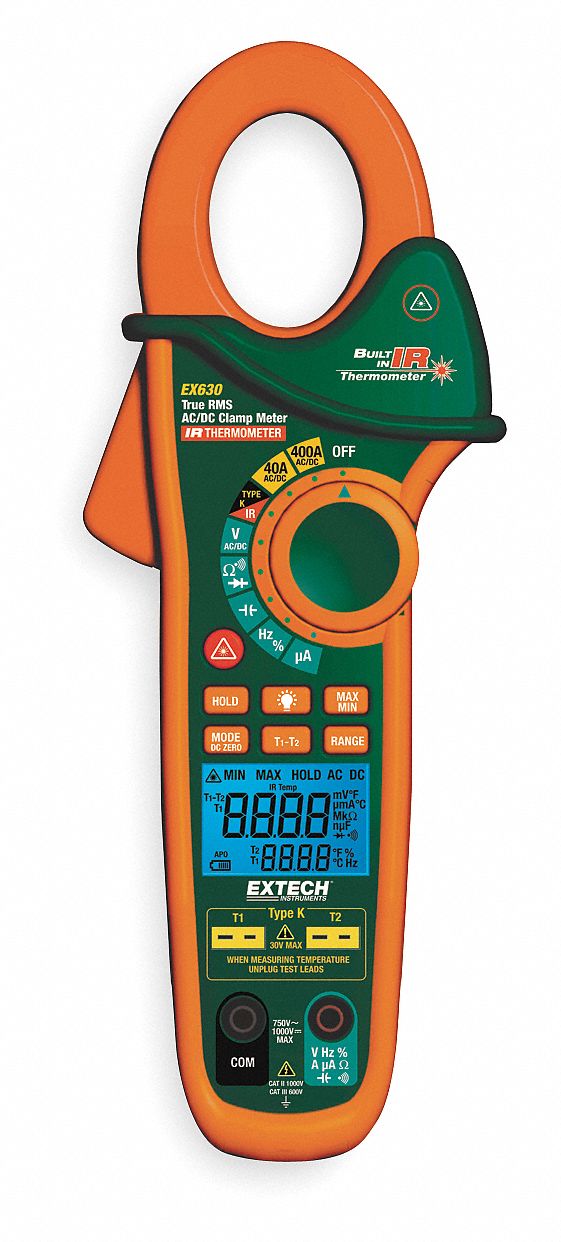

EXTECH Digital Clamp On Ammeter, 400A

Digital Clamp On Ammeter, AC Response Average, 400 Max. AC Amps, 400 Max. DC Amps, 600 Max. AC Volts, 600 Max. DC Volts, 40 Max. Ohms, Jaw Capacity 1-1/4 In., Battery Type 9V, Safety Rating CAT III 600VAudible Continuity Yes, Diode Test Yes, Capacitance 0.01nF to 40mF, Frequency Counter 1 Hz to 40 MHzPeak Hold YesDisplay Backlit LCD, Temp. Range -58 Degrees to 1832 Degrees F, Counts 4000, Calibration Frequency 50 to 60 Hz, Auto Ranging Yes, Data Hold Yes
  • Grainger Item #2HPF8
    Price (ea.)$283.50
    BrandEXTECH
    Mfr. Model #EX623
    UNSPSC #41113601
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)1.65
    Availability Typically in Stock
    Catalog Page No.759
    Country of Origin
    (Country of Origin is subject to change.)
    China
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDigital Clamp On Ammeter
AC ResponseAverage
Max. AC Amps400
Max. DC Amps400
Max. AC Volts600
Max. DC Volts600
Max. Ohms40
Jaw Capacity1-1/4"
Battery Type9V
Safety RatingCAT III 600V
Audible ContinuityYes
Diode TestYes
Capacitance0.01nF to 40mF
Frequency Counter1 Hz to 40 MHz
Peak HoldYes
DisplayBacklit LCD
Temp. Range-58 Degrees to 1832 Degrees F
Counts4000
Calibration Frequency50 to 60 Hz
Max. Conductor Size500MCM
Auto RangingYes
Non-Contact Voltage DetectorYes
Data HoldYes
InrushYes
Auto Power OffYes
Thermometer TypeType K Thermocouple
AC Current Accuracy+/-1.5%
Operating Temp.14 to 122 Degrees F
Special FeaturesTRMS AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Dual Type K Temperature, DC microamp Current, Diode, and Continuity
IncludesTest Leads, Battery, (2) Temp Probes, Carrying Case, Instructions
Manufacturers Warranty Length1 yr.

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Digital Clamp On Ammeter, 400A" /> <div id="BVRRContentValidationID_2HPF8"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-21" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Digital Clamp On Ammeter, 400A" />Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_2HPF8"><div id='6693104' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Digital Clamp On Ammeter, 400A" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">5</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">scubamaster07</span><span itemprop="name"> A full set of reatures are available for field use.</span><span itemprop="description"> The IR thermometer is very handy. It allows a quick look to see if there are loose connections from their heat signature. The single control dial is easy to use and efficient.</span> June 22, 2012<meta itemprop="datePublished" content="2012-06-22" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_2HPF8').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

Optional Accessories

More Accessories

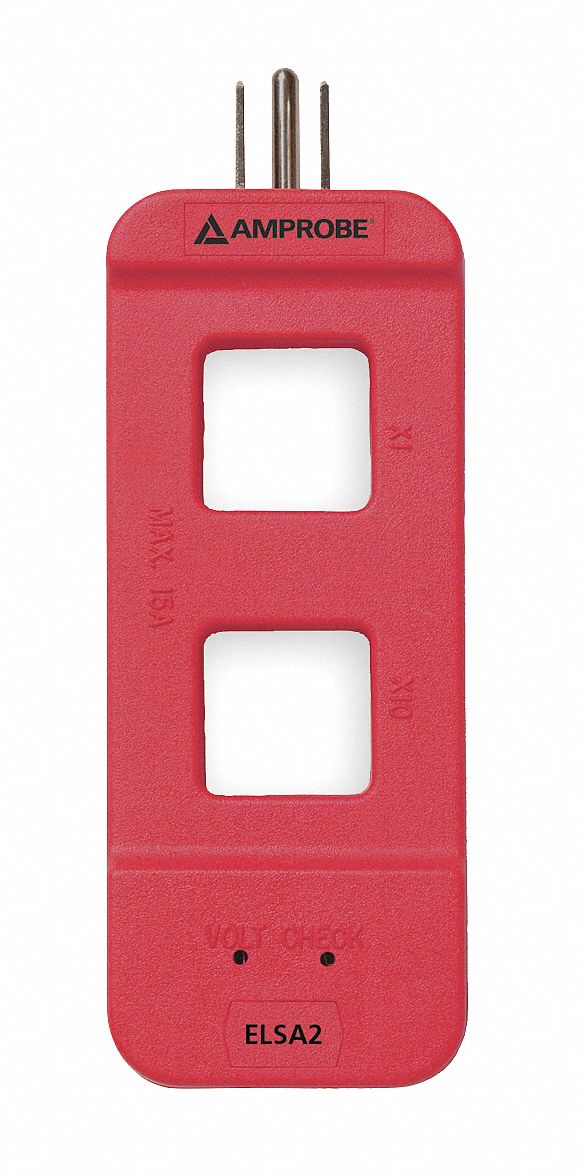

Brand:
