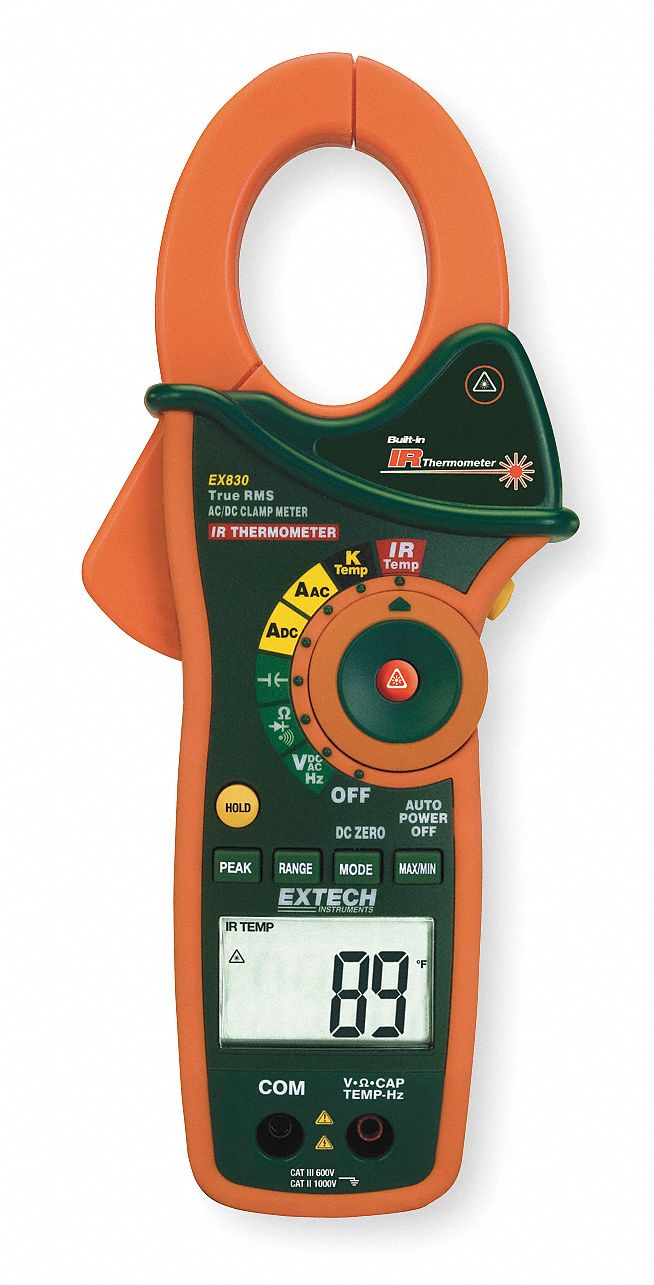

EXTECH Digital Clamp On Ammeter, 1000A

Digital Clamp On Ammeter, AC Response Average, 1000 Max. AC Amps, 1000 Max. DC Amps, 600 Max. AC Volts, 600 Max. DC Volts, 40 Max. Ohms, Jaw Capacity 1-3/4 In., Battery Type 9V, Safety Rating CAT III 600VAudible Continuity Yes, Diode Test Yes, Capacitance 0.001nF to 40mF, Frequency Counter 4 kHzPeak Hold YesDisplay Backlit LCD, Temp. Range -4 Degrees to 1400 Degrees F, Counts 4000, Calibration Frequency 50 to 60 Hz, Auto Ranging Yes, Data Hold Yes
  • Grainger Item #1GUH4
    Price (ea.)$282.50
    BrandEXTECH
    Mfr. Model #EX830
    UNSPSC #41113648
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)1.75
    Availability Typically in Stock
    Catalog Page No.759
    Country of Origin
    (Country of Origin is subject to change.)
    China
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDigital Clamp On Ammeter
AC ResponseAverage
Max. AC Amps1000
Max. DC Amps1000
Max. AC Volts600
Max. DC Volts600
Max. Ohms40
Jaw Capacity1-3/4"
Battery Type9V
Safety RatingCAT III 600V
Audible ContinuityYes
Diode TestYes
Capacitance0.001nF to 40mF
Frequency Counter4 kHz
Peak HoldYes
DisplayBacklit LCD
Temp. Range-4 Degrees to 1400 Degrees F
Counts4000
Calibration Frequency50 to 60 Hz
Max. Conductor Size750MCM
Auto RangingYes
Data HoldYes
InrushYes
Auto Power OffYes
Thermometer TypeType K Thermocouple
AC Current Accuracy+/-2.5%
Operating Temp.41 to 104 Degrees F
Special FeaturesTRMS AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Type K and IR Temperature, Diode and Continuity
IncludesSoft Carrying Case, Test Leads, Battery, Type K Temperature Probe, Instructions
Manufacturers Warranty Length1 yr.
