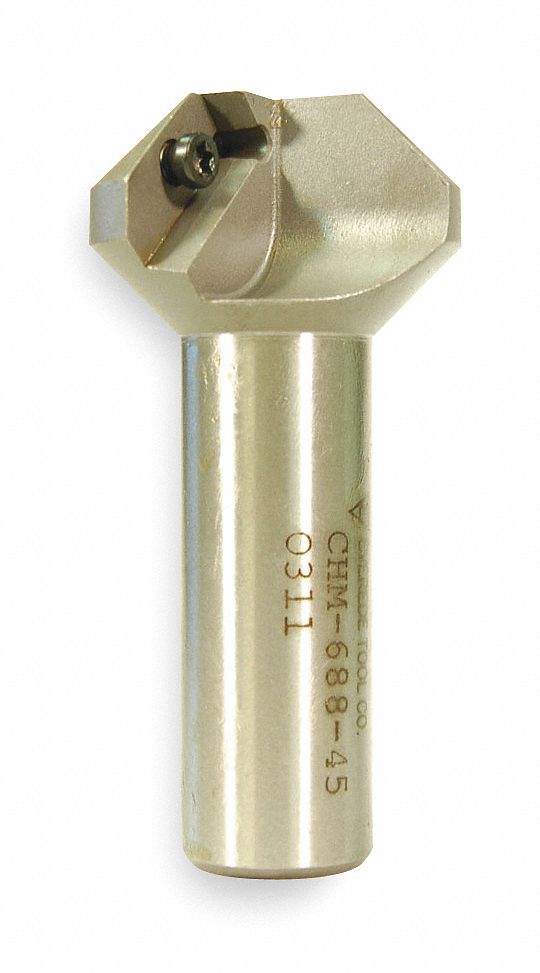

EVEREDE TOOL Indexable Chamfer Mill, 0.688-1.414 Cap

Indexable Chamfer Mill, Chamfer 41 Deg, Included Angle 82 Deg, Cutting Capacity 0.688 To 1.414 In, Length of Cut 0.418 In, Number of Flutes 2, Weldon Shank, Shank Dia 3/4 In, Shank Length 2.0 In, Overall Length 3.0 In, For Use With 2VMV3 Thru 2VMV5 And 2VMV7, Parallelogram Insert Shape, Inscribed Circle 3/8 In, Insert Thickness 3/16 In, Includes Insert Screw And Torx Key
  • Grainger Item #2VMT9
    Price (ea.) N/A
    BrandEVEREDE TOOL
    Mfr. Model #CHM-688-41
    UNSPSC #23153309
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)0.45
    Availability Item no longer available
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)    		Not Available
  •   This Item no longer available and cannot be ordered online.

    Some item(s) may be available through your local branch. An alternate item(s) may be available online. See the Alternate Products tab below.
  • Price shown may not reflect your price. Sign in or register.
ItemIndexable Chamfer Mill
Chamfer (Deg.)41
Included Angle (Deg.)82
Cutting Capacity (In.)0.688 to 1.414
Length of Cut (In.)0.418
Number of Flutes2
ShankWeldon
Shank Dia. (In.)3/4
Shank Length (In.)2.0
Overall Length (In.)3.0
For Use With2VMV3 Thru 2VMV5 And 2VMV7
Insert ShapeParallelogram
Inscribed Circle (In.)3/8
Insert Thickness (In.)3/16
IncludesInsert Screw And Torx Key
