ERICO TVSS, Compact, 100kA, NEMA 4, 1PH, 120/240V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Suppressor, CompactNominal Discharge Current 20kA, Voltage 120/240, Phase 1SMax. Continuing Operating Voltage 170 L-N, 276 L-L, Voltage Protection Rating 600V (L-N), 1000 (L-L), 600V (N-G), 700V (L-G) (modular)Modes of Protection All modes protected, Mounting Style Panelboard, 3/4 In. Straight Nipple (Optional Flush Mounting Plate for Drywall), Material of Construction Aluminum, IP65 (NEMA 4)Length 6.02, Width 3.31, Depth 3.07, Standards CE, IEC 61643-1, UL 1449 Edition 3 Listed Type 1/2

Grainger Item #	18K855
Price (ea.)	$519.00
Brand	ERICO
Mfr. Model #	TDX100C120/240
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.75
Availability	Typically in Stock
Catalog Page No.	303
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

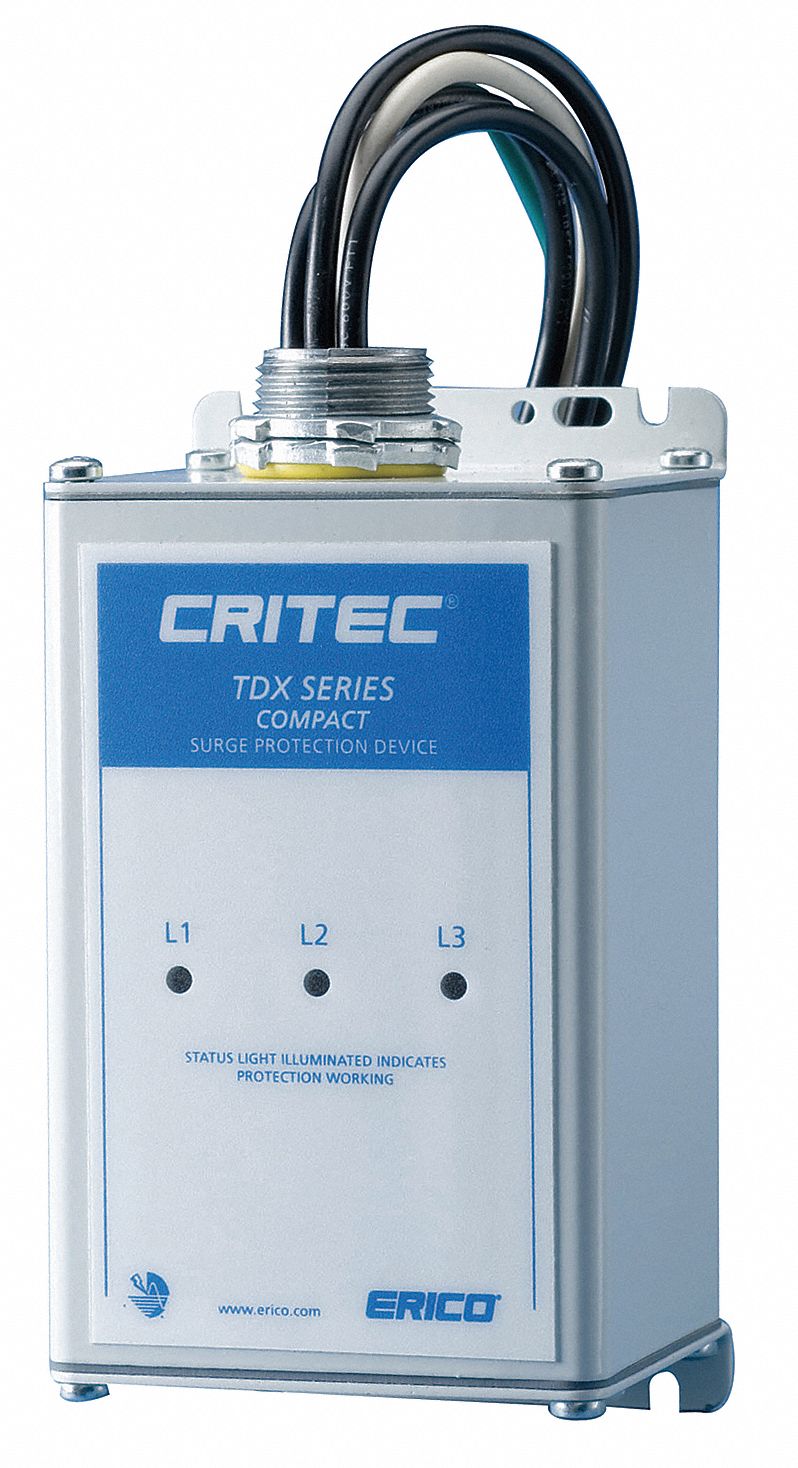

TVSS, Compact, 100kA, NEMA 4, 1PH, 120/240V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Suppressor
Type		Compact
Nominal Discharge Current		20kA
Voltage		120/240
Phase		1S
Max. Continuing Operating Voltage		170 L-N, 276 L-L
Voltage Protection Rating		600V (L-N), 1000 (L-L), 600V (N-G), 700V (L-G) (modular)
Modes of Protection		All modes protected
Mounting Style		Panelboard, 3/4" Straight Nipple (Optional Flush Mounting Plate for Drywall)
Material of Construction		Aluminum, IP65 (NEMA 4)
Length		6.02
Width		3.31
Depth		3.07
Standards		CE, IEC 61643-1, UL 1449 Edition 3 Listed Type 1/2
Footnotes		Can be installed in a Type 1 or 2 location in accordance with the NEC 2008
Green Environmental Attribute		Not Applicable
Green Certification or Other Recognition		RoHS Compliant
