Hydraulics
>
Hydraulic System Components
>
Maintenance Work Supports

ENERPAC Work Support, Threaded, Spring Adv, 1650 lb

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Work Support, Threaded Body, Steel/Bronze, Spring Advanced, Max. Support Force 1650 lb., Stroke 0.38", Pressure Range 703 to 5000 psi, Plunger Contact Spring Force Extended 2.0 lb., Plunger Contact Spring Force Retracted 5.8 lb., Oil Capacity 0.04 cu. in., Max. Oil Flow 40 cu. in./min., Oil Port Size #2 SAE, Extended Height 3.51", Retracted Height 3.13", Body Thread 1-3/8"-16, Outside Dia. 1-3/8", Plunger Dia. 0.591", Includes Contact Button, Manifold Seal

Grainger Item #	5UWZ3
Price (ea.)	$301.50
Brand	ENERPAC
Mfr. Model #	WST71
UNSPSC #	27121604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.49
Availability	Typically in Stock
Catalog Page No.	3859
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

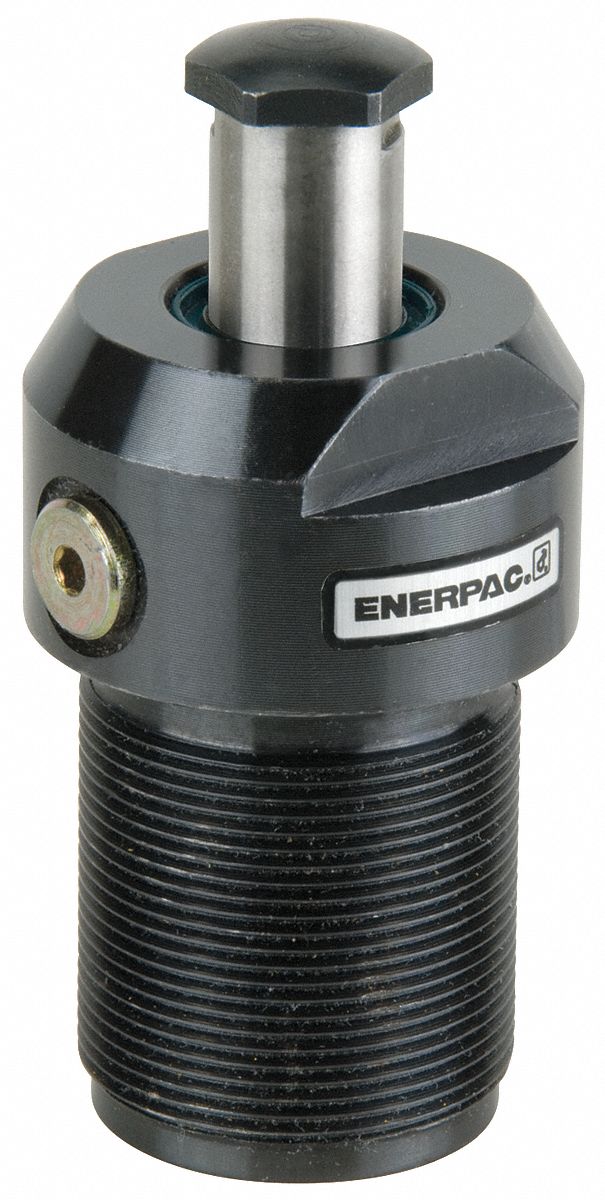

Work Support, Threaded, Spring Adv, 1650 lb

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Work Support
Type		Threaded Body
Material of Construction		Steel/Bronze
Function		Spring Advanced
Max. Support Force		1650 lb.
Stroke		0.38"
Pressure Range		703 to 5000 psi
Plunger Contact Spring Force Extended		2.0 lb.
Plunger Contact Spring Force Retracted		5.8 lb.
Oil Capacity		0.04 cu. in.
Max. Oil Flow		40 cu. in./min.
Oil Port Size		#2 SAE
Extended Height		3.51"
Retracted Height		3.13"
Body Thread		1-3/8"-16
Outside Dia.		1-3/8"
Plunger Dia.		0.591"
Includes		Contact Button, Manifold Seal
