EM&S Unit Bearing Motor, 3/8 In. L, Shaded Pole

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Unit Bearing Motor, Shaded Pole, Totally Enclosed Air-Over, 1/150 HP, 1550 Nameplate RPM, NEMA/IEC Frame Nonstandard, Voltage 115, Hz 60, 1 Phase, Full Load Amps 0.4, Output Watts 5, Rear and Double Foot Mounting, Thermal Protection Impedance, Insulation Class B, Service Factor 1.0, Unit Bearings, Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 2-7/8 In., Shaft Type Threaded 1/4-20, Includes Speed Nut, Mounting Screws

Grainger Item #	5YJN8
Price (ea.)	$40.20
Brand	EM&S
Mfr. Model #	SPFBC51
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.69
Availability	Typically in Stock
Catalog Page No.	59
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

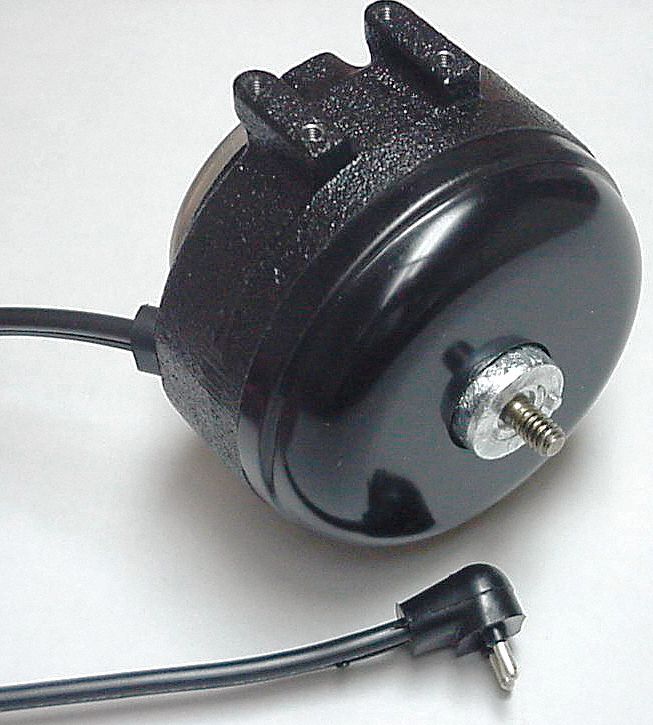

Unit Bearing Motor, 3/8 In. L, Shaded Pole

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Bearing Motor
Motor Type		Shaded Pole
Enclosure		Totally Enclosed Air-Over
HP		1/150
Nameplate RPM		1550
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		115
Hz		60
Phase		1
Full Load Amps		0.4
Output Watts		5
Mounting		Rear and Double Foot
Thermal Protection		Impedance
Insulation Class		B
Service Factor		1.0
Bearings		Unit
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CWLE
Length Less Shaft		2-1/2"
Overall Length		2-7/8"
Shaft Type		Threaded 1/4-20
Shaft Dia.		1/4"
Shaft Length		3/8"
Shaft Orientation		Horizontal or Up
Body Dia.		3-1/2"
Bolt Circle Dia.		2-13/16"
RPM Range		1400-1800
Includes		Speed Nut, Mounting Screws
