Motors
>
HVAC Motors
>
Unit Bearing Motors

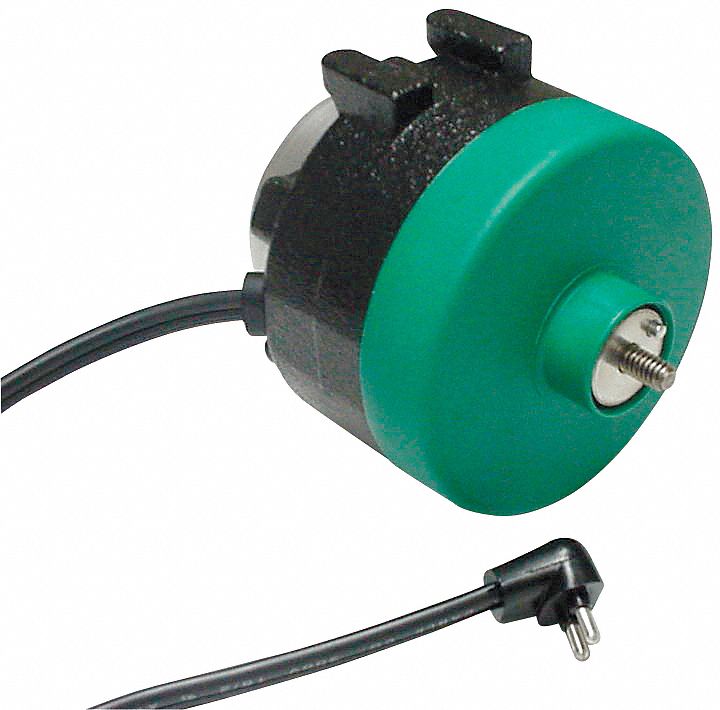

EM&S Unit Bearing Motor, ECM, 7/16 In. L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Unit Bearing Motor, ECM, Totally Enclosed Air-Over, 1/50 HP, 1550 Nameplate RPM, NEMA/IEC Frame Nonstandard, Voltage 115, Hz 60, 1 Phase, Full Load Amps 0.58, Output Watts 14 to 16, Rear and Double Foot Mounting, Thermal Protection Auto, Insulation Class A, Service Factor 1.0, Unit Bearings, Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 4-1/8 In., Shaft Type Threaded 1/4-20, Includes Speed Nut, Mounting Screws

Grainger Item #	5ULC9
Price (ea.)	$153.75
Brand	EM&S
Mfr. Model #	UTB1CC1551EM56
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.72
Availability	Typically in Stock
Catalog Page No.	59
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
|
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Bearing Motor
Motor Type		ECM
Enclosure		Totally Enclosed Air-Over
HP		1/50
Nameplate RPM		1550
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		115
Hz		60
Phase		1
Full Load Amps		0.58
Output Watts		14 to 16
Mounting		Rear and Double Foot
Thermal Protection		Auto
Insulation Class		A
Service Factor		1.0
Bearings		Unit
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CWLE
Length Less Shaft		3-3/4"
Overall Length		4-1/8"
Shaft Type		Threaded 1/4-20
Shaft Dia.		1/4"
Shaft Length		7/16"
Shaft Orientation		Horizontal or Up
Body Dia.		3-1/2"
Bolt Circle Dia.		2-13/16"
RPM Range		1400-1800
Includes		Speed Nut, Mounting Screws
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
