EM&S Brushless Unit Bearing Motor, ECM, 1/10 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Brushless Unit Bearing Motor, ECM, Totally Enclosed Air-Over, 1/10 HP, 1550 Nameplate RPM, NEMA/IEC Frame 3.3, Voltage 230, Hz 60, 1 Phase, Full Load Amps 1.0, Output Watts 100, Stud Mounting, Thermal Protection Auto, Insulation Class AUnit Bearings, Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 7 In., Shaft Type Flat, Includes (4) #10-32 Nuts

Grainger Item #	5ULD2
Price (ea.)	$183.75
Brand	EM&S
Mfr. Model #	UTAGF1552JA
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.75
Availability	Typically in Stock
Catalog Page No.	61
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
|
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

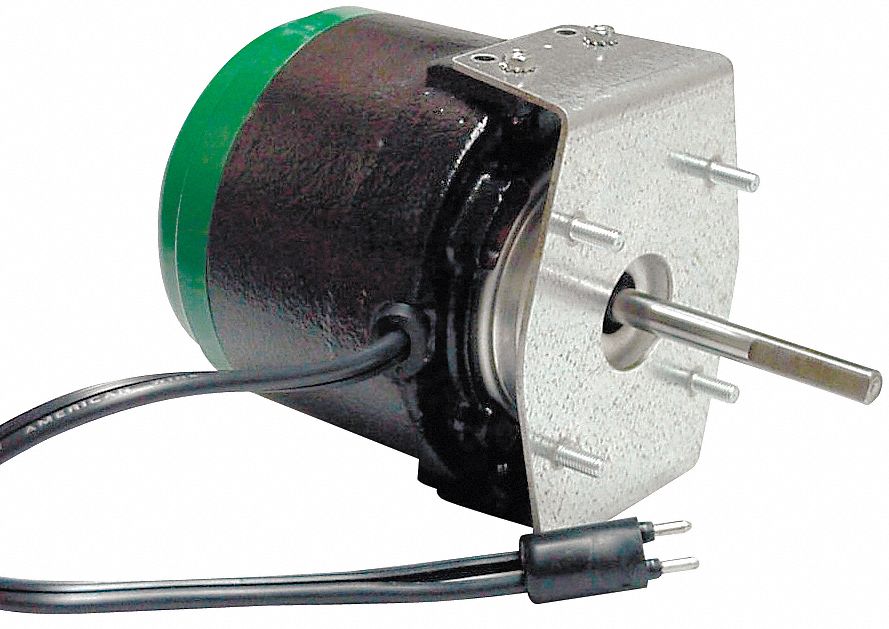

Brushless Unit Bearing Motor, ECM, 1/10 HP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Brushless Unit Bearing Motor
Motor Type		ECM
Enclosure		Totally Enclosed Air-Over
HP		1/10
Nameplate RPM		1550
NEMA/IEC Frame		3.3
Frame		Nonstandard
Voltage		230
Hz		60
Phase		1
Full Load Amps		1.0
Output Watts		100
Mounting		Stud
Thermal Protection		Auto
Insulation Class		A
Bearings		Unit
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CWLE
Length Less Shaft		4-3/8"
Overall Length		7"
Shaft Type		Flat
Shaft Dia.		5/16"
Shaft Length		2-5/8"
Shaft Orientation		All Angle
Body Dia.		4-1/4"
Bolt Circle Dia.		2-53/64"
RPM Range		1400-1800
Includes		(4) #10-32 Nuts
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
