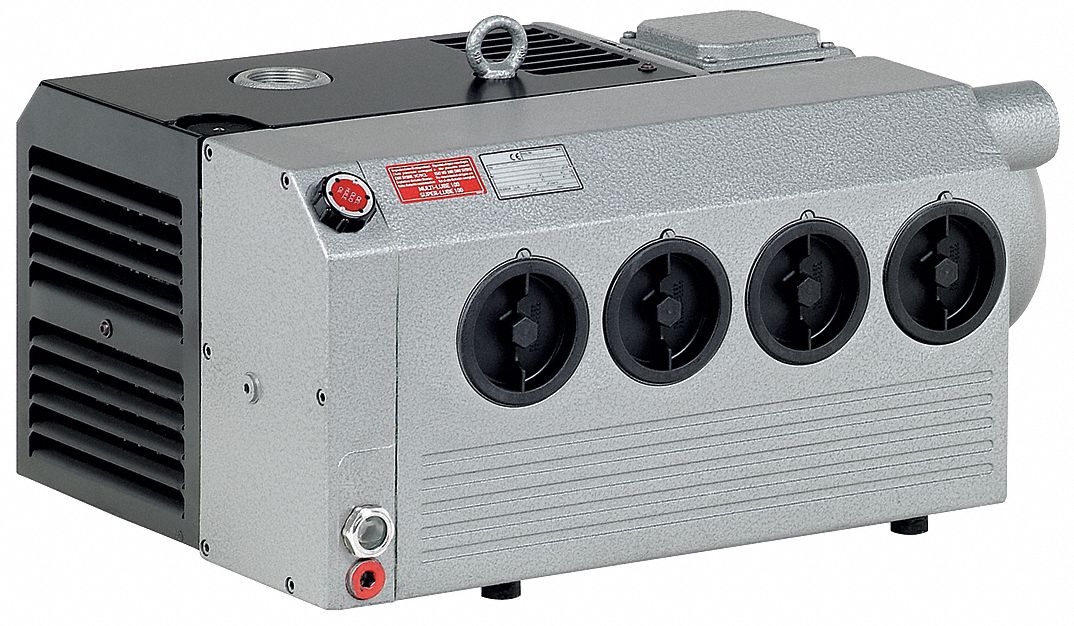

ELMO RIETSCHLE Vacuum Pump, Rotary Vane, 2 HP, 200V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vacuum Pump, Rotary Vane, 2 HP, Voltage 200, 6.9 Amps AC, 60 Hz, 3 Phase, End Vacuum 29.91 In. Hg, Displacement 35 cfm, Ultimate Pressure Torr 0.375, Free Air CFM @ 0 Vacuum 35, Free Air CFM @ 20 Vac 11.2, Max. Flow 35 cfm, NPT Inlet 1-1/4 In., Length 23-3/4 In., Height 10-1/2 In., Width 13-1/4 In., Oil Capacity 3 qt., Height with Filter 10-1/2 In., Duty Continuous, Motor Type TEFC, 1800 RPM, Max. dBA 67, Body Material Cast Iron, Painted Finish, Filter Internal, Reservoir Internal, Ballast Yes

Grainger Item #	36Z455
Price (ea.)	$4,777.00
Brand	ELMO RIETSCHLE
Mfr. Model #	VC-50
UNSPSC #	40151502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	185.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Germany

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Vacuum Pump
Type		Rotary Vane
HP		2
Voltage		200
Amps AC		6.9
Hz		60
Phase		3
End Vacuum		29.91" Hg
Displacement		35 cfm
Ultimate Pressure Torr		0.375
Free Air CFM @ 0 Vacuum		35
Free Air CFM @ 20 Vac		11.2
Max. Flow		35 cfm
NPT Inlet		1-1/4"
Length		23-3/4"
Height		10-1/2"
Width		13-1/4"
Oil Capacity		3 qt.
Height with Filter		10-1/2"
Duty		Continuous
Motor Type		TEFC
RPM		1800
Max. dBA		67
Body Material		Cast Iron
Finish		Painted
Filter		Internal
Reservoir		Internal
Ballast		Yes
Design		Industrial
Application		Air and Inert Gas
Features		Gas Ballast Valve, Non-Return Valve, Aluminum Alloy Vanes, Mesh Filter Screen, Exhaust Filter, Filter Monitor Gauge
