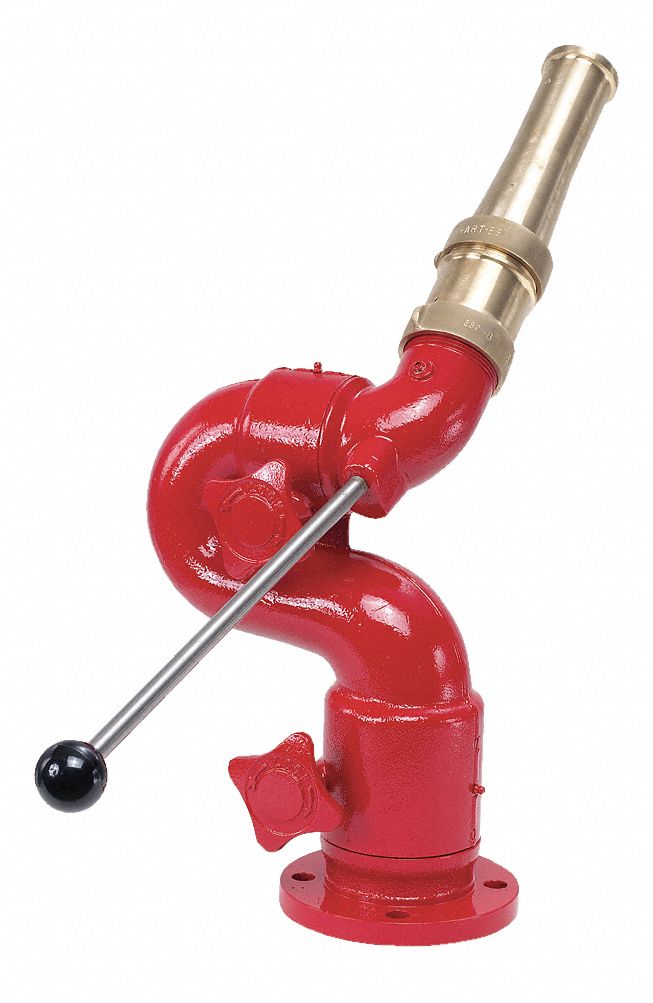

ELKHART BRASS Monitor, 1250 gpm, Tiller Control

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Monitor, Copperhead, Apparatus or Fixed, Mounting 4 In. 150 lb. ANSI Flange, Inlet 4 In. Flange, Material of Construction Brass, Red Urethane Finish, Outlet 2-1/2 In. M NHT, Control Tiller, Max. Flow 1250 gpm, Size 21.21 In.L x 14.61 In.W x 18.72 In.H, Waterway 2-1/2 In., Vertical Travel V-45 to +90 (135 Degrees )/V-49 to +86 (135 Degrees ), Horizontal Travel 360 Degrees , Material Brass, Red Urethane Finish, Height 18.72 In., Flow 1250 gpm, Width 14.61 In., Length 21.21 In.

Grainger Item #	15Z204
Price (ea.)	$1,364.00
Brand	ELKHART BRASS
Mfr. Model #	8593
UNSPSC #	40141726
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	73.55
Availability	Typically in Stock
Catalog Page No.	4074
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Monitor
Mounting		4" 150 lb. ANSI Flange
Inlet		4" Flange
Outlet		2-1/2" M NHT
Control		Tiller
Max. Flow		1250 gpm
Waterway		2-1/2"
Vertical Travel		V-45 to +90 (135 Degrees )/V-49 to +86 (135 Degrees )
Horizontal Travel		360 Degrees
Material		Brass
Finish		Red Urethane
Height		18.72"
Width		14.61"
Length		21.21"
Pivot Height		14.67"
Max. Pressure		200 psi
Friction Loss		16 psi at 1250 gpm/ 12 psi at 1000 gpm
Includes		Sealed Bearings
Standards		FM,CE
