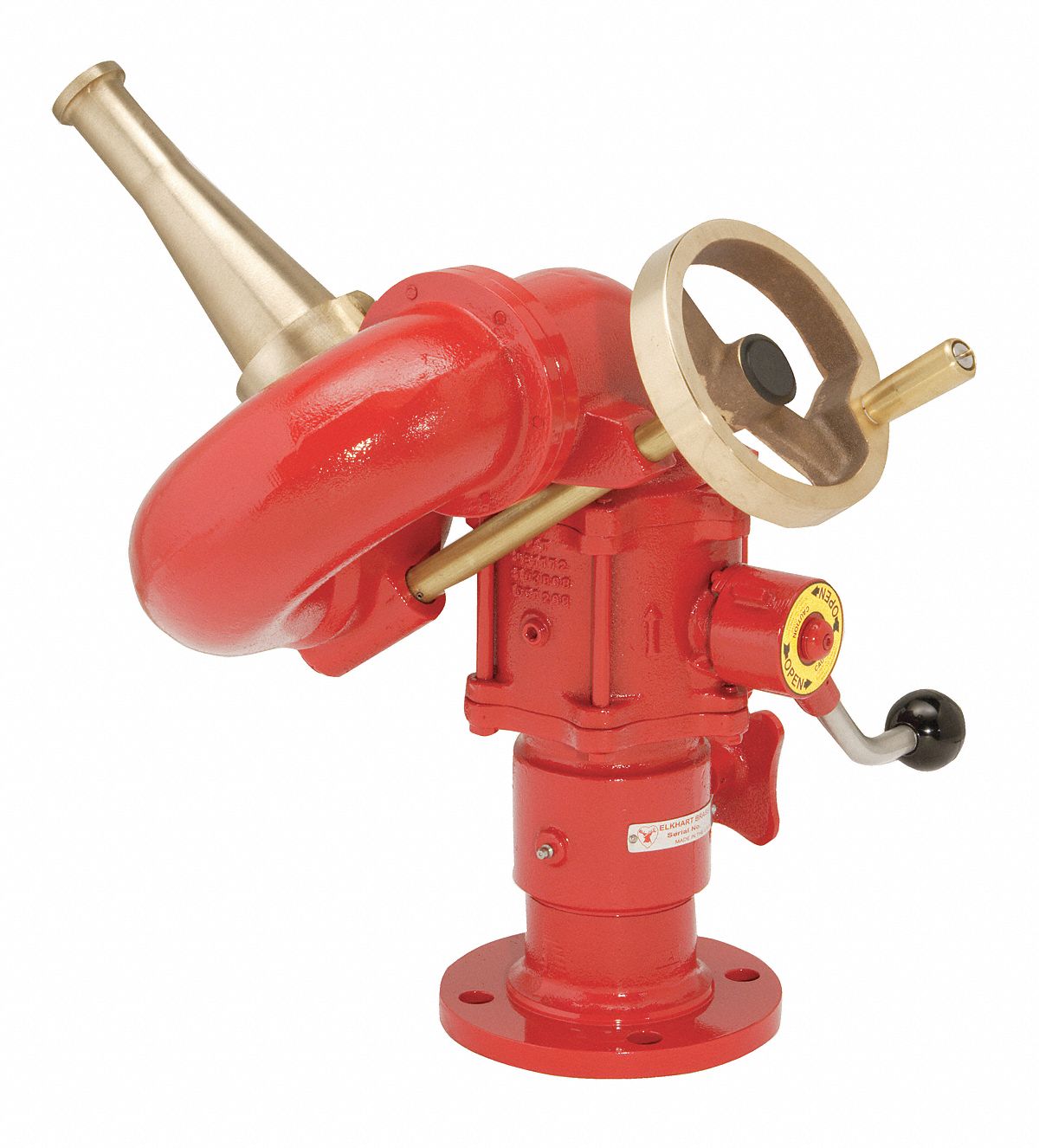

ELKHART BRASS Monitor, 1250 gpm, Handwheel

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Monitor, Apparatus or Fixed, Mounting 4 In. 150 lb. ANSI Flange, Inlet 4 In. Flange, Material of Construction Brass, Red Urethane Finish, Outlet 2-1/2 In. M NHT, Control Handwheel, Max. Flow 1250 gpm, Size 20.32 In.L x 15.61 In.W x 13.04 In.H, Waterway 2-1/2 In., Vertical Travel 150 Degrees (90 Degrees Above, 60 Degrees Below Horizontal), Horizontal Travel 360 Degrees , Material Brass, Red Urethane Finish, Height 13.04 In., Flow 1250 gpm, Width 15.61 In., Length 20.32 In.

Grainger Item #	15Z202
Price (ea.)	$1,576.00
Brand	ELKHART BRASS
Mfr. Model #	8393
UNSPSC #	40141726
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	64.1
Availability	Typically in Stock
Catalog Page No.	4074
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Monitor
Mounting		4" 150 lb. ANSI Flange
Inlet		4" Flange
Outlet		2-1/2" M NHT
Control		Handwheel
Max. Flow		1250 gpm
Waterway		2-1/2"
Vertical Travel		150 Degrees (90 Degrees Above, 60 Degrees Below Horizontal)
Horizontal Travel		360 Degrees
Material		Brass
Finish		Red Urethane
Height		13.04"
Width		15.61"
Length		20.32"
Pivot Height		4.08"
Max. Pressure		200 psi
Friction Loss		27 psi at 1250 gpm/ 17 psi at 1000 gpm/ 9 psi at 750 gpm
Includes		Grease Zerks
Standards		FM, CE
