Lab Supplies
>
Water Quality and Purification
>
Water Purification Systems

ELGA Water Purification System, Type II, 1Lpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

WATER PURIFICATION SYSTEM TAP TO TYPE II PIPE SIZE IN. 5/16 CONNECTION 1/2 FNPT OR 5/16 QUICK DISCONNECT COLOR WHITE WITH BLUE MARKINGS FILTER MEDIA CARBON PRETREATMENT RO ION-EXCHANGE WIDTH IN. 16.1 DEPTH IN. 10.6 HEIGHT IN. 18.1 MAX.

Grainger Item #	16D297
Price (ea.)	$5,386.00
Brand	ELGA
Mfr. Model #	OS007BPM1
UNSPSC #	41104901
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	31.0
Availability	Item ships within 41 business days from supplier
Catalog Page No.	894
Country of Origin (Country of Origin is subject to change.)	United Kingdom

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

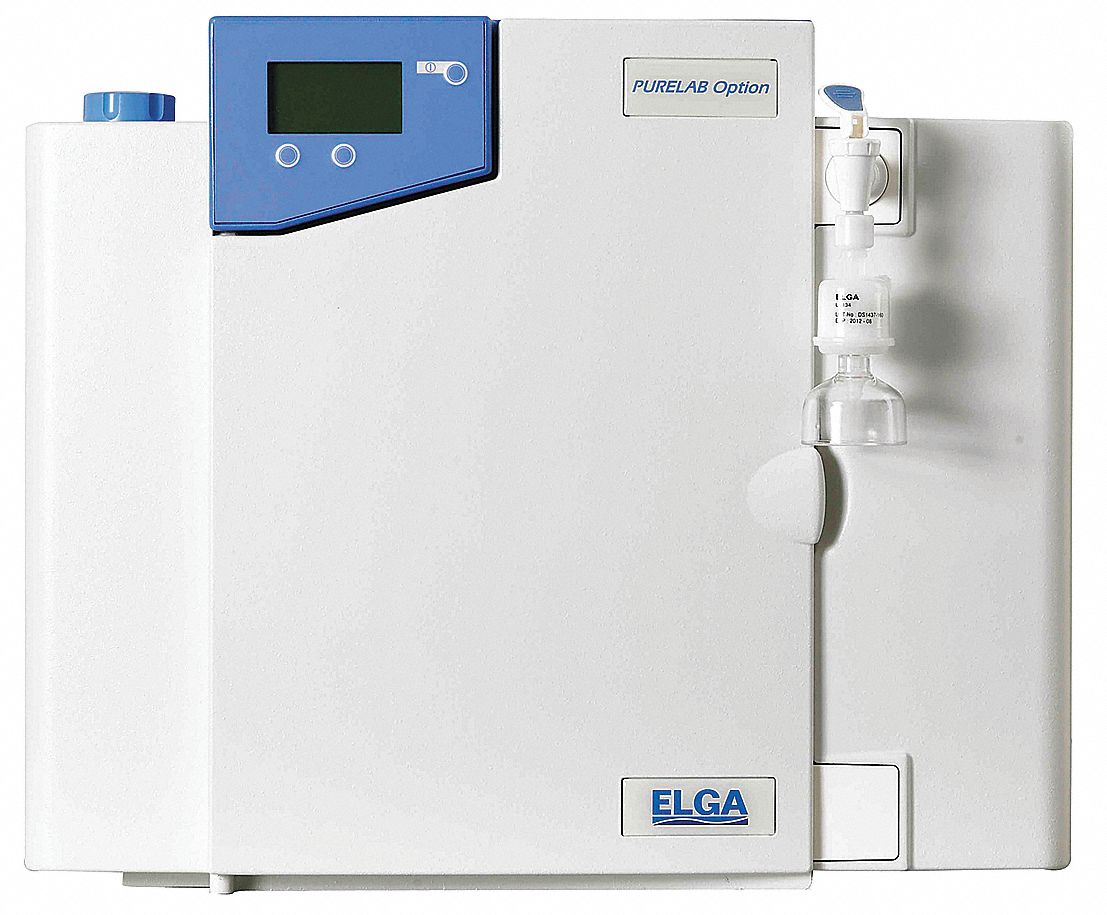

Water Purification System, Type II, 1Lpm

Enlarge Image

Item		Water Purification System
Inlet Pipe Size		5/16" O.D. Tube
Outlet Pipe Size		7/16" Hose Barb, 1/4" FNPT
Max. Inlet Pressure Range Cord Material		0 to 30 psi
Purified Water Resistivity		1- Greater Than10MOhms
Water Type		Type II
Max. Output Flow		1Lpm
Voltage		100-240VAC
Inlet Water Temp. Range		1-35 Degrees C
Total Organic Carbons		Less Than30 ppb
Particulate Removal		0.2um When Fitted with LC134 POU Filter
Application		Tap-to-Type II
Includes		1/2" FNPT Adapter

PURELAB� Water Purification Systems
Systems incorporate multiple technologies into a single unit to supply laboratory-grade Type II to Type I+ purified water. Type II purification is for general laboratory applications including media preparation; Type II+ provides higher organic purity. Type I water is ultrapure for water-critical applications such as HPLC (high-performance liquid chromatography) mobile phase preparation. Also used as blanks and sample dilution for key analytical techniques, in molecular biology applications, and for mammalian cell culture. Type I+ water is used in molecular biology techniques, ultra trace analysis, and ICPMS (inductively coupled plasma mass spectrometry). Purification technologies include the following. Reverse osmosis (RO) forces water through a semipermeable membrane to remove most organics, 90% of ionic contaminants, and nearly all particles. Ionic technology (ion exchange) uses a resin to cleanse dissolved inorganic contaminants. UV (ultraviolet) light technology destroys microorganisms. Ultrafiltration (UF) uses hydrostatic pressure to force water against a semipermeable membrane to reduce the concentration of microorganisms and large organic molecules to acceptable levels. Where applicable, systems include factory-installed reverse osmosis (RO) membranes, UV lamps, and ultramicrofilters (UMF). Removable filters and consumables such as Purification Cartridges, point-of-use filters, biofilters, and disinfection tablets are sold separately, this page or on Grainger.com�; search for "water purification system consumables" or "water purification system accessories."

100-240VAC

Option-R and Option-S
Employ RO feed-optimized resin mixes to provide on-demand purified water for general laboratory applications. Dispensing tap is designed for easy access. Suitable for benchtop use or wall-mounting. Must be used with Elga storage tank or docking vessel, sold separately on Grainger.com�; search for "elga storage tank" or "elga docking vessel." Option-R, Nos. 16D295 and 16D296, recirculate purified water through a UV chamber to maintain peak purity and low bacterial counts. Option-S, Nos. 16D297 and 16D298, can serve as feeders for Type I ultrapure water systems.

Option-R and Option-S produce Type II or III water from tap water source Option-R produce Type II+ purified water Option-S produce Type II purified water Flow rate: 7.5L/hr. Nos. 16D295 and 16D297, 15L/hr. Nos. 16D296 and 16D298 With raw water boost pump
