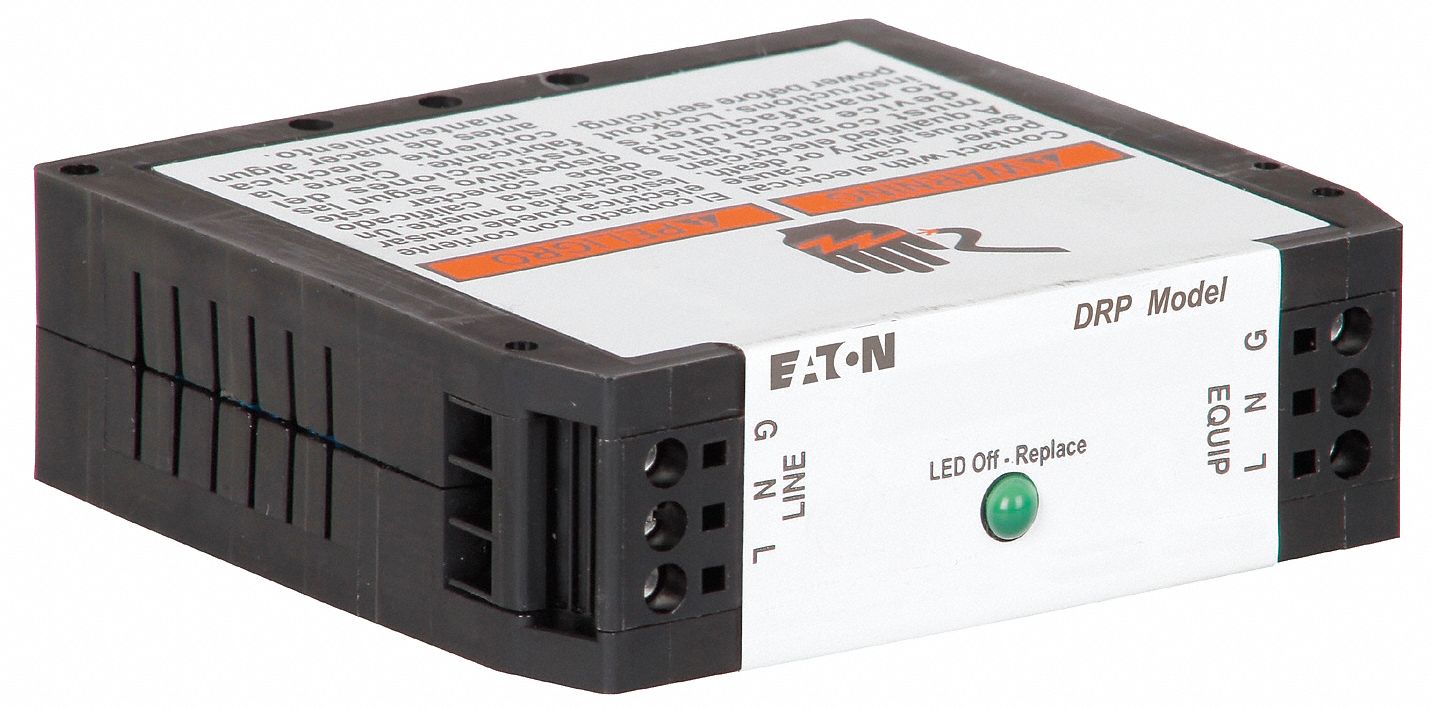

EATON Surge Protector, DIN Rail, 48VAC, 10A

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Protection Device, DIN Rail, Location Type 2Voltage 48VAC, Phase 1Number of Poles 1, Max. Surge Current Per Phase 25, Max. Surge Current Per Mode 12.5Modes of Protection 3, Mounting Style DIN Rail, Material of Construction PlasticNoise Reduction Rating NRR 40dB, Wire Gauge # 24 AWG-# 12 AWGLength 3.31 In., Width 0.98 In., Depth 3.36 In., Standards UL1283 4th Edition for line filtration

Grainger Item #	5RAC9
Price (ea.)	$200.50
Brand	EATON
Mfr. Model #	DRP-48
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.45
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		DIN Rail
Location Type		2
Voltage		48AC
Phase		1
Number of Poles		1
Max. Surge Current Per Phase		25
Max. Surge Current Per Mode		12.5
Modes of Protection		3
Mounting Style		DIN Rail
Material of Construction		Plastic
Noise Reduction Rating NRR		40dB
Wire Gauge		# 24 AWG-# 12 AWG
Length		3.31"
Width		0.98"
Depth		3.36"
Standards		UL1283 4th Edition for line filtration
