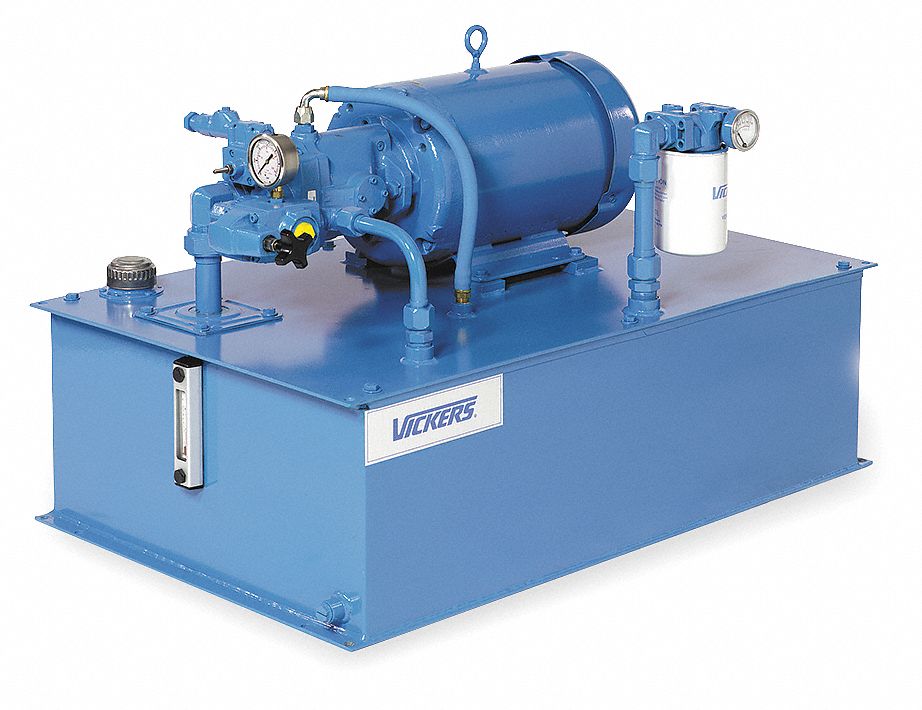

EATON Hyd Power Unit, 10 HP, 10.5 GPM, 1400 PSI

Hydraulic Power Unit, AC, 10 HP, 10.5 GPM Fixed Displacement Pump, 1.39 Cu-In per Revolution, Max Pressure 1400 PSI, Voltage 230/460, 3 Phase, 60/50 Hz, 28.4/14.2 Full Load Amps, Pressure Port SAE #12, Return Port SAE #16, 30 Gallon Reservoir Capacity, Horizontal Mounting, In-Line Adjustable Relief, 1800 RPM, Height 23 In, Width 24 In, Length 38 In, Not Intended For Use With Manifold Valves, Requires Remote Valve
  • Grainger Item #4DDN2
    Price (ea.)$6,369.00
    BrandEATON
    Mfr. Model #4995633
    UNSPSC #39121004
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)440.0
    Availability Item ships within 13 business days from supplier
    Catalog Page No.3864
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
ItemHydraulic Power Unit
TypeAC
HP10
GPM10.5
GPM @ 500 PSI10.5
GPM @ 2000 PSI10.5
Cu.-In. per Revolution1.39
Max. Pressure (PSI)1400
Voltage230/460
Phase3
Hz60/50
Full Load Amps28.4/14.2
Pressure PortSAE #12
Return PortSAE #16
Reservoir Capacity30 gal.
MountingHorizontal
RPM1800
Height (In.)23
Width (In.)24
Length (In.)38
Built-In FeaturesAdjustable Relief Valve

  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Hyd Power Unit, 10 HP, 10.5 GPM, 1400 PSI" /> <div id="BVRRContentValidationID_4DDN2"><div ><!--begin-aggregate-rating--> <meta name="bvDateModified" content="2013-06-17" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Hyd Power Unit, 10 HP, 10.5 GPM, 1400 PSI" />Rated <span itemprop="ratingValue">2</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_4DDN2"><div id='12460131' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Hyd Power Unit, 10 HP, 10.5 GPM, 1400 PSI" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">2</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Rod69</span><span itemprop="description"> I have operated this unit for about 6 month and the relief valve went out on it. vickers offers a 3 year warrant on this but the sirvice center wants you to bring the unit in to them to have it repaired. not a good situation when this unit in depended on for your day to day opperation.</span> November 15, 2012<meta itemprop="datePublished" content="2012-11-15" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_4DDN2').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>
