Disc Spring, Belleville, Steel, 0.317, PK 12

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Disc Spring, Belleville, High Carbon Steel, Min Inside Dia 0.317 In, Max Outside Dia 0.625 In, Thickness 0.022 In, Overall Height 0.042 In, Load 69 Lbs, Deflection @ Load 0.010 In, Flat Load 1350 Lbs, Meets/Exceeds ASTM-A684, Package 12

Grainger Item #	1NCY9
Price (pk.)	$5.81
Package Qty.	12
Brand	GRAINGER APPROVED VENDOR
Mfr. Model #	1NCY9
UNSPSC #	31161906
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.02
Availability	Typically in Stock
Catalog Page No.	3339
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

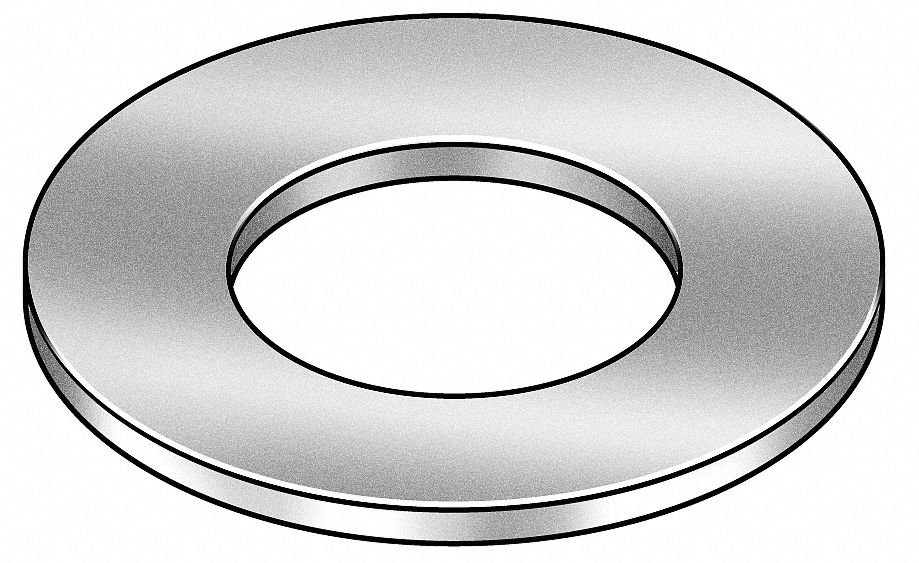

Disc Spring, Belleville, Steel, 0.317, PK 12

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Disc Spring
Type		Belleville
Material		High Carbon Steel
Min. Inside Dia.		0.317"
Max. Outside Dia.		0.625"
Thickness		0.022"
Overall Height		0.042"
Load @ Deflection (Lbs.)		59 to 81
Deflection @ Load		0.010"
Calculated Load @ Flat (Lbs.)		105
Meets/Exceeds		ASTM-A684
Package Quantity		12
