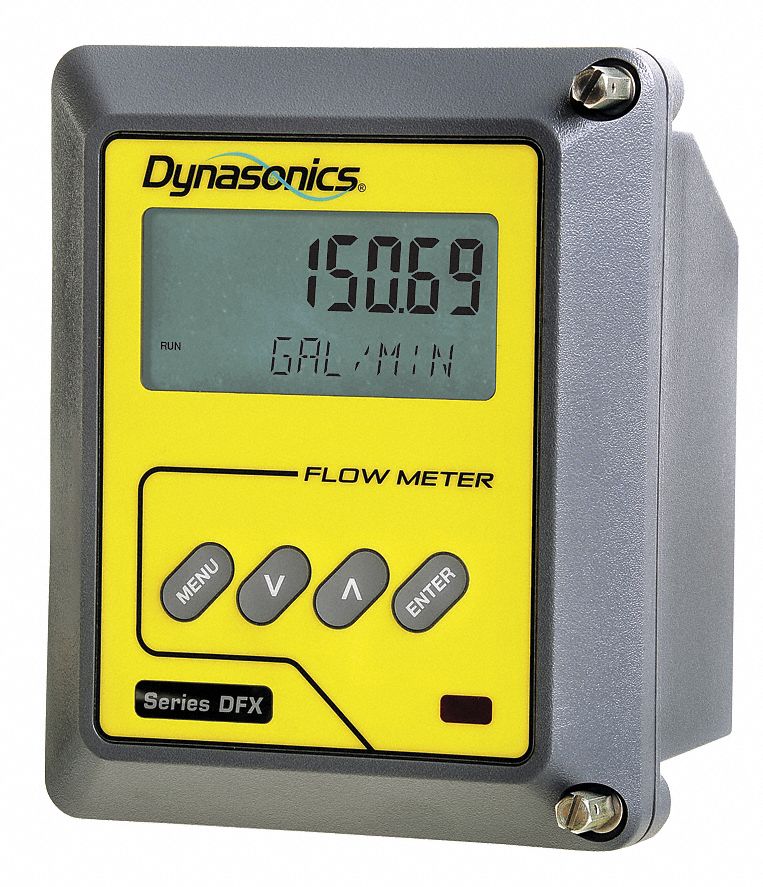

DYNASONICS Doppler Flow AC & Small Pipe Transducer

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Digital Doppler Ultrasonic Flow Transmitter DC & Small Pipe Transducer, Dedicated Doppler, Flow Velocity Range (FPS) .15-30, Flow Velocity Range (MPS) .05-9, Accuracy ( Percent) 2 Percent Full Scale, Display 2 Line, 8 Character LCD, Ambient Temp. Range -40 to 185 F, Electrical Connections Terminal, Analog Output Optional, Relay Output Optional, Enclosure Material Polycarbonate, Enclosure Rating Nema 4X, Power Source 12-28 VDC, Includes Transducer For Pipe Size 1/4 In. to 1 In. - 5XPN3

Grainger Item #	7HU46
Price (ea.)	$5,045.00
Brand	DYNASONICS
Mfr. Model #	7HU46
UNSPSC #	41112501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.81
Availability	Typically in Stock
Catalog Page No.	4118
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Digital Doppler Ultrasonic Flow Transmitter DC & Small Pipe Transducer
Type		Dedicated Doppler
Flow Velocity Range (FPS)		.15-30
Flow Velocity Range (MPS)		.05-9
Accuracy		2% Full Scale
Media Type		Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors
Display		2 Line, 8 Character LCD
Response Time		6 to 60 Seconds
Ambient Temp. Range		-40 to 185 F
Electrical Connections		Terminal
Analog Output		Optional
Relay Output		Optional
Enclosure Material		Polycarbonate
Enclosure Rating		Nema 4X
Power Source		12-28 VDC
Features		Synchronization Provision
Standards		General Purpose CE
Includes		Transducer For Pipe Size 1/4" to 1" - 5XPN3
Manufacturers Warranty Length		1 Year
