Electrical
>
Starters and Contactors
>
Mercury Displacement Contactors

DURAKOOL Mercury Contactor, 1P, 35A Res, 208/240VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Mercury Contactor, 1 Poles, Contact Form SPST, Coil Volts 208/240VAC, Voltage Rating 24-480VAC, Coil Current Rating 25/27mA, Full Load Amps-Resistive 35, Full Load Amps-Inductive 35, HP @ 1 Phase - 120V 2, HP @ 1 Phase - 240V 5, HP @ 3 Phase - 240V 7 1/2, HP @ 3 Phase - 480V 10, Pressure Connector Connection, Max No of Operations 20/Minute, Life Expectancy Greater than 2.5 Million Operations, Depth 2.25 In, Length 4.62 In, Width 2.00 In, Standards UL/CSA

Grainger Item #	6A860
Price (ea.)	$50.96
Brand	DURAKOOL
Mfr. Model #	1M35A208ACDV
UNSPSC #	39121518
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.7
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

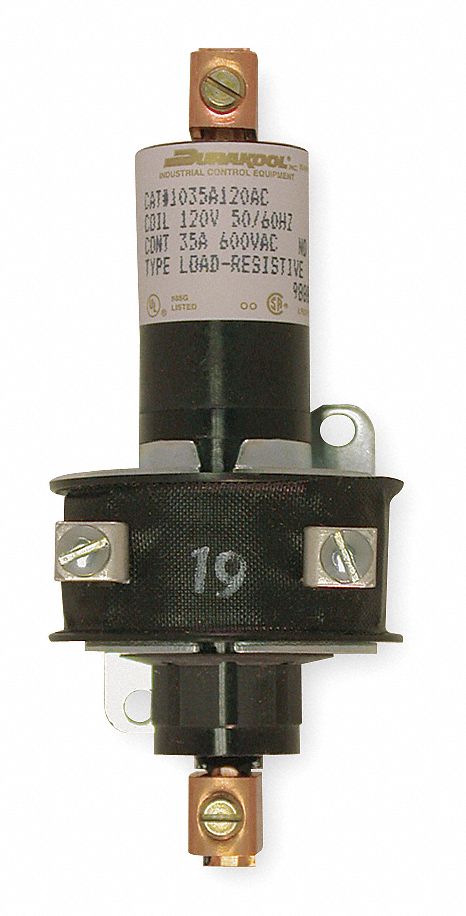

Mercury Contactor, 1P, 35A Res, 208/240VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Mercury Displacement Contactor
Contact Form		SPST
Number of Poles		1
Contact Amp Rating (Resistive)		35A
Contact Amp Rating (Inductive)		35A
Contact Material		Liquid Mercury
Mounting Position		Vertical
HP @ 1 Phase - 120V		2
HP @ 1 Phase - 240V		5
HP @ 3 Phase - 240V		7-1/2
HP @ 3 Phase - 480V		10
Coil Volts		208/240VAC
Coil VA Rating		25/27mA
Height		4.62"
Width		2.00"
Depth		2.25"
Standards		UL/CSA
