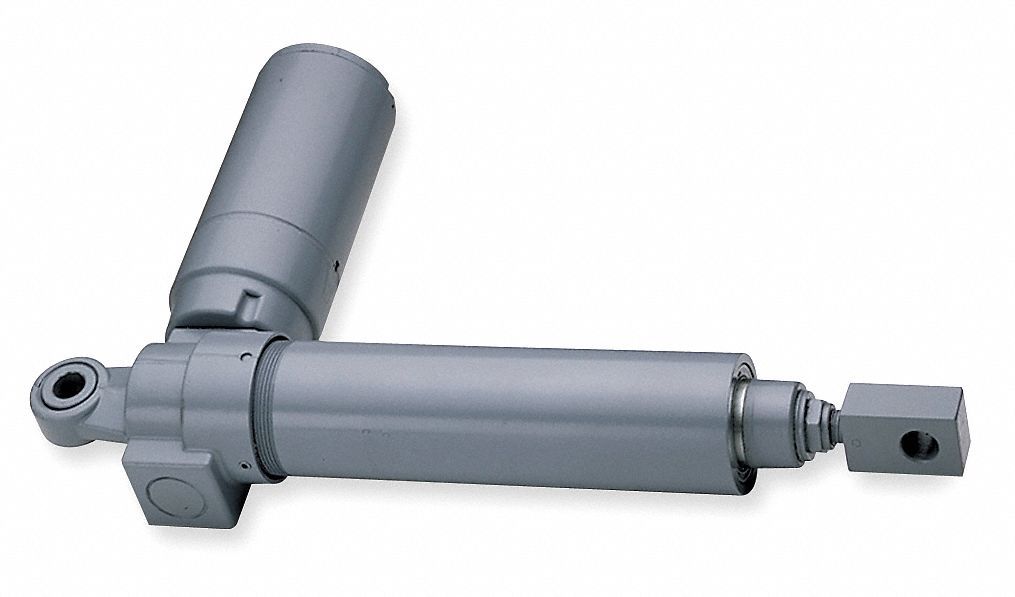

DUFF-NORTON Actuator, Linear

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Linear Actuator, Voltage Rating 12 VDC, Travel 12 Inches, Retracted Dimension 19.00 Inches, Speed 32 Inches per Minute, Rated Load 500 Pounds, Duty Cycle 18 Percentage, Full Load Current 22 Amps, Clutch

Grainger Item #	5ZC32
Price (ea.)	$534.00
Brand	DUFF-NORTON
Mfr. Model #	MPD6405-12
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.95
Availability	Typically in Stock
Catalog Page No.	228
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Linear Actuator
Rated Load (Lb.)		500
Voltage		12VDC
Full Load Amps		22
Retracted Dimension (In.)		19.00
Travel (In.)		12
Speed (In./Minute)		44
Duty Cycle (%)		18
Operating Frequency (Hz)		60
Ambient Temp. Max (C/F)		50C/120F
Enclosure Type		Totally Enclosed Nonventilated
Motor Type		Permanent Magnet
Thermal Protection		Auto
Capacitor Included		No
Capacitor Required		No
Feedback Signal		No
Clutch		Travel/Load Limit
Drive System		Gear
Gears		Steel
Screw Type		Steel
Nut		Bronze
Translating Tube		Zinc Plated Steel
Housing Material		Aluminum
Mounting Type		Double Clevis
