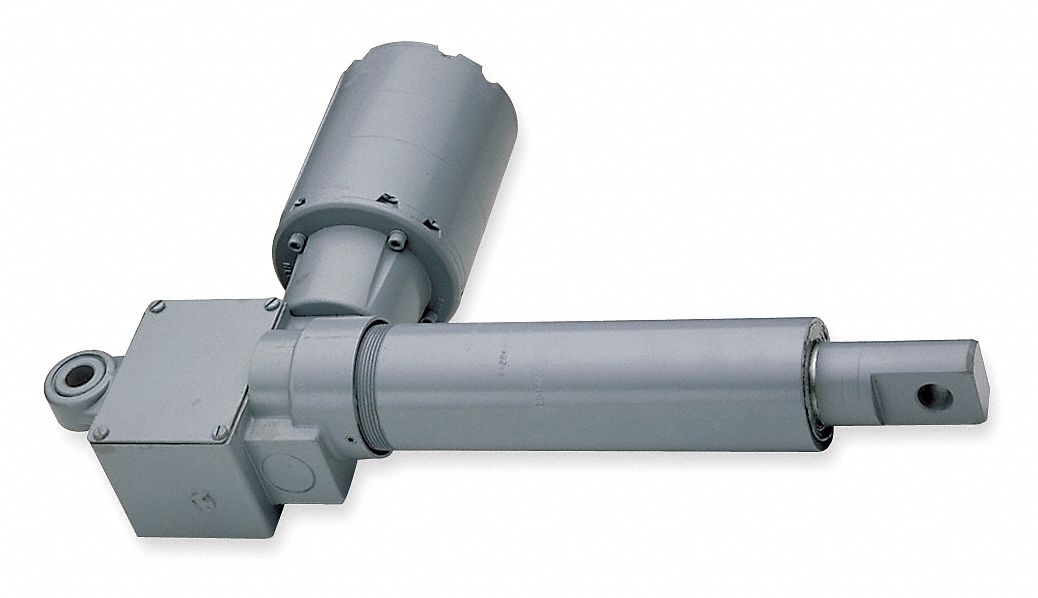

DUFF-NORTON Actuator, Linear

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Linear Actuator, Voltage Rating 115 VAC, Travel 12 Inches, Retracted Dimension 20.25 Inches, Speed 35 Inches per Minute, Rated Load 500 Pounds, Duty Cycle 28 Percentage, Full Load Current 2.2 Amps, Limit Switch

Grainger Item #	5ZC29
Price (ea.)	$699.50
Brand	DUFF-NORTON
Mfr. Model #	GMPB6905-12
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.0
Availability	Typically in Stock
Catalog Page No.	228
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Linear Actuator
Rated Load (Lb.)		500
Voltage		115VAC
Full Load Amps		2.2
Retracted Dimension (In.)		20.25
Travel (In.)		12
Speed (In./Minute)		35
Duty Cycle (%)		28
Operating Frequency (Hz)		60
Ambient Temp. Max (C/F)		50C/120F
Enclosure Type		Totally Enclosed Nonventilated
Motor Type		Permanent Split Capacitor
Thermal Protection		Auto
Capacitor Included		Yes
Capacitor Required		Yes
Feedback Signal		No
Limit Switch Type		Adjustable
Drive System		Gear
Gears		Steel
Screw Type		Steel
Nut		Bronze
Translating Tube		Zinc Plated Steel
Housing Material		Aluminum
Mounting Type		Double Clevis
Agency Compliance		UL,cUL or CSA
