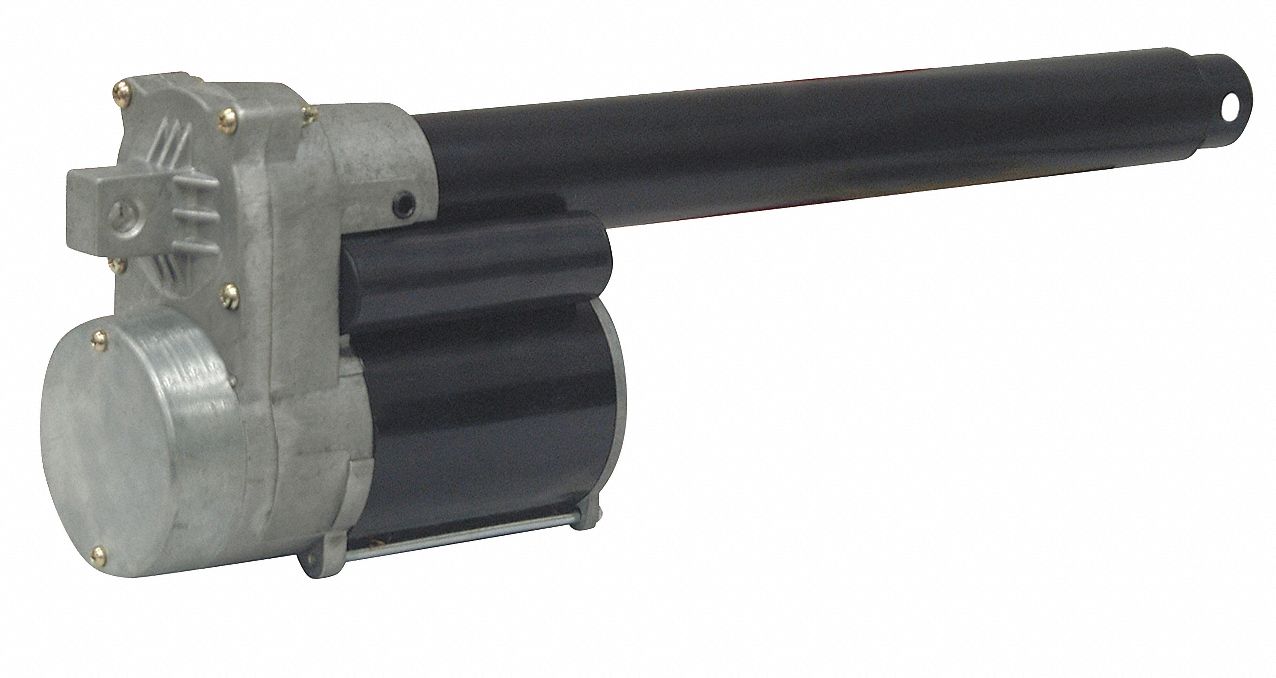

DUFF-NORTON Linear Actuator, 115VAC, 675 Lb Load

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Linear Actuator, Rated Load 675 Lb, Voltage 115VAC, 1.4 Full Load Amps, Retracted Dimension 11.4 In, Travel 4 In, Speed 9 In/Minute, Duty Cycle 17 %, Operating Frequency 60 Hz, Ambient Temp Max 65C/150F, Totally Enclosed Nonventilated, Permanent Split Capacitor, Thermal Protection Auto, Capacitor Included, Housing Male Clevis/Tube Mounting Type

Grainger Item #	1DAW3
Price (ea.)	$356.00
Brand	DUFF-NORTON
Mfr. Model #	LS28-1B5TN-04
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.64
Availability	Limited quantity available
Catalog Page No.	228
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Linear Actuator
Rated Load (Lb.)		675
Voltage		115VAC
Full Load Amps		1.4
Retracted Dimension (In.)		11.40
Travel (In.)		4
Speed (In./Minute)		9
Duty Cycle (%)		17
Operating Frequency (Hz)		60
Ambient Temp. Max (C/F)		50C/120F
Enclosure Type		Totally Enclosed Nonventilated
Motor Type		Permanent Split Capacitor
Thermal Protection		Auto
Capacitor Included		Yes
Feedback Signal		No
Limit Switch Type		Internal, Factory Set
Clutch		No
Drive System		Gear
Gears		Delrin
Screw Type		Steel
Nut		Delrin
Translating Tube		Painted Steel
Housing Material		Aluminum
Mounting Type		Housing Male Clevis/Tube
Agency Compliance		UL,cUL or CSA
