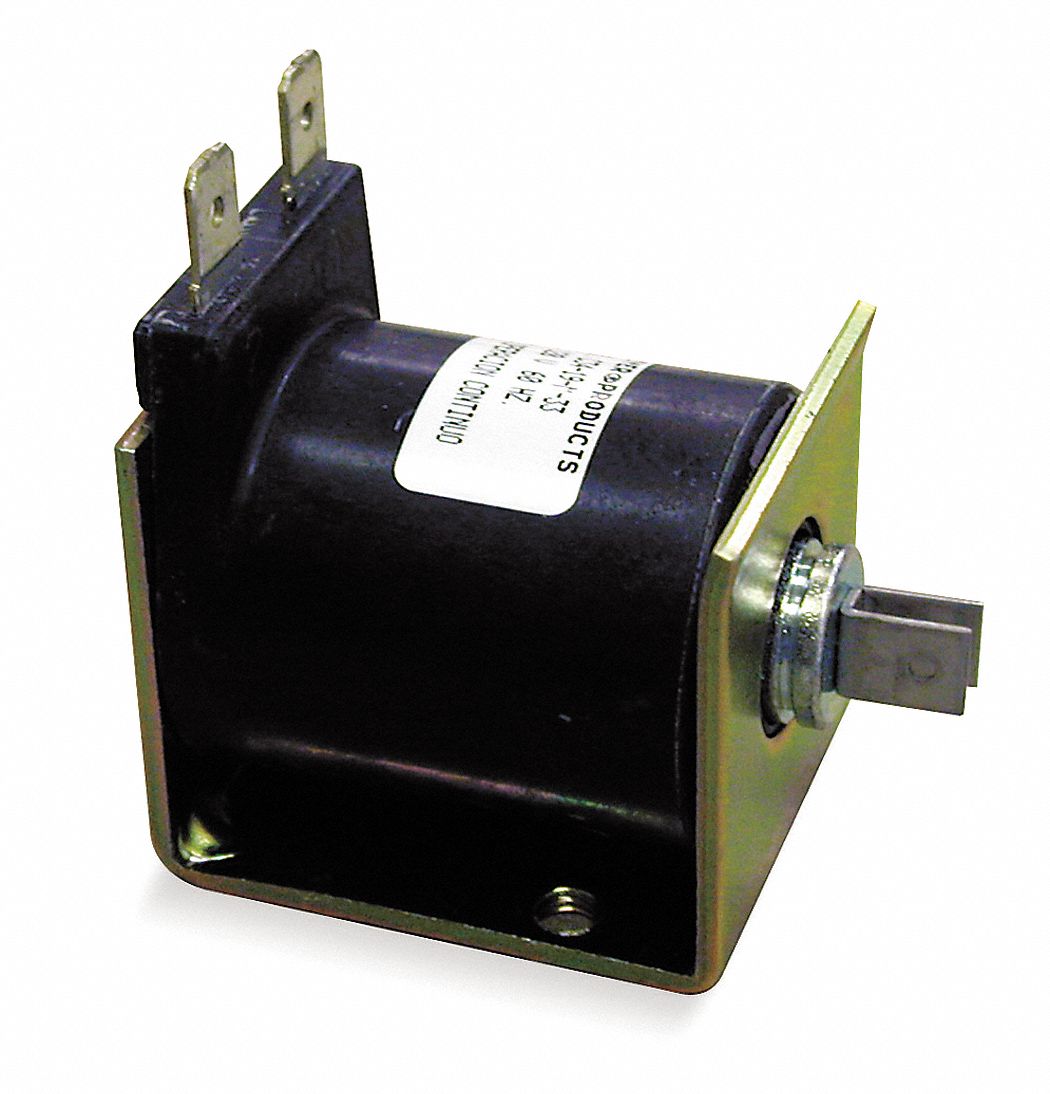

DORMEYER Solenoid, C Frame, Coil Volts, 24 DC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid, C Frame Type, Body Length 1 1/8 In, Coil Volts 24 DC, 0.15 Seated Amps, 3.6 Seated Watts, 151 Ohms Coil Resistance, Class A Coil Insulation, 0.15 Amps @ Max Stroke, Material of Construction Steel, Gravity Value 0.4 Oz, Pull @ 1/8-In Stroke 7.5 Oz, Pull @ 1/4-In Stroke 2 Oz, Pull @ 3/8-In Stroke 1.5 Oz, Width 3/4 In, Length 1 1/8 In, 3/16 In Quick Connect Terminals, Continuous Duty Cycle

Grainger Item #	1KEL5
Price (ea.)	$10.31
Brand	DORMEYER
Mfr. Model #	C8-271-M-36
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.11
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		C-Frame
Stroke Range		1/8 to 3/8"
Pull Force Range		1.5 to 4 oz.
Width (In.)		3/4
Depth (In.)		13/16
Length (In.)		1-1/8
Body Length (In.)		1-1/8
Coil Volts		24VDC
Seated Amps		0.15
Seated Watts		3.6
Coil Resistance (Ohms)		151 Ohms
Coil Insulation		Class A
Terminals		3/16" Quick Connect
Amps @ Max. Stroke		0.15
Duty Cycle		Continuous
Material of Construction		Steel
From Mounting Holes to Plunger Hole (In.)		3/4
Gravity Value (Oz.)		0.4
Standards		RoHs
