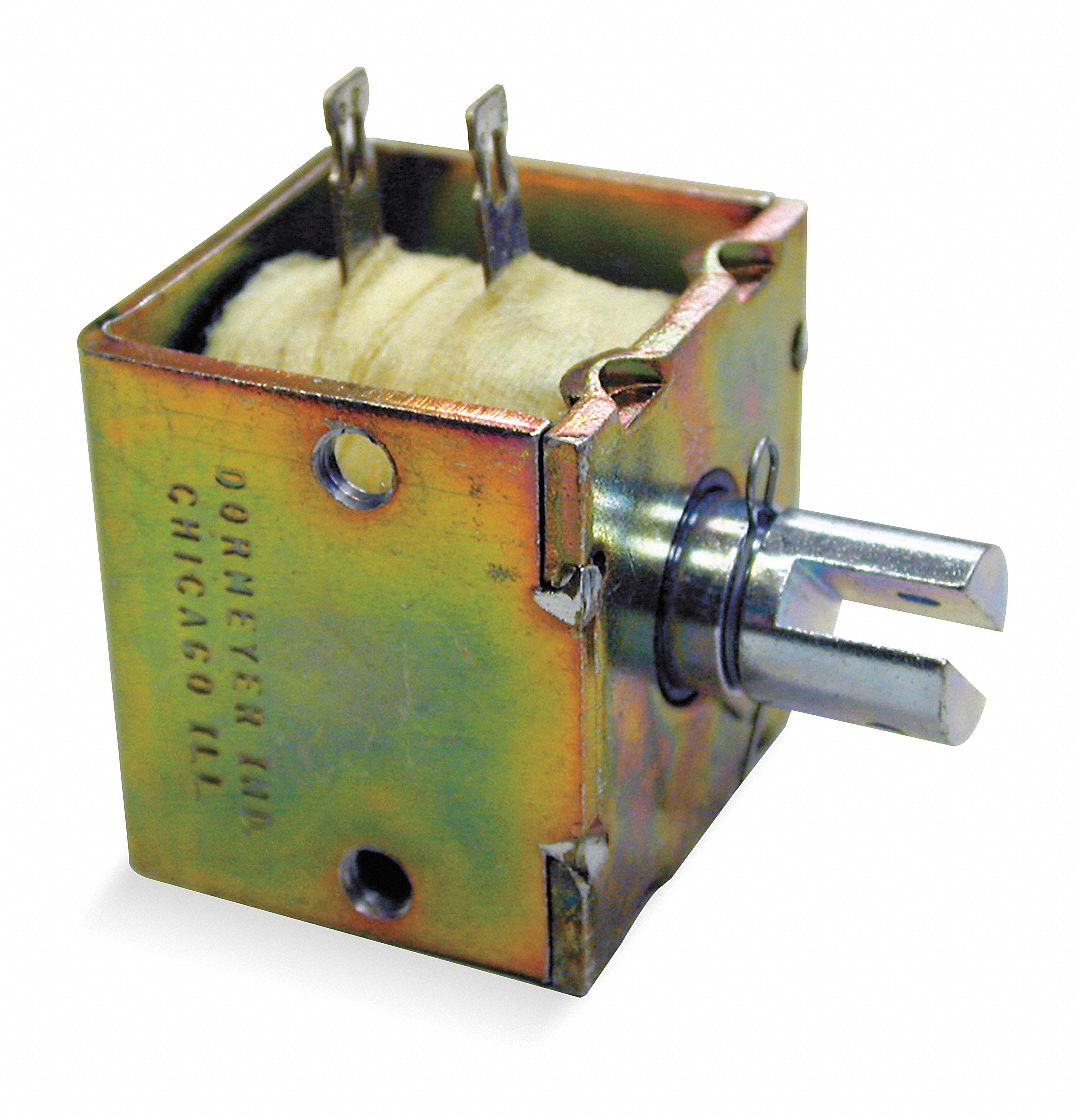

DORMEYER Solenoid, Box Frame, Coil Volts, 120 AC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid, Box Frame Type, Body Length 1 1/2 In, Coil Volts 120 AC, 0.15 Seated Amps, 18.6 Seated Watts, 73 Ohms Coil Resistance, Class A Coil Insulation, 1.05 Amps @ Max Stroke, Material of Construction Steel, Gravity Value 2.4 Oz, Pull @ 1/4-In Stroke 20 Oz, Pull @ 1/2-In Stroke 24 Oz, Pull @ 3/4-In Stroke 28 Oz, Width 1 5/8 In, Length 2 3/16 In, 3/16 In Quick Connect Terminals, Continuous Duty Cycle

Grainger Item #	1KEK8
Price (ea.)	$57.40
Brand	DORMEYER
Mfr. Model #	B4HD-1-M-36
UNSPSC #	31251510
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.9
Availability	Typically in Stock
Catalog Page No.	396
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid
Type		Box Frame
Stroke Range		1/4 to 3/4"
Pull Force Range		28 to 20 oz.
Width (In.)		1-5/8
Depth (In.)		1-5/8
Length (In.)		2-3/16
Body Length (In.)		1-1/2
Coil Volts		120VAC
Seated Amps		0.15
Seated Watts		18.6
Coil Resistance (Ohms)		73
Coil Insulation		Class A
Terminals		3/16" Quick Connect
Amps @ Max. Stroke		1.05
Duty Cycle		Continuous
Material of Construction		Steel
From Mounting Holes to Plunger Hole (In.)		2-1/8
Gravity Value (Oz.)		2.4
Standards		RoHs
